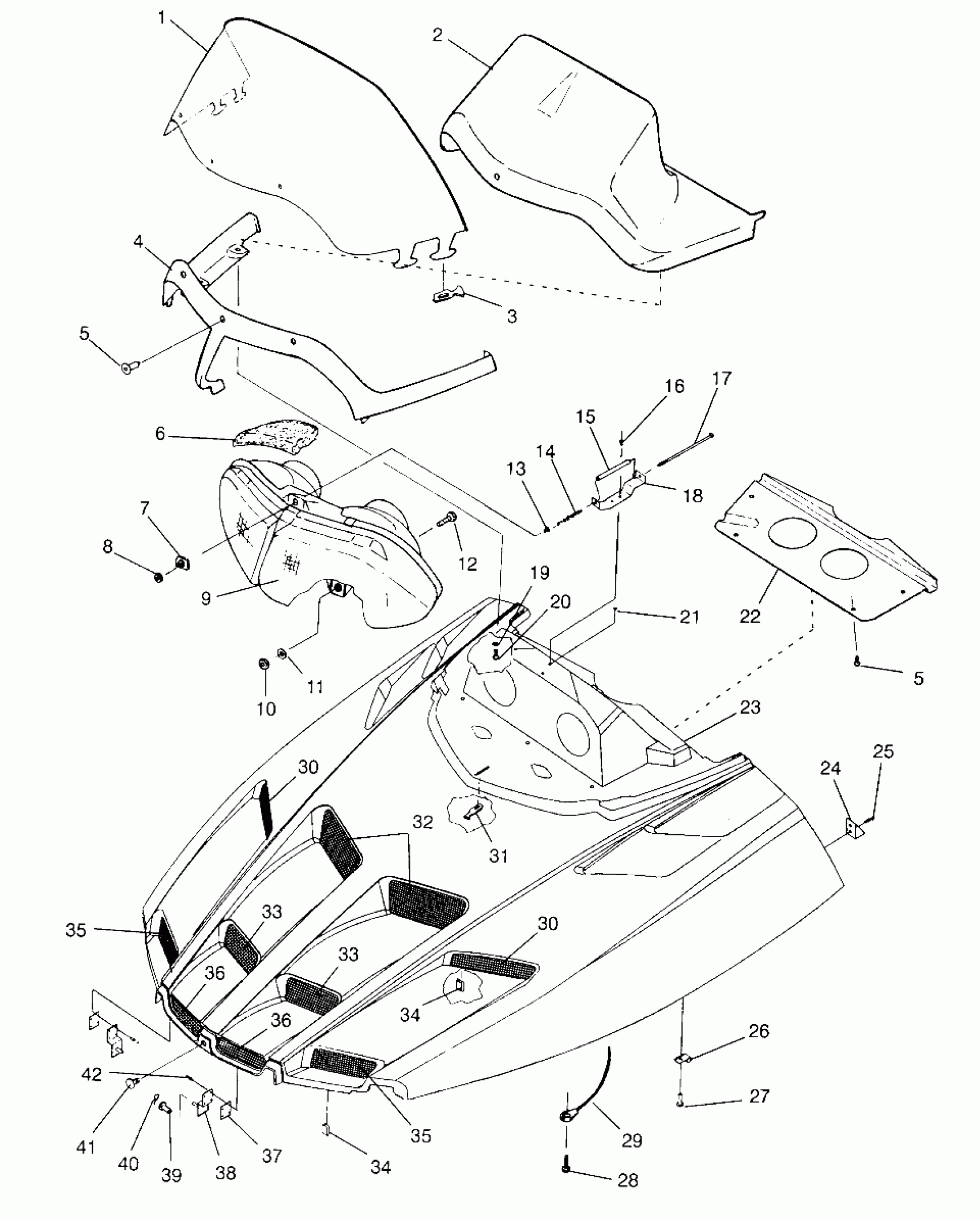

Polaris STORM - 0965782 HOOD - E965782 (4931593159A012) Diagram
#
1
WNDSHLD,LOW,SMOKE(AGR) (Storm, RMK)
5432266
Unavailable
1
WNDSHLD,CLR,STD,AGR. (SKS)
5432267
Unavailable
2
HOUSING,INST.
5431780-070
Unavailable
3
RETAINER,WINDSHIELD,(10)
5410970
$1.49
4
RETAINER,W/S,BLK.MET. Substituted by 5432573-177
5431785-177
Unavailable
5
RIVET,PLASTI-LOC.(50)
7621509
$1.49
5
RIVET,PLASTI-LOC.(50)
7621509
$1.49
6
FOAM-HEADLIGHT
5811094
Unavailable
7
NUT,H/L.PIVOT
5431901
Unavailable
8
NUT-WELL(10)
7541920
Unavailable
9
BULB,QUARTZ.H/L,INDY
2870448
$24.99
9
H/L ASM. (Incl. Bulbs)
2431009
$185.99
10
NUT(10)
7542124
Unavailable
11
WASHER(10) Substituted by 7558301
7555776
Unavailable
12
SCREW(10)
7512222
$2.39
13
WASHER,SPECIAL
5020811
Unavailable
14
SPRING,ADJ.H/L
7041397
Unavailable
15
SPACER,TUBE
5333296
Unavailable
16
RIVET(50) Substituted by 7661130
7661643
Unavailable
17
SCREW,ADJ.,H/L.(10)
4032072
Unavailable
18
BRKT,H/L ADJUST
5240757-067
Unavailable
19
BURR,RIVET(50)
7555904
$1.49
20
SCREW(10)
7512026
$1.49
21
WASHER,13/64X1/2X18GA,FL-Y
7558212
$1.49
22
PLENUM,AIR INTAKE,HD. Substituted by 5432665
5431991
Unavailable
23
HOOD,AGR,STORM,FOAM FOIL Substituted by 2631895-177 (Incl. Foam & Foil)
2631689-177
Unavailable
24
CUP, HOOD LATCH,(10)
5430733
$4.84
25
RIVET(50)
7621334
$1.49
26
CLAMP, RETAINER(10)
7080372
$3.99
27
CABLE-HOOD RETAINER
7080569
Unavailable
28
SCREEN,LH,SIDEUPP.LOUVER Substituted by 5241146-067
5241145-067
Unavailable
28
SCREEN,RH,SIDEUPP.LOUVER
5241146-067
Unavailable
29
RETAINER-TAB,(10)
5411075
Unavailable
30
SCREEN,RH,CTR,UPP.LOUVER
5241142-067
$19.83
30
SCREEN,LH,CTR,UPP.LOUVER Substituted by 5241142-067
5241141-067
Unavailable
30
SCREEN,RH,CTR,UPP.LOUVER
5241142-067
$19.83
30
SCREEN,LH,CTR,UPP.LOUVER Substituted by 5241142-067
5241141-067
Unavailable
31
SCREEN,LH,CTR,MID.LOUVER Substituted by 5241140-067
5241139-067
Unavailable
31
SCREEN,CTR,MID.LOUVER
5241140-067
Unavailable
32
SPEEDCLIP,'U'TYPE(10)
7670082
Unavailable
33
SCREEN,RH,SIDELOW.LOUVER
5241144-067
$16.35
33
SCREEN,LH,SIDELOW.LOUVER Substituted by 5241144-067
5241143-067
Unavailable
33
SCREEN,RH,SIDELOW.LOUVER
5241144-067
$16.35
33
SCREEN,LH,SIDELOW.LOUVER Substituted by 5241144-067
5241143-067
Unavailable
34
SCREEN,LOUVER,CTR.LOW.
5241138-067
Unavailable
34
SCREEN,LOUVER,CTR.LOW.
5241138-067
Unavailable
35
PLATE,HINGE,BLK.
5211536-067
$5.75
35
PLATE,HINGE,BLK.
5211536-067
$5.75
36
HINGE,UPPER,LH
1012246-067
$15.08
36
HINGE,UPPER,RH
1012247-067
Unavailable
36
HINGE,UPPER,LH
1012246-067
$15.08
36
HINGE,UPPER,RH
1012247-067
Unavailable
37
BUSHING, HINGE
5431884
Unavailable
38
PIN,HITCH(10)
7661644
$2.39
39
MOUNT,CABLE,TIE(10)
7080589
Unavailable
