FRONT TORQUE ARM Storm 0965782, Storm SKS 0965582, Euro Storm E965782, Euro (4931593159C003)

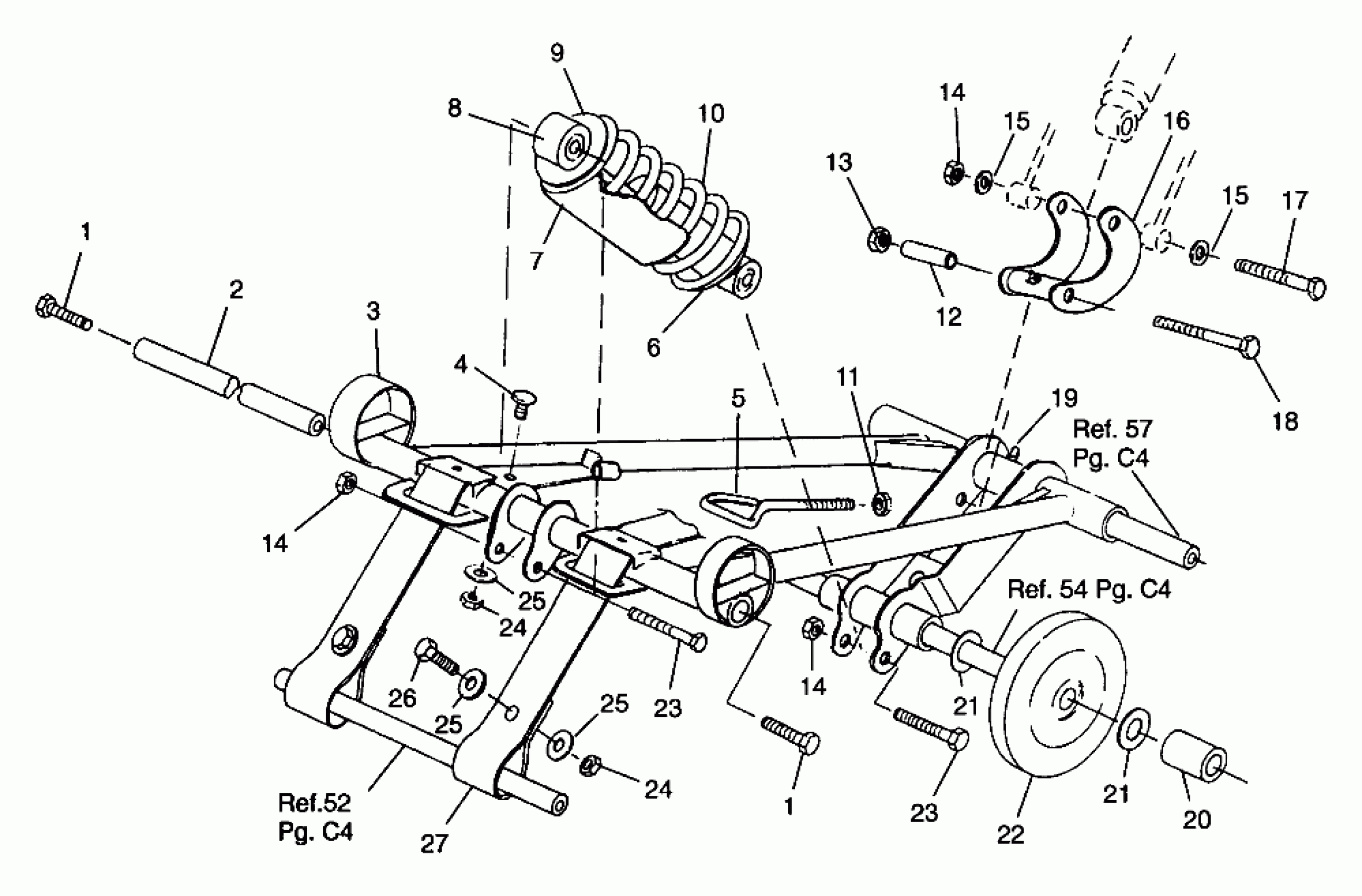

Polaris STORM - 0965782 FRONT TORQUE ARM Storm 0965782, Storm SKS 0965582, Euro Storm E965782, Euro (4931593159C003) Diagram
#
Description
Price
1
BOLT,NYLOC,BLACK(10) Substituted by 7515432
7515493
Unavailable
1
BOLT,NYLOC,BLACK(10) Substituted by 7515432
7515493
Unavailable
2
SHAFT, MTG, REAR
5020570
Unavailable
3
ARM,F.TORQUE Substituted by 1541139-067 (SKS)
1540984-067
Unavailable
3
ARM,FR.TORQUE Substituted by 1541140-067 (Storm, RMK)
1540973-067
Unavailable
4
BOLT(10) (Storm, RMK)
7512377
$4.79
5
BOLT,EYE (Storm, RMK)
7010050
Unavailable
6
RETAINER, SPRING BODY
5020617
Unavailable
7
SHIELD-SPRING
5430671
$24.27
8
SHOCK,FR.TRACK,FOX
7041402
Unavailable
9
RETAINER,SPRING,SLOTTED
5020618
$24.99
10
SPRING,BLACK,COMP.
7041253-067
$95.22
11
NUT-5/16-18 NYLOK-Y
7542324
$1.49
12
SPACER (Storm)
5333028
$1.59
13
NUT LOCK(10)
7542411
$3.19
14
NUT LOCK(10)
7542403
$3.99
14
NUT LOCK(10)
7542403
$3.99
14
NUT LOCK(10)
7542403
$3.99
15
WASHER-.390X.750X.020-WAVE-Y (Storm)
7555795
$1.49
15
WASHER-.390X.750X.020-WAVE-Y (Storm)
7555795
$1.49
16
ARM,SHOCK (Storm)
1540942-067
Unavailable
17
BOLT(10) (Storm)
7515438
$4.79
18
BOLT(10) (Storm)
7515472
$2.39
19
ZERK,FITTING,THREADED(10)
7080433
$1.49
20
SPACER, OUTER
5332784
Unavailable
21
MACHINERY BUSHING(10)
7556301
$3.19
21
MACHINERY BUSHING(10)
7556301
$3.19
22
Asm., Bogie Wheel (See Pg. C4, Ref. 26)
-------
Unavailable
23
BOLT(10)
7515415
$1.49
23
BOLT(10)
7515415
$1.49
24
NUT LOCK(10)
7542321
$1.49
24
NUT LOCK(10)
7542321
$1.49
25
WASHER(10)
7555716
$1.59
25
WASHER(10)
7555716
$1.59
25
WASHER(10)
7555716
$1.59
26
BOLT(10)
7515307
$3.99
27
STRAP,LIMITER,FRONT (Storm, RMK)
5411045
Unavailable
27
STRAP,LIMITER,TRACK (SKS)
5410992
Unavailable
