FRONT SUSPENSION and SKI Storm 0965782, Storm SKS 0965582, Euro Storm E9657 (4931593159B004)

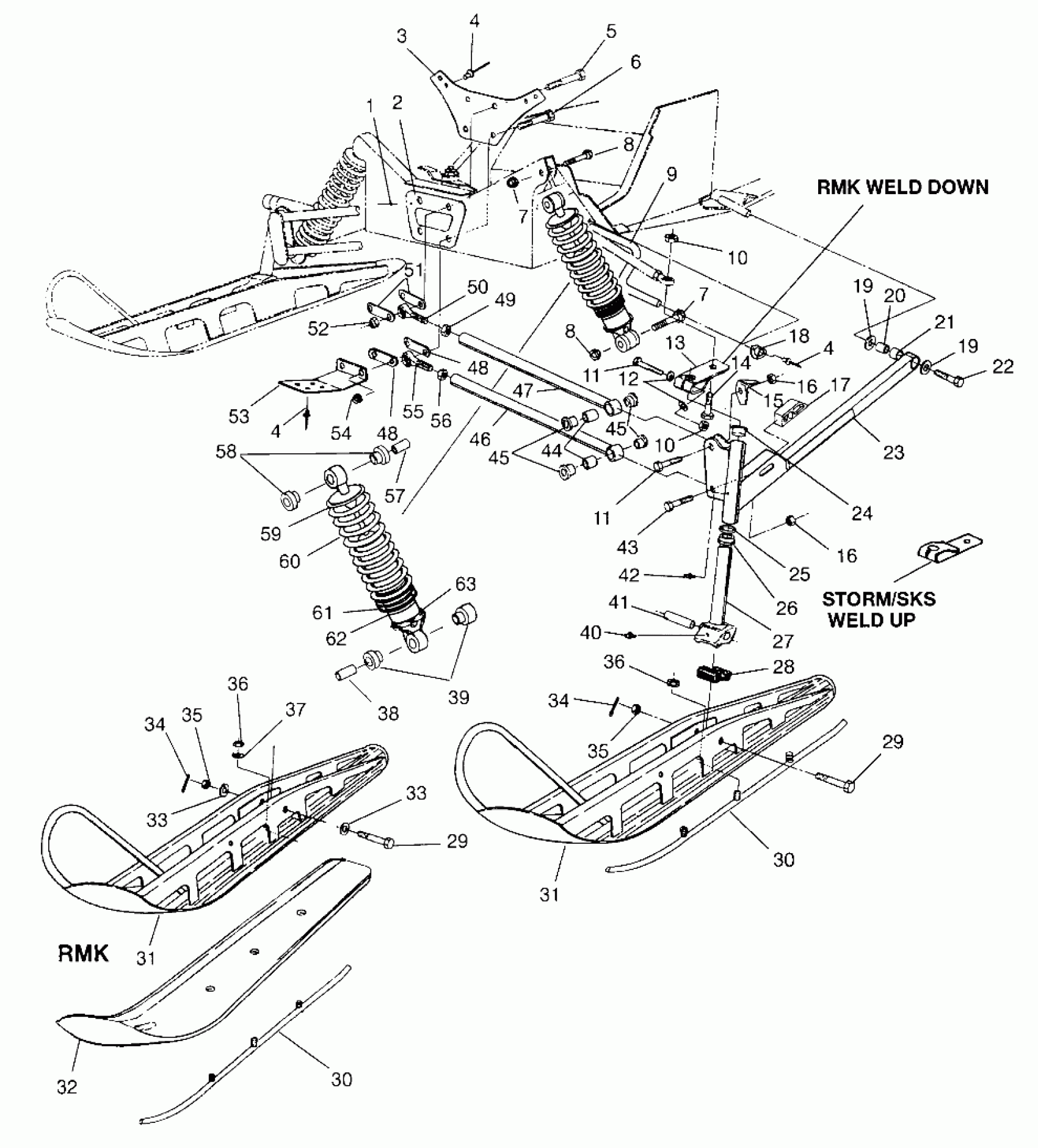

Polaris STORM - 0965782 FRONT SUSPENSION and SKI Storm 0965782, Storm SKS 0965582, Euro Storm E9657 (4931593159B004) Diagram
#
1
RIVET-3/16-.090-.290
7661637
$1.49
2
BRACE,BLKHD/STRG,BLK.
5211589-067
Unavailable
3
REINF,R.SHOCK MT.PLATE
5241395-067
$3.46
4
RIVET(50) Substituted by 7661130
7661643
Unavailable
4
RIVET(50) Substituted by 7661130
7661643
Unavailable
4
RIVET(50) Substituted by 7661130
7661643
Unavailable
5
BOLT(10)
7512551
Unavailable
6
BOLT(10)
7512656
$6.23
7
BOLT(10) Substituted by 7515415
7515515
Unavailable
7
BOLT(10) Substituted by 7515415
7515515
Unavailable
8
NUT, NYLOC(10)
7542453
Unavailable
8
NUT, NYLOC(10)
7542453
Unavailable
9
BAR,SWAY,BLACK (RMK)
5224237-067
Unavailable
9
BAR,SWAY,BLK. (Storm) (SKS)
5224616-067
Unavailable
10
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
10
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
11
BOLT(10) Substituted by 7517583
7515491
Unavailable
11
BOLT(10) Substituted by 7517583
7515491
Unavailable
12
WASHER(10) Substituted by 7555832
7555851
Unavailable
13
Arm, Steering
5220326-067
Unavailable
14
BOLT Substituted by 7512404
7515490
Unavailable
15
STOP,STRG,RH,BLK.
5222875-067
Unavailable
15
STOP,STRG,LH,BLK.
5222874-067
Unavailable
16
NUT, FLEXLOC(10) Substituted by 7542411
7542452
Unavailable
16
NUT, FLEXLOC(10) Substituted by 7542411
7542452
Unavailable
17
SLIDE-SWAYBAR (RMK)
5410384
Unavailable
17
SLIDE,(FR.SUSP.) (Storm, SKS)
5410385
Unavailable
18
BUSHING-SWAYBAR (RMK)
5410383
Unavailable
18
BUSHING,SWAYBAR (Storm, SKS)
5410386
Unavailable
19
WASHER(10)
7555721
$1.49
19
WASHER(10)
7555721
$1.49
20
TUBE,TRAILING ARM
5010187
Unavailable
21
PIVOT-TRAILING ARM
5410382
Unavailable
22
BOLT(10)
7512557
$7.60
23
ARM,TRLG,LH. (RMK) (Incl. 20, 21)
1822427
Unavailable
23
ARM,TRLG,RH (RMK) (Incl. 20, 21)
1822428
Unavailable
23
ARM,TRLG,LH. (Storm, SKS) (Incl. 20, 21)
1822210
Unavailable
23
ARM,TRLG,RH. (Storm, SKS) (Incl. 20, 21)
1822211
Unavailable
24
BUSHING-FLANGE
3573909
$2.39
25
WASHER SPECIAL(10)
7556509
$1.59
26
BUSHING,SPINDLE HSG,(10)
3574208
$3.19
27
SPINDLE, BLK.
6230073-067
Unavailable
28
STOP, RUBBER
5521276
Unavailable
29
BOLT(10) (Storm, SKS)
7515462
$8.79
29
BOLT(10) (RMK)
7515541
Unavailable
29
BOLT(10) (Storm, SKS)
7515462
$8.79
29
BOLT(10) (RMK)
7515541
Unavailable
30
SKAG,PR.,CARBIDE (Pair) (Storm, SKS)
2870693
$69.99
30
60 DEG,4"CARBIDE(STEEL SKI)
2871288
$79.99
30
SKAG,PR.,CARBIDE (Pair) (Storm, SKS)
2870693
$69.99
30
60 DEG,4"CARBIDE(STEEL SKI)
2871288
$79.99
31
SKI WELD, BLK (Storm, SKS)
1820332-067
Unavailable
31
SKI, BLK. [No Longer Available] (RMK)
1820362-067
Unavailable
31
SKI WELD, BLK (Storm, SKS)
1820332-067
Unavailable
31
SKI, BLK. [No Longer Available] (RMK)
1820362-067
Unavailable
32
SKI SKINS, RED Substituted by 2871144-136 (Red) (RMK)
2871146
Unavailable
33
WASHER, WROUGHT(10) Substituted by 7555801
7555928
Unavailable
33
WASHER, WROUGHT(10) Substituted by 7555801
7555928
Unavailable
34
PIN, COTTER(10) Substituted by 7661205
7661209
Unavailable
34
PIN, COTTER(10) Substituted by 7661205
7661209
Unavailable
35
NUT, CASTLE(10) Substituted by 7542438
7542457
Unavailable
35
NUT, CASTLE(10) Substituted by 7542438
7542457
Unavailable
36
NUT-5/16-18 NYLOK-Y
7542324
$1.49
36
NUT-5/16-18 NYLOK-Y
7542324
$1.49
37
WASHER(10)
7571628
Unavailable
38
BUSHING, (1.16 IN.)
5020613
Unavailable
39
BUSHING,SHOCK
5431727
Unavailable
40
FITTING,LUBE.W/BALL CK.(10)
7080306
$3.19
41
BUSHING,PIVOT,(10)
5010158
$19.99
42
ZERK,FITTING,THREADED(10)
7080433
$1.49
43
BOLT(10) Substituted by 7515540
7515492
$4.62
44
BUSHING-RADIUS ROD,(10)
5010127
$7.99
45
BUSH,RAD.ROD PIVOT,OUT.
5431486
$3.19
45
BUSH,RAD.ROD PIVOT,OUT.
5431486
$3.19
46
ROD,RAD.LOW. (RMK)
1822123-067
Unavailable
46
ROD,RAD,LOW,WIDE,BLK,SP Substituted by 2202105 (Storm, SKS)
1822139-067
Unavailable
47
ROD,RAD.UP. (RMK)
1822121-067
Unavailable
47
ROD,RAD,UP.BLK. Substituted by 2202104 (Storm, SKS)
1822138-067
Unavailable
48
STRAP,SPACER BOTTOM
5211345
$12.99
48
STRAP,SPACER BOTTOM
5211345
$12.99
49
NUT JAM(10)
7542520
$2.39
50
ROD END, RH Substituted by 7061010
7060155
Unavailable
51
STRAP,SPACER TOP
5211344
$7.27
52
NUT, LOCK,(10)
7542503
$10.39
53
SUPPORT,PANBRAKE,LOW.
5240699-067
Unavailable
54
NUT FLEX,(10)
7542703
Unavailable
55
ROD END,RH Substituted by 7061011
7060156
Unavailable
56
NUT-JAM(10)
7542711
$2.39
57
BUSHING, (1.34 IN.)
5020612
Unavailable
58
BUSHING,SHOCK,.220 Substituted by 1500137
5431540
$24.99
59
RETAINER,SPRING,SLOTTED
5020618
$24.99
60
SPRING,COMP,BLK,
7041358-067
Unavailable
61
RETAINER,CAM
5630491
Unavailable
62
CAM,SHOCK
5630492
Unavailable
63
SHOCK,GAS,IFS,IFP,CAM,WHT. (Storm, SKS)
7041474
Unavailable
63
SHOCK,GAS,IFS (RMK) NOTE: See Page for Fox
7041490
$60.89
