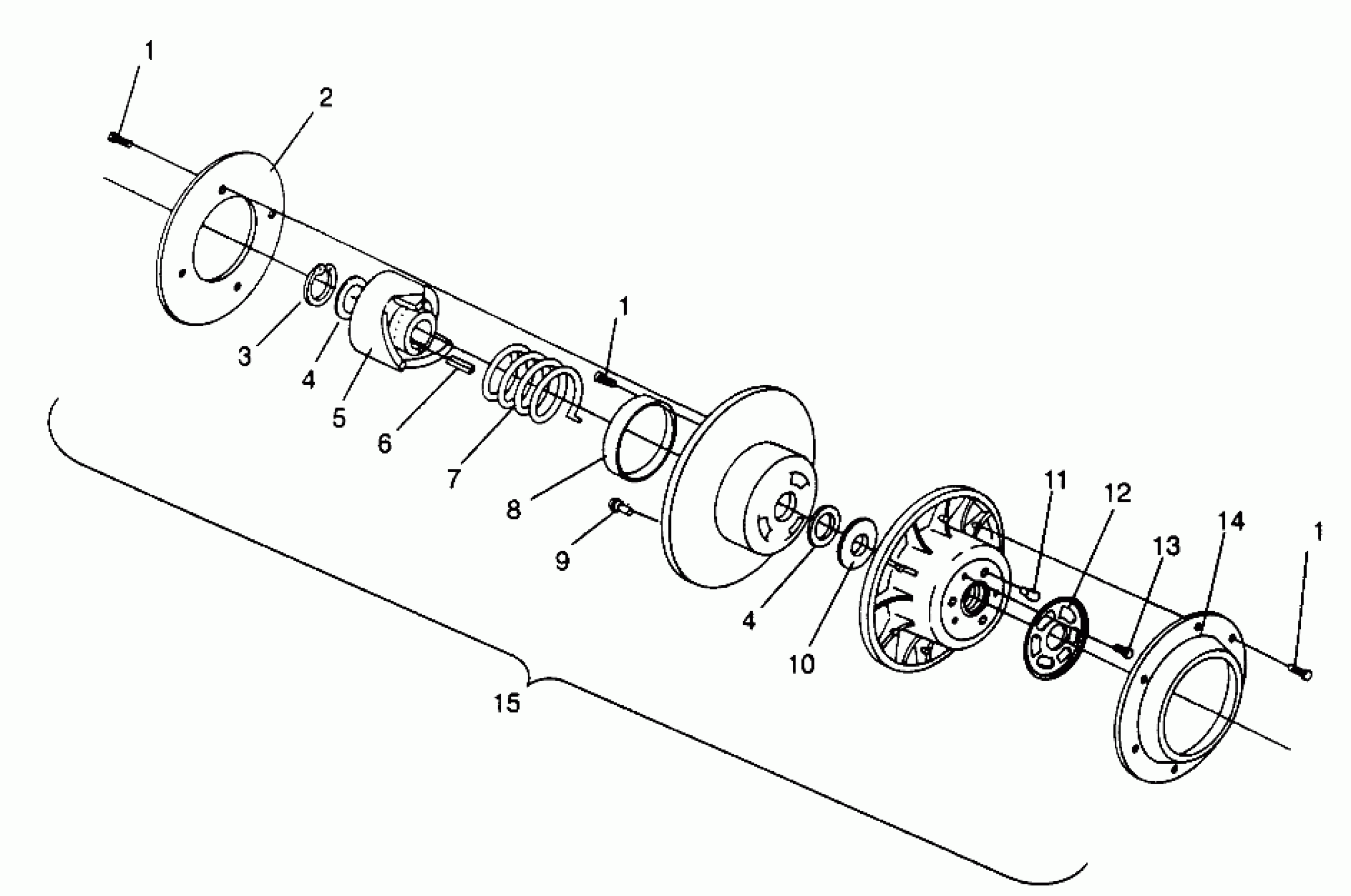

Polaris STORM - 0965782 DRIVEN CLUTCH ASSEMBLY Storm 0965782, Storm SKS 0965582, Euro Storm E96578 (4931593159C009) Diagram

#

Description
Price

1

SCREW(10)

7512048

Unavailable

1

SCREW(10)

7512048

Unavailable

1

SCREW(10)

7512048

Unavailable

2

PLATE

5210749

$30.99

3

RING,RETAINING(10)

7714804

$9.59

4

WASHER(10)

7556804

$1.49

4

WASHER(10)

7556804

$1.49

5

RAMP,DRIVEN,R3,MACH Substituted by 2900037

5131289

Unavailable

6

KEY SQUARE(10)

7721103

$5.65

7

SPRING,BLUE,DRIVEN CLUTCH (Blue)

7041296

Unavailable

8

BUSHING,D.U.

3569803

Unavailable

9

BUTTON-RAMP,(10)

5430466

$6.46

10

WASHER,DRIVE CLUTCH(10)

7555865

$6.39

11

PIN, CLUTCH

5020653

$34.99

12

CAM,DRIVEN,ADJUSTABLE

5222878

$29.03

13

SCREW(10)

7515133

$3.99

14

CAP DRIVEN

5230101

Unavailable

15

CLUTCH,DRIVEN,R3,W/ COVER (Incl. 1-14)

1322174

Unavailable
