DRIVE TRAIN ASSEMBLY Storm 0965782, Storm SKS 0965582, Euro Storm E965782, (4931593159C010)

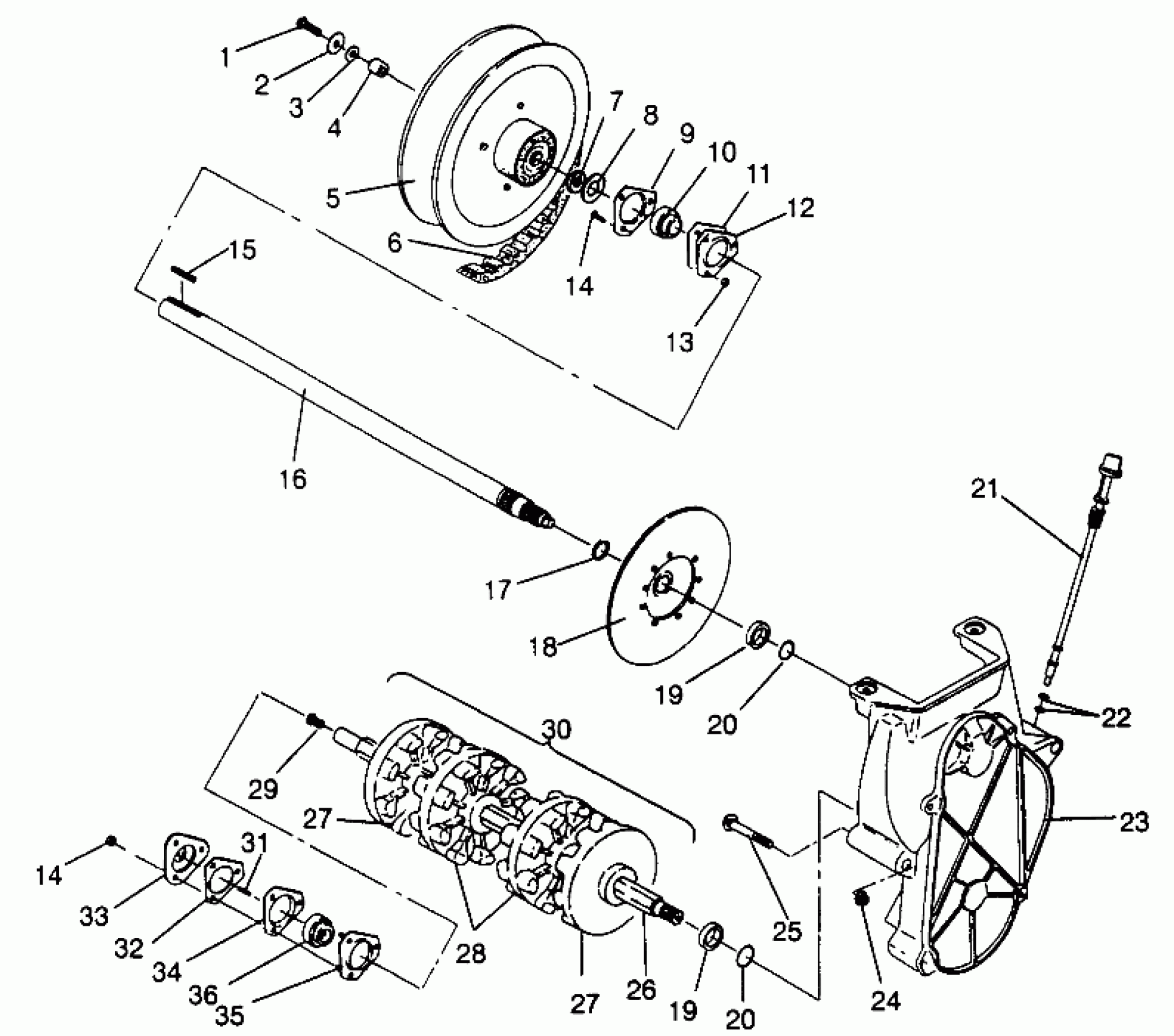

Polaris STORM - 0965782 DRIVE TRAIN ASSEMBLY Storm 0965782, Storm SKS 0965582, Euro Storm E965782, (4931593159C010) Diagram
#
1
BOLT(10)
7515369
$4.79
2
WASHER FLAT(10)
7555701
$3.99
3
WASHER(10)
7555734
Unavailable
4
SPACER
5020291
Unavailable
5
Asm., Driven Clutch (See Pg. C2, Ref 1)
-------
Unavailable
6
BELT, DRIVE(5)
3211065
$114.99
7
BUSHING(10)
7555864
$2.39
8
WASHER SPECIAL(10)
7556509
Unavailable
9
FLANGE RD,RELUBE W/ZERK
5241359
$32.37
10
BEARING,1"X52MM,SPHER.
3514523
Unavailable
11
GASKET,JACKSHAFT,BLK.
5811095
$2.41
12
FLANGETTE
5222751
$16.44
13
BOLT(10) Substituted by 7512377
7512394
Unavailable
14
NUT-5/16-18 NYLOK-Y
7542324
$1.49
14
NUT-5/16-18 NYLOK-Y
7542324
$1.49
15
KEY(10)
7721116
$12.94
16
JACKSHAFT ASM,LONG,PRESS,BLK (Incl. 17)
1332179-067
$228.56
17
RING, RETAINING(10)
7710422
$3.99
18
DISC ASM, BRAKE
1910086
Unavailable
19
SLEEVE, SEAL
5020588
$23.99
19
SLEEVE, SEAL
5020588
$23.99
20
O RING,(10)
5410613
$1.99
20
O RING,(10)
5410613
$1.99
21
DIPSTICK Substituted by 1332143
5431419
Unavailable
22
O-RING
5410675
$1.60
23
Chaincase, Top Mount Brake (See Pg. A23, Ref. 23)
-------
Unavailable
24
NUT(10)
7542423
$3.99
25
BOLT(10)
7515428
$4.79
26
SHAFT,DRIVE,H.S.PRSBRG.
6230091
Unavailable
27
SPROCKET, HALF,9T (1 Side)
5430993
Unavailable
27
SPROCKET, HALF,9T (1 Side)
5430993
Unavailable
28
SPROCKET, 9T
5430571
Unavailable
29
BUSHING METAL SPEEDO
3280019
$11.99
30
DRIVESHAFT ASM,HD,PRESS BRG Substituted by 1590258 (Incl. 26-29, 35, 36)
1590253
Unavailable
31
SQ. KEY SPEEDOMETER,(10)
3280017
$13.75
32
GASKET,DRIVE ADAPTOR,(10)
5830012
$2.41
33
ADAPTER,DRIVE,W/ZERK
3280116
$101.17
34
FLANGETTE Substituted by 5243529
5241178
$13.75
35
FLANGETTE ASM,,W/ SCREWS Substituted by 1012945
1012434
Unavailable
36
BEARING,1"X52MM,SPHER.
3514524
Unavailable
