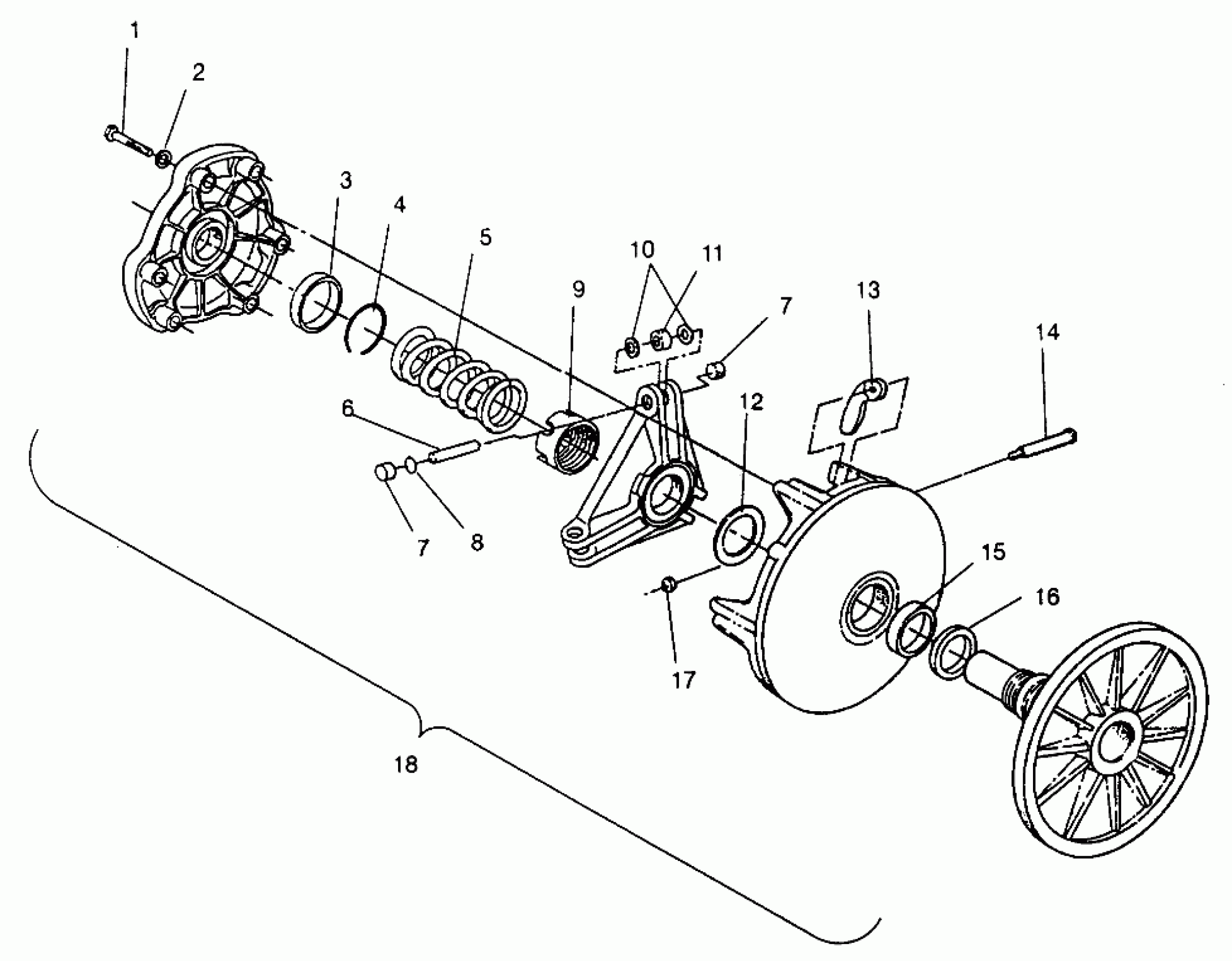

Polaris STORM - 0965782 DRIVE CLUTCH ASSEMBLY Storm 0965782, Storm SKS 0965582, Euro Storm E965782 (4931593159C008) Diagram

#

Description
Price

1

BOLT,(10)

7512265

$3.99

2

LOCK WASHER(10)

7552801

$1.59

3

BEARING, COVER,(10)

3576510

$9.59

4

RING-RETAINING,COVER

7710417

$1.49

5

SPRING-(BLUE) (Blue)

7041080

$56.65

6

PIN-ROLLER

5020422

$2.39

7

BUTTON, GUIDE,(10)

5430445

$6.39

7

BUTTON, GUIDE,(10)

5430445

$6.39

8

Kit - Shim, Drive Clutch

2200387

$24.27

9

NUT-JAM

5020425

$23.99

10

WASHER,MULTILUBE

5430945

$1.59

11

ASM-ROLLER AND BUSHING

1321622

$32.37

12

SPACER(10)

5210754

Unavailable

12

SPACER(10)

5210752

Unavailable

12

SPACER(10)

5210753

Unavailable

13

WT/BUSH.ASM,10-56(6) (10-56) (RMK)

1321684

$59.99

13

Weight/Bushing (10-60) (10-60) (Storm, SKS)

1321587

$40.46

14

PIN-WEIGHT,HARDENED,1/4X2.00

7515105

$13.75

15

SLEEVE, BEARING

3576502

$23.99

16

INSERT-MOVEABLE

5010188

$7.99

17

NUT FLEX LOC(10)

7541906

$3.19

18

KIT,CLUTCH UPDATE (Incl. 6-8, 10, 11, 14)

2200386

$161.89

18

CLUTCH,BASIC#54(DRIVE) Substituted by 1321722 (Less 5, 13)

1321653

Unavailable
