CYLINDER and MANIFOLD ASSEMBLY Storm 0965782, Storm SKS 0965582, Euro Storm (4931593159D001)

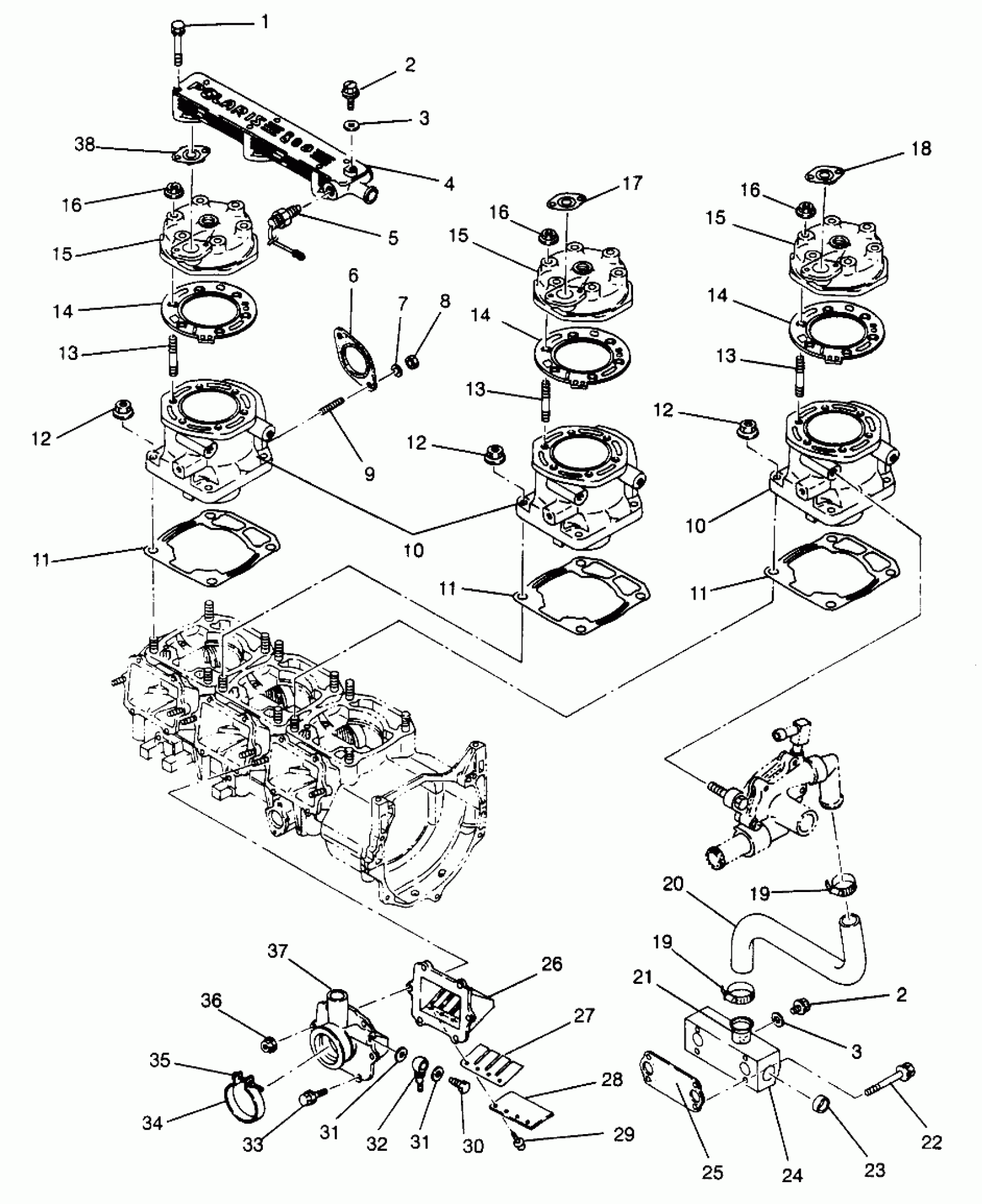

Polaris STORM - 0965782 CYLINDER and MANIFOLD ASSEMBLY Storm 0965782, Storm SKS 0965582, Euro Storm (4931593159D001) Diagram
#
1
BOLT&WASHER
3083729
$3.49
2
PLUG, AIR VENT Substituted by 7517266
3083350
Unavailable
2
PLUG, AIR VENT Substituted by 7517266
3083350
Unavailable
3
GASKET, ALUM,(10) Substituted by 7555998
3082758
$1.19
3
GASKET, ALUM,(10) Substituted by 7555998
3082758
$1.19
4
OUTLET,WATER MANIFOLD (Unpainted)
3085066
$149.99
4
GASKET,(O.W.M.)
3084688
Unavailable
5
SWITCH,THERMO. (93
3084651
Unavailable
6
GASKET,EXHAUST,NA(10) Substituted by 3086757
3084439
Unavailable
7
WASHER LOCK ,(10)
3080530
$3.19
8
NUT(10)
3080285
Unavailable
9
STUD,(10)
3085326
Unavailable
10
CYLINDER (Incl. 9, 13)
3085325
$569.99
10
CYLINDER (Incl. 9, 13)
3085325
$569.99
11
GASKET, CYLINDER
3084525
Unavailable
11
GASKET, CYLINDER
3084525
Unavailable
11
GASKET, CYLINDER
3084525
Unavailable
12
NUT-FLANGE(10)
3082911
$1.99
12
NUT-FLANGE(10)
3082911
$1.99
12
NUT-FLANGE(10)
3082911
$1.99
13
STUD
3084645
$6.63
13
STUD
3084645
$6.63
13
STUD
3084645
$6.63
14
GASKET,HEAD (RMK)
3085310
$16.95
14
GASKET,HEAD (Storm, SKS)
3085308
$37.19
14
GASKET,HEAD (RMK)
3085310
$16.95
14
GASKET,HEAD (Storm, SKS)
3085308
$37.19
14
GASKET,HEAD (RMK)
3085310
$16.95
14
GASKET,HEAD (Storm, SKS)
3085308
$37.19
15
HEAD, CYLINDER (Unpainted)
3085327
Unavailable
15
HEAD, CYLINDER (Unpainted)
3085327
Unavailable
15
HEAD, CYLINDER (Unpainted)
3085327
Unavailable
16
NUT-FLANGE(10)
3082910
$2.39
16
NUT-FLANGE(10)
3082910
$2.39
16
NUT-FLANGE(10)
3082910
$2.39
17
PLATE 2,(O.W.M.) (Center)
3084654
Unavailable
18
PLATE 1 (Mag. Side)
3085311
Unavailable
19
CLAMP, HOSE
3083394
Unavailable
19
CLAMP, HOSE
3083394
Unavailable
20
HOSE, MAIN
3084665
Unavailable
21
PIPE 3,WATER
3084530
Unavailable
22
BOLT(10)
3082030
$3.97
23
PLUG,CYL.HEAD
3084529
Unavailable
24
MANI.,INLET WATER (Incl. 21, 23)
3084528
Unavailable
25
GASKET,WATER MANI.INLET
3084531
$0.75
26
VALVE ASM,REED (Incl. 27-29)
3084536
$95.19
27
VALVE, REED
3084563
$19.83
28
Stopper
3084564
$19.03
29
SCREW, REED
3084565
$3.29
30
BOLT-BANJO
3083137
Unavailable
31
WASHER(10) Substituted by 7555998
3083138
Unavailable
31
WASHER(10) Substituted by 7555998
3083138
Unavailable
32
VALVE, CHECK
3083894
Unavailable
33
Bolt, Flange
3084126
Unavailable
34
BAND ASM. (Incl. 35)
3083166
$19.84
35
SCREW,(10)
3081497
$2.39
36
NUT, FLANGE(10)
3083856
$2.39
37
ADAPTER, COMPL.
3084652
Unavailable
38
PLATE 3,(O.W.M.) (PTO Side) NOTE: Order Polaris "P" Number (P093 Fire Red) from Midwest Industrial Coatings (612-934-8252). Mix as directed.
3084655
Unavailable
