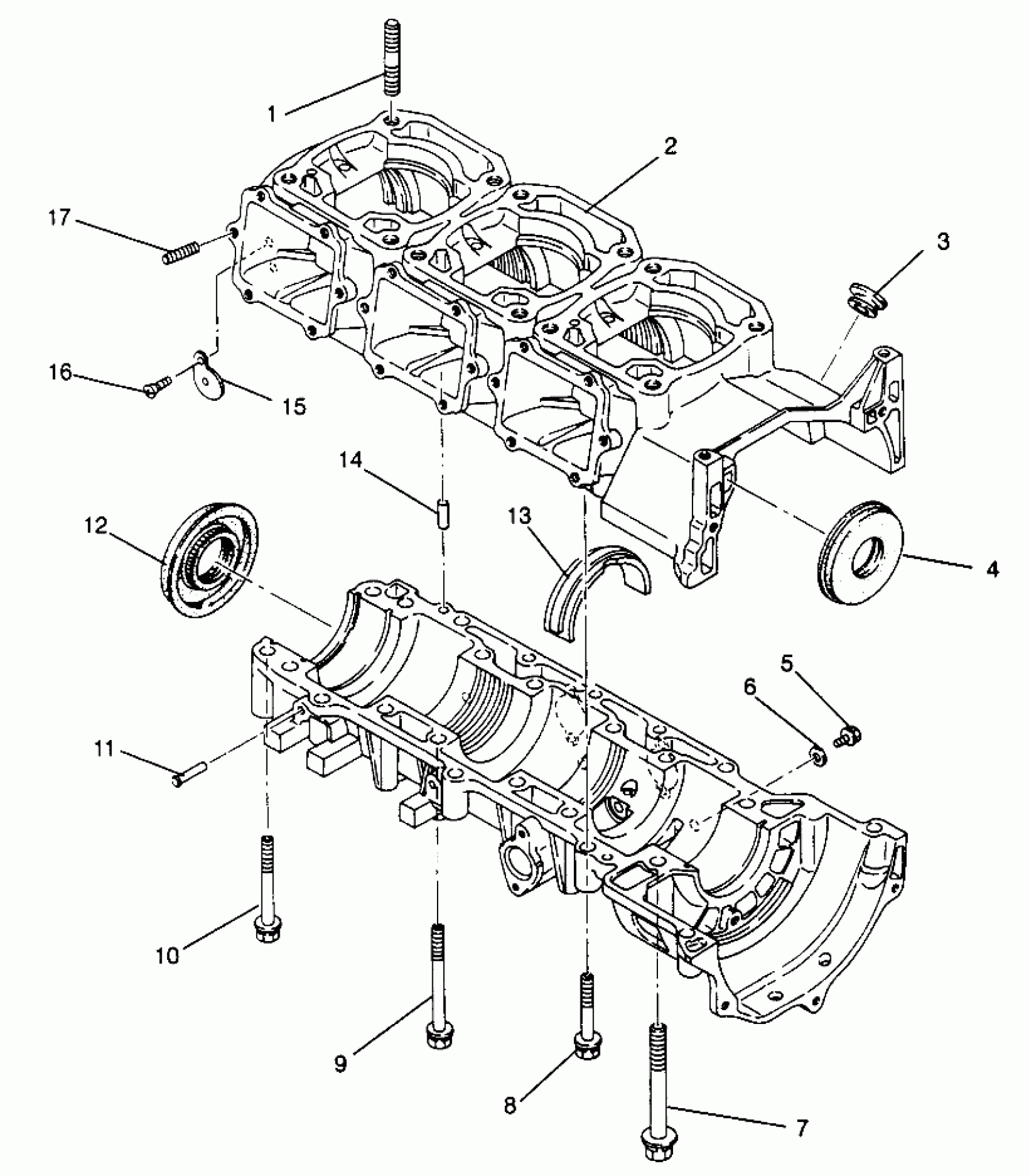

Polaris STORM - 0965782 CRANKCASE ASSEMBLY Storm 0965782, Storm SKS 0965582, Euro Storm E965782, E (4931593159C014) Diagram

#

Description
Price

1

Stud

3084519

$12.39

2

CRANKCASE (Incl. 1, 7-11, 14, 17)

3085306

$1,054.99

3

GROMMET

3082875

$7.99

4

SEAL, OIL

3240041

Unavailable

5

BOLT, FLANGE(10) Substituted by 3087035

3083568

$3.85

6

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

7

BOLT&WASHER ASM.

3084521

Unavailable

8

BOLT AND WASHER ASSY.

3082097

Unavailable

9

BOLT-WASHER

3082923

$6.19

10

BOLT W/WASHER

3080739

$6.39

11

PIPE, PULSE

3083798

$9.52

12

SEAL, OIL

3084522

$32.15

13

SPACER, CASE

3084642

Unavailable

14

PIN, DOWEL Substituted by 3086838

3080103

$7.14

15

PLATE,(CASE 1)

3084643

Unavailable

16

SCREW,COUNTERSUNK

3081180

Unavailable

17

STUD Substituted by 3086772

3084520

$3.81
