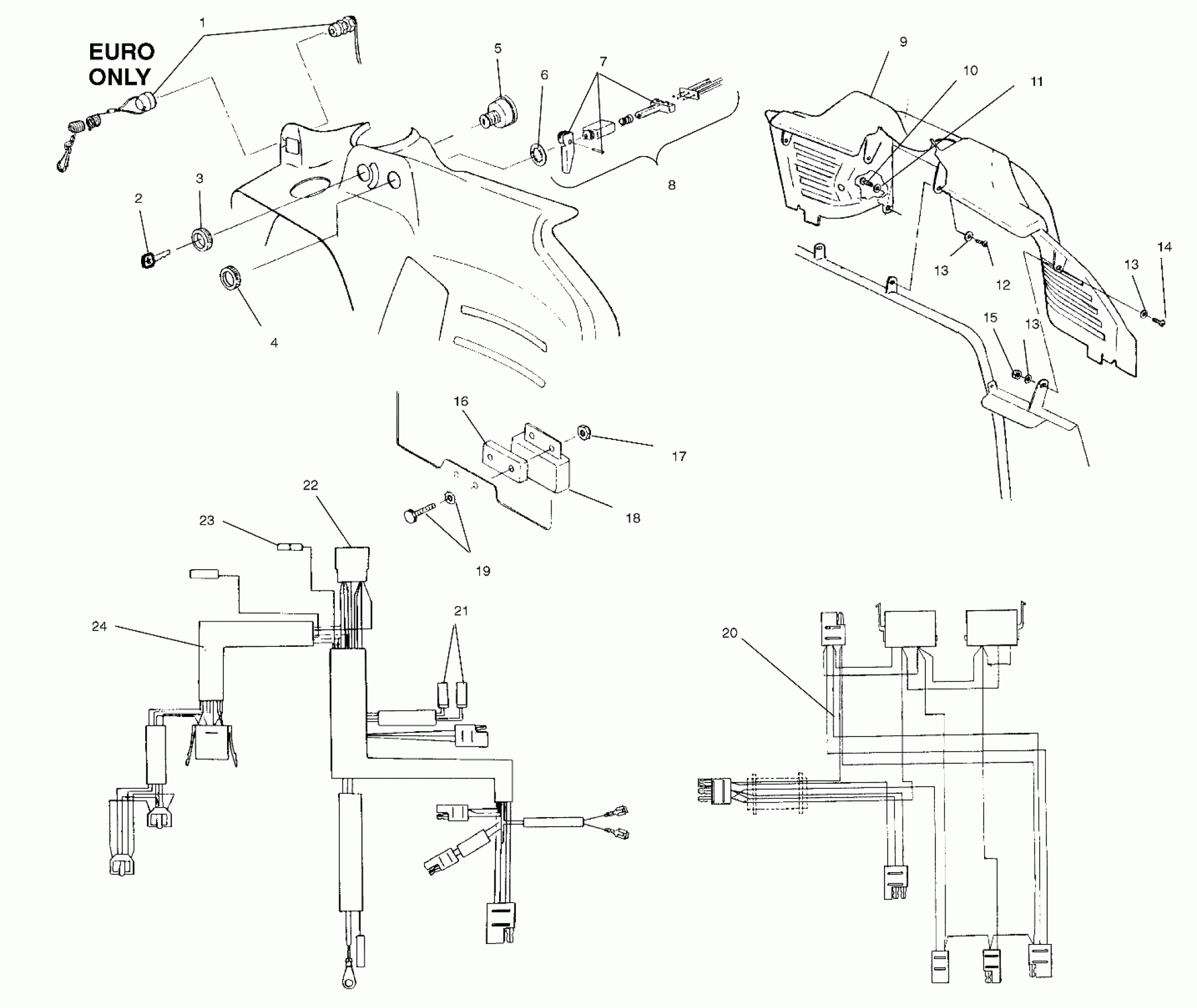

Polaris STORM - 0965782 CONSOLE and WIRE HARNESS - E965782 (4931593159A010) Diagram

#

Description
Price

1

SWITCH,TETHER Substituted by 2870668 (EURO)

4110156

$84.99

2

KEY,IGNITION,W/CAP [Cannot Purchase as Assembly] (See Footnote) NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A, B, C, D or E switch. Letter code will be labeled on unders

5410611

Unavailable

3

NUT, IGN.SWITCH(10)

7543101

Unavailable

4

Nut

7080229

$19.99

5

KIT,IGN. SWITCH (Incl. 2)

2200357

Unavailable

6

WASHER-LOCK(10)

7571610

$3.99

7

KIT-CHOKE CONTROL

2200188

$24.27

8

CABLE, CHOKE

7080283

$109.99

9

CONSOLE,BASIC (US)

5431781

Unavailable

9

CONSOLE,(EURO AGR) (EURO)

5432293

Unavailable

10

SCREW(10)

7512069

Unavailable

11

WASHER(10)

7555792

$4.79

12

BOLT(10)

7512297

$5.59

13

WASHER(10) Substituted by 7558301

7555776

Unavailable

13

WASHER(10) Substituted by 7558301

7555776

Unavailable

13

WASHER(10) Substituted by 7558301

7555776

Unavailable

14

SCREW(10)

7512252

Unavailable

15

NUT(10)

7542124

Unavailable

16

SPACER,REGULATOR

5211573

Unavailable

17

NUT(10)

7541925

$1.49

18

REGULATOR,(14.3VAC),LR-7

4060123

Unavailable

19

SCREW-SEMS(10)

7511848

$3.99

20

HARNESS,HANDLEBAR

2460506

Unavailable

21

Housing

4020153

$1.49

22

Housing w/Receptacle

4020057

$3.51

23

HOUSING

4020133

Unavailable

24

HARNESS,MAIN

2460517

Unavailable
