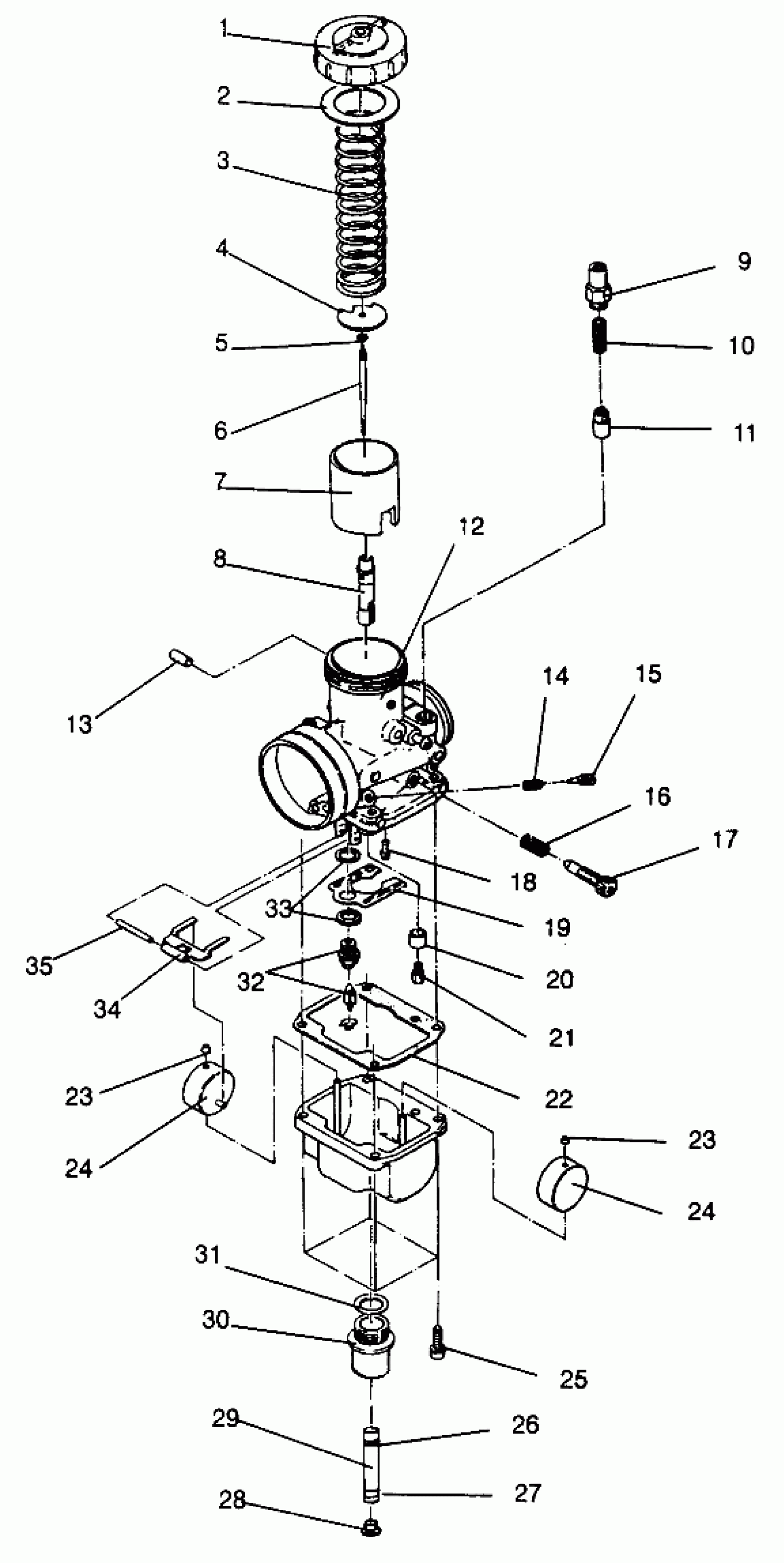

Polaris STORM - 0965782 CARBURETOR ASSEMBLY Storm 0965782, Storm SKS 0965582, Euro Storm E965782, E (4931593159D005) Diagram

#

Description
Price

1

TOP (Incl. 2)

3130061

Unavailable

2

GASKET

-------

Unavailable

3

SPRING,THROTTLE

3130444

Unavailable

4

PLATE, THROTTLE

3130054

$6.46

5

E RING(10) Substituted by 3130508

3130003

Unavailable

6

JET NEEDLE,(6CGY6-3) (6CGY6-3)

3130652

Unavailable

7

VALVE,THROTTLE,(3.0) (3.0)

3130352

Unavailable

8

JET,NEEDLE,(Q-0) (Q-0) 247 (Storm, SKS)

3130414

Unavailable

8

NEEDLE JET,(P-6)247 (P-6) 247 (RMK)

3130655

Unavailable

9

HOLDER,GUIDE

3130199

$28.32

10

SPRING,PLUNGER

3130006

$8.89

11

PLUNGER ASM, STARTER

3130328

$32.37

12

CARBURETOR #1 (Incl. 1-25, 30-35) (Storm, SKS) (MAG Side)

3130650

$253.74

12

CARBURETOR #2 (Incl. 1-25, 30-35) (Storm, SKS) (Center, PTO Side)

3130651

$253.74

12

CARBURETOR #1 (Incl. 1-25, 30-35) (RMK) (MAG Side)

3130653

Unavailable

12

CARBURETOR #2 (Incl. 1-25, 30-35) (RMK) (Center, PTO Side)

3130654

$304.49

13

CAP

3130479

$14.56

14

SPRING,AIR ADJUST

3130012

$8.89

15

SCREW,AIR

3130011

$19.99

16

SPRING,THROTTLE ADJ.

3130010

$8.89

17

SCREW,THROTTLE STOP

3130009

$19.99

18

JET,PILOT,#45(10) (#45) (Storm, SKS)

3130068

$8.89

18

JET,PILOT,#50(10) (#50) (RMK)

3130629

$7.27

19

PLATE

3130243

Unavailable

20

RING,CARB

3130232

Unavailable

21

JET,MAIN,HX.HD#420(10) (#420) (1) (Storm, SKS) (MAG Side)

3130142

$7.27

21

JET,MAIN,HX.HD#400(10) (#400) (2) (Storm, SKS) (Center, PTO Side)

3130141

$7.27

21

JET,MAIN,HX.HD#350(10) (#350) (1) (RMK) (MAG Side)

3130138

$7.27

21

JET,MAIN,HX.HD#330(10) (#330) (2) (RMK) (Center, PTO Side)

3130136

$8.99

22

GASKET,FLOAT CHAMBER

3130236

$12.13

23

CAP,(10)

3130237

$4.03

23

CAP,(10)

3130237

$4.03

24

FLOAT ASM

3130021

$40.46

24

FLOAT ASM

3130021

$40.46

25

SCREW

3130056

$3.19

26

CLAMP,SPRING,(10)

7080534

$1.59

27

CLAMP,HOSE(10)

7080544

Unavailable

28

PLUG,TRAP

5431893

$12.94

29

FUEL LINE, 5 FT.

8450045-153

Unavailable

30

NIPPLE

3130573

$32.37

31

O RING

3130239

Unavailable

32

NEEDLE VALVE ASM. (1.5)

3130598

Unavailable

33

WASHER(10)

3130047

$4.84

34

ARM,FLOAT

3130048

Unavailable

35

PIN, FLOAT Note: All qty's. are per Carb.

3130361

$8.89
