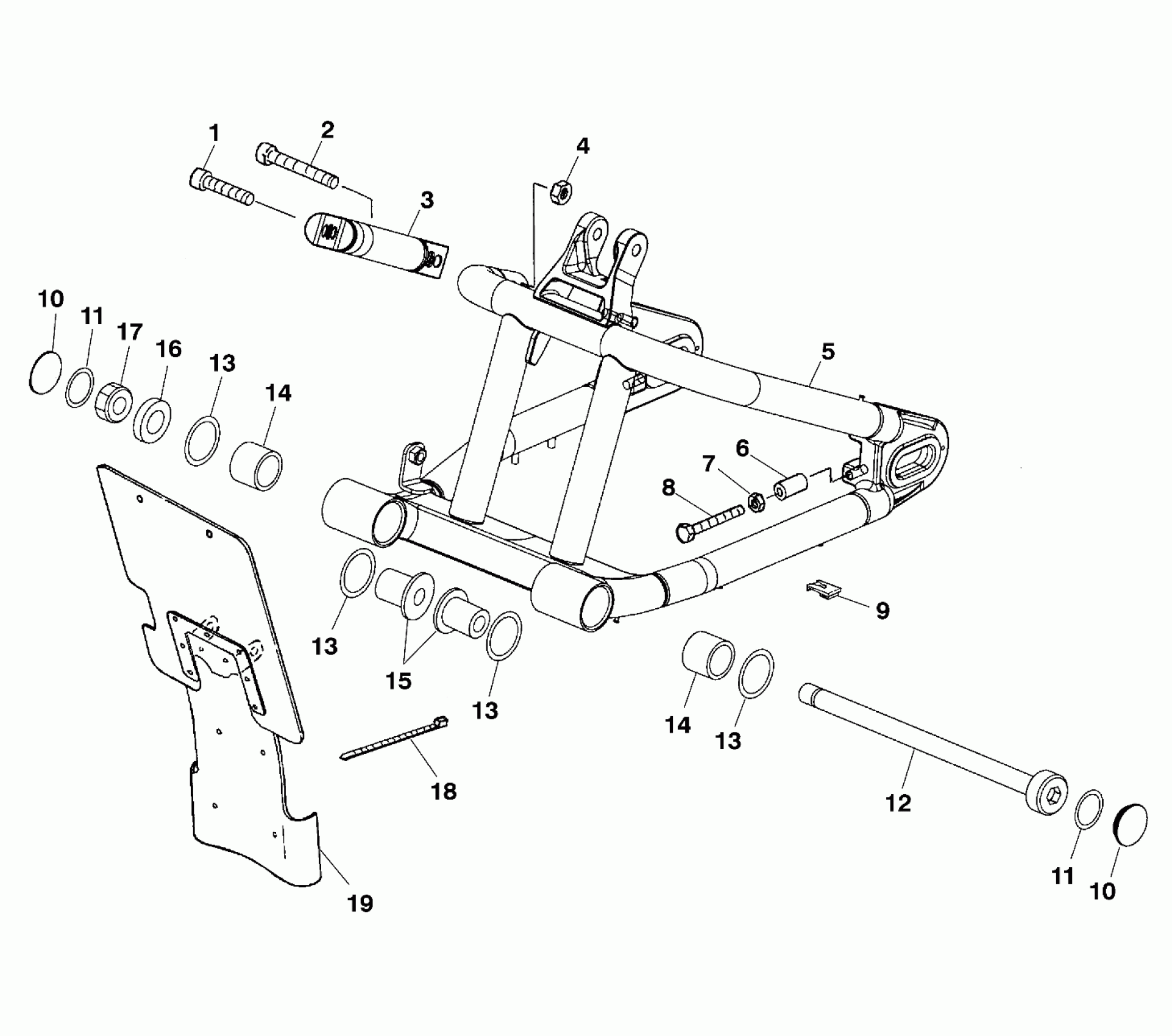

Polaris STANDARD CRUISER - V99CB15DBZ SUSPENSION, SWING ARM - V99CB15DAZ (4947594759A007) Diagram

#

Description
Price

1

SCREW

7517358

$5.59

2

SCREW

7517367

Unavailable

3

TUBE,UPPER,BLK

1080002-067

$130.95

4

NUT (10)

7547039

Unavailable

5

SWING ARM,BLK

1080001-067

$544.99

6

SPACER,SWINGARM ALIGNMENT

5131908

$6.37

7

NUT,HEXHD,M8

7547076

$2.60

8

SCREW (10)

7517508

Unavailable

9

CLIP,POST,FRAME

5433193

Unavailable

10

CAP,SWINGARM PIVOT Substituted by 5132327

5131681

Unavailable

10

CAP,SWINGARM PIVOT Substituted by 5132327

5131681

Unavailable

11

O-RING,1.8X34.9,0600083

5411522

$1.83

11

O-RING,1.8X34.9,0600083

5411522

$1.83

12

SHAFT,SW.ARM,PIVOT Substituted by 5132890

5020925

$121.43

13

O-Ring

5411367

$6.99

13

O-Ring

5411367

$6.99

13

O-Ring

5411367

$6.99

13

O-Ring

5411367

$6.99

14

BUSHING,SWINGARM

5432767

Unavailable

14

BUSHING,SWINGARM

5432767

Unavailable

15

SLEEVE,SWINGARM

5010445

$28.62

16

Washer

7556021

$7.67

17

NUT Substituted by 7547124

7547048

Unavailable

18

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

19

FENDER ASM,INNER

1012719

$288.99
