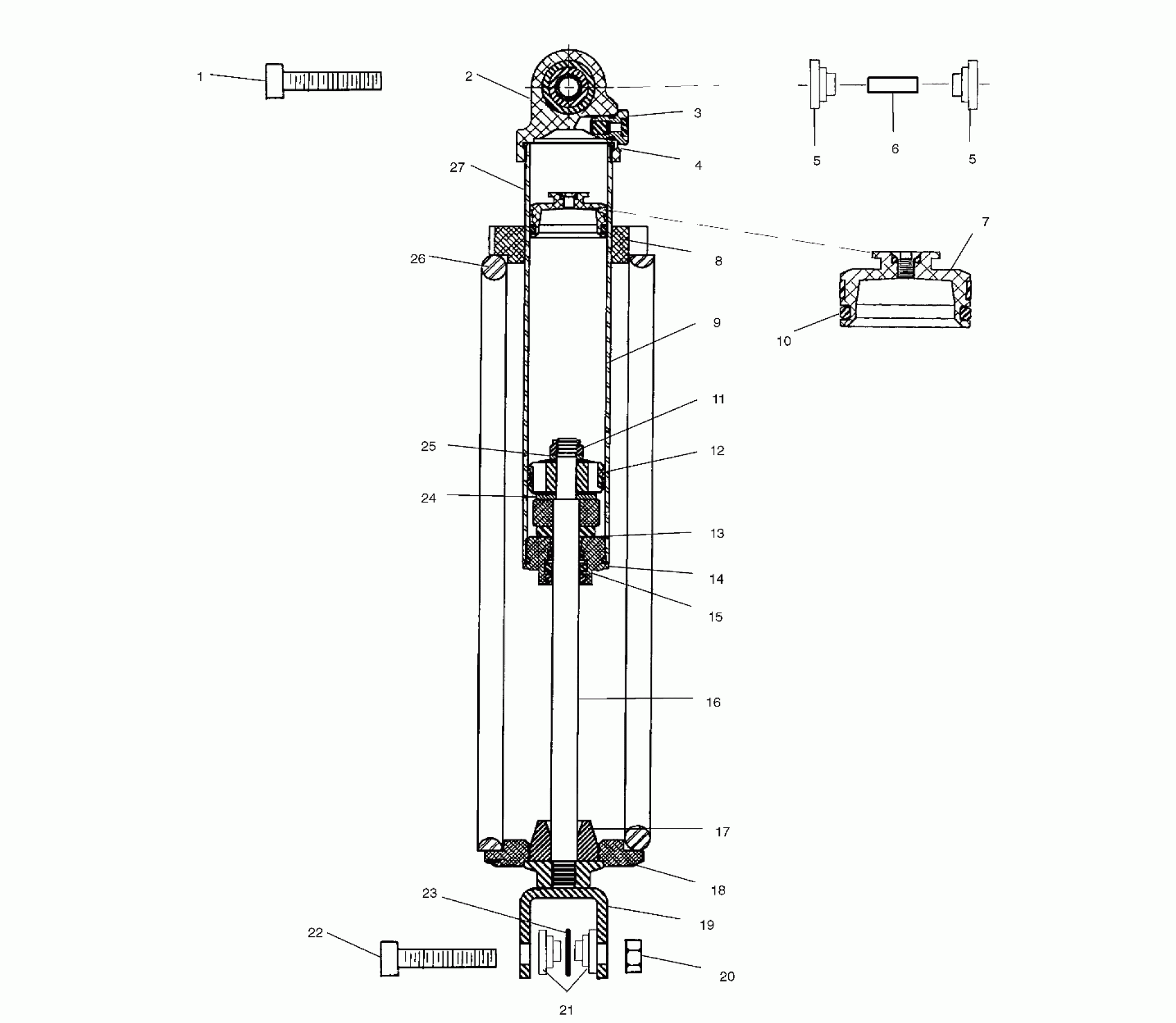

Polaris STANDARD CRUISER - V99CB15DBZ SUSPENSION, SHOCK, REAR - V99CB15LCZ (4960146014B006) Diagram

#

Description
Price

1

SCREW (Rear Shock Mounting)

7517367

Unavailable

2

BODY CAP,V92C

1500175

$139.68

3

Screw

1500019

$6.39

4

O-RING,BODY,FOX,.139W-1.234ID

1500004

$1.83

5

BSG-EYELET

1500103

$8.08

5

BSG-EYELET

1500103

$8.08

6

SLEEVE-.4X.83X1.26 213-11-002

1500274

Unavailable

7

PISTON

1500011

$59.99

8

RING,SPRING,PRELOAD

1500237

Unavailable

9

BODY-1.459BORE,5.75OTLG,STEEL

1500181

$115.08

10

O-RING-HIGH TEMP,IFP

1500180

Unavailable

11

NUT,LOCK

1500016

$12.79

12

DAMPER,PISTONRING,FOX

1500002

$31.99

13

BUMPER,RUBBER

1500074

$5.65

14

O-RING,(10).103W-1.299ID

1500020

$10.63

15

BEARING Substituted by 1500186

1500009

Unavailable

16

SHAFT-0.498 OD X 5.85 TLG

1500177

$68.25

17

BUMPER,JOUNCE

5410855

$39.19

18

RETAINER-SPRING,V92C

1500178

$70.87

19

EYELET-CLEVIS,V92C

1500179

Unavailable

20

NUT (10)

7547039

Unavailable

21

REDUCER,STD.CRUISER Substituted by 1500092

1500173

Unavailable

22

SCREW,HEXHD

7517365

Unavailable

23

O-RING,(FOX),SP

1500093

$7.27

24

PLATE,TOP OUT

1500017

$20.22

25

BUSHING,BACKUP

1500015

$6.76

26

SPRING-SHOCK,V92C,460 LBS

7041759

Unavailable

27

SHOCK

1500174

Unavailable
