SUSPENSION, FRONT FORKS - V99CB15DAZ (4952565256A011)

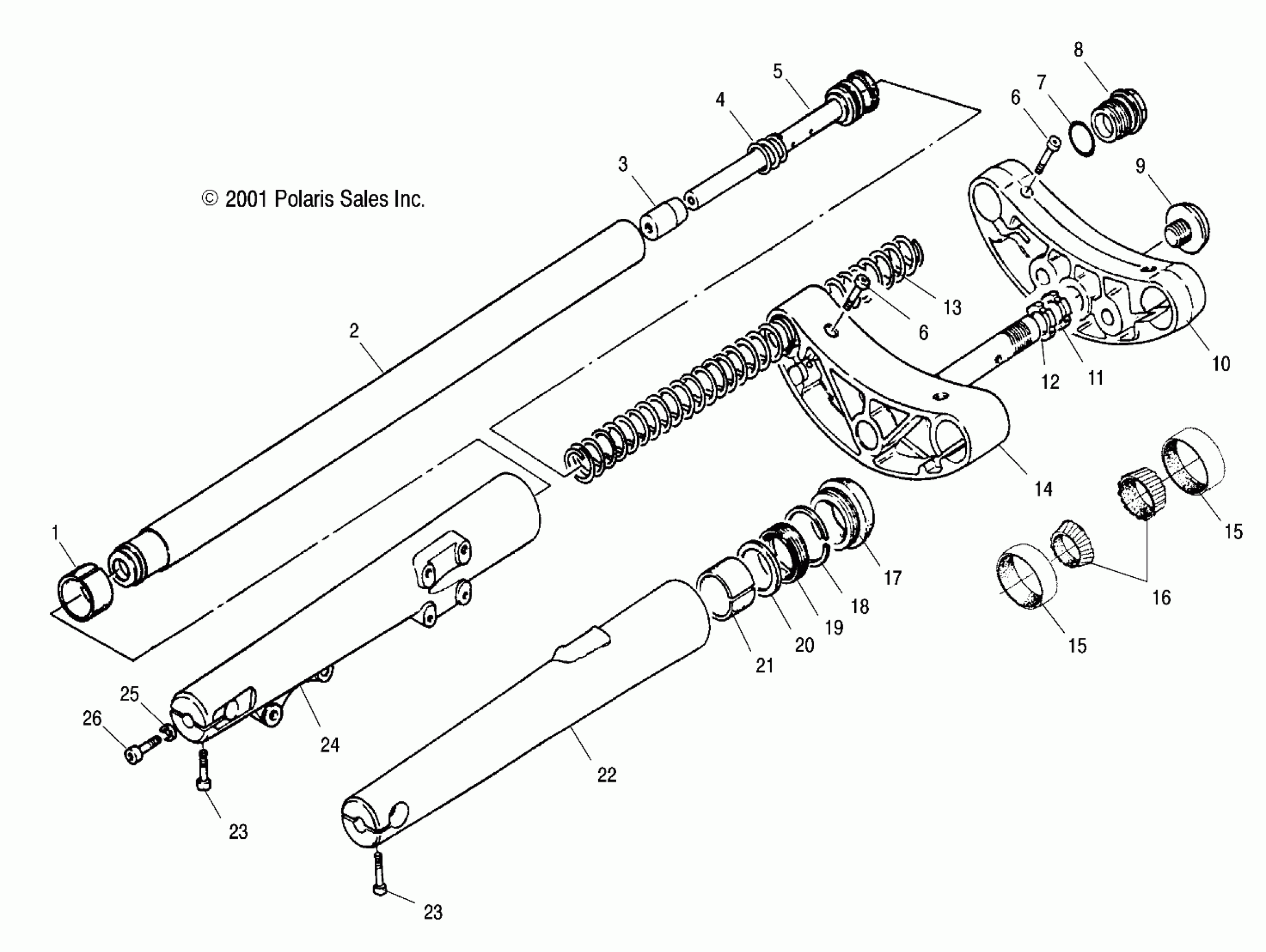

Polaris STANDARD CRUISER - V99CB15DBZ SUSPENSION, FRONT FORKS - V99CB15DAZ (4952565256A011) Diagram
#
Description
Price
-
FORKLEG ASM,LH,45MM. (Incl. 1-5,7-9,13-26)
1843081
Unavailable
-
FORKLEG ASM,RH,45MM. (Incl. 1-5,7-9,13-26)
1843082
$504.99
-
OIL,FORK,MARZOCCHI SAE7.5 Substituted by 2872184
2871985
$12.39
1
BUSHING,LOWER
3585714
$27.78
2
TUBE,STANCHION,45MM
5131505
Unavailable
3
FOOT,BUFFER
5131498
Unavailable
4
SPRING,REBOUND
7041624
$10.63
5
SEGMENT,ROD DAMPER
1500171
$5.71
5
KIT,ROD DAMPER
2201122
$122.21
5
ROD,DAMPER
1500131
$94.44
6
CLAMP,STAN.TUBE FASTENER
1500170
$6.98
6
CLAMP,STAN.TUBE FASTENER
1500170
$6.98
7
O-RING,FORK
5411330
$2.14
8
PLUG,FORK
5131502
$65.48
9
BOLT,STEERING POST,CAP
5131497
$116.67
10
CLAMP,TRIPLE,UPPER Substituted by 5132376
5131503
Unavailable
11
NUT-STEERING POST,UPPER
5131953
$17.46
12
NUT,STEERING POST
5131496
$33.33
13
SPRING,COMP.
7041684
Unavailable
14
CLAMP ASM,TRIPLE,LOWER Substituted by 1820811 (Incl. 6,9,11,12)
1843096
$281.75
15
BRG,TAPER,ROLL CUP
3554507
$31.99
15
BRG,TAPER,ROLL CUP
3554507
$31.99
16
BEARING,TPR.RLR,SEALED
3554510
Unavailable
17
CAP,DUSTSEAL
1500167
Unavailable
18
RING,STOP
5211827
$14.56
19
SEAL,OIL
3610068
Unavailable
20
CAP,OILSEAL
5131504
$20.22
21
BUSHING,UPPER
3585715
$43.65
22
SLIDER UNIT,LH Substituted by 1843081
1843094
Unavailable
23
CLAMP,AXLE FASTENER
1500168
Unavailable
23
CLAMP,AXLE FASTENER
1500168
Unavailable
24
SLIDER UNIT,RH
1843095
$504.99
25
WASHER,OILSEAL
3610069
$23.81
26
RETAINER,DAMP.TUBE FASTENER
1500169
$4.21
