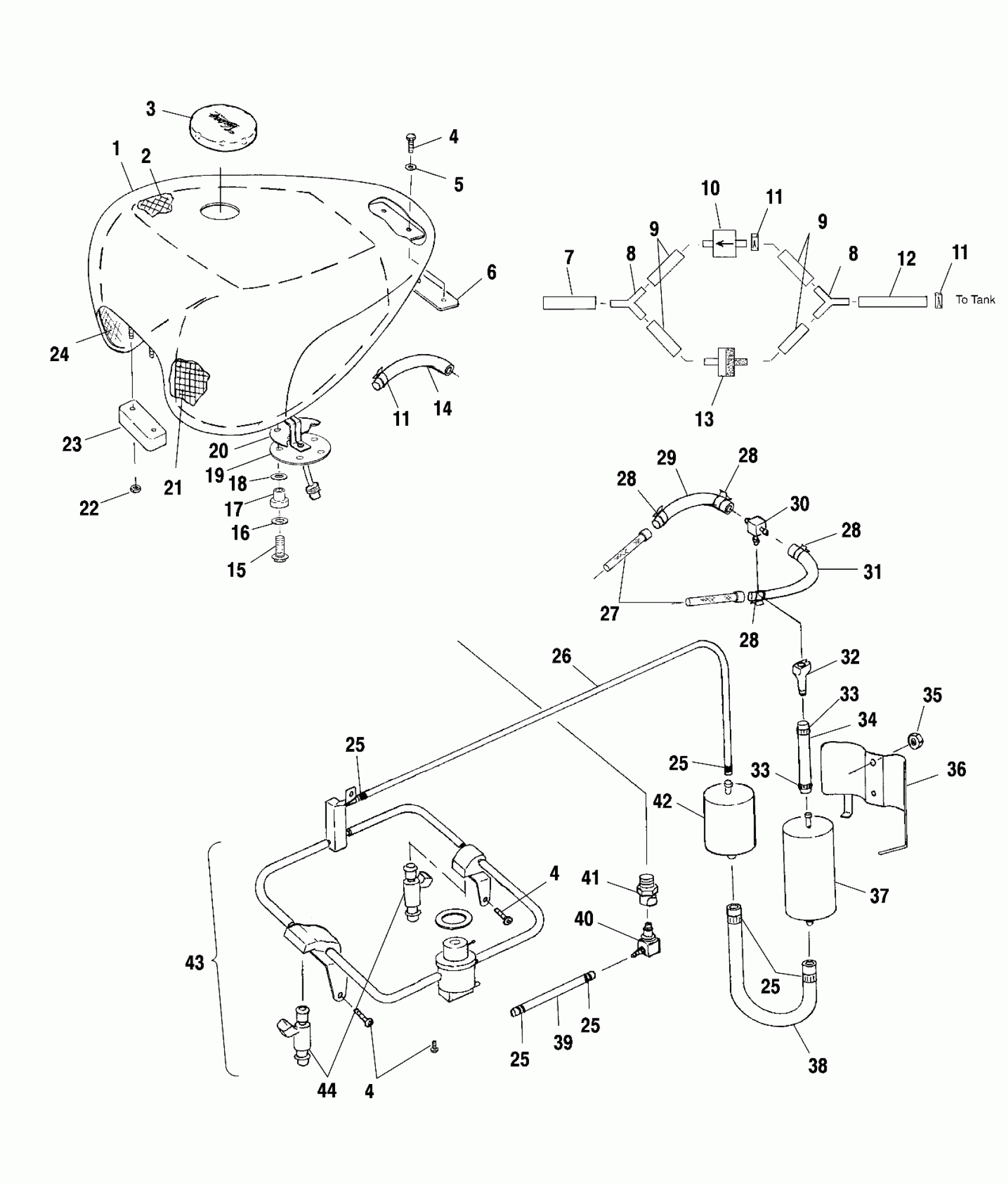

Polaris STANDARD CRUISER - V99CB15DBZ FUEL SYSTEM, FUEL TANK, PUMP and RAILS - V99CB15LCZ (4952535253D004) Diagram

#

Description
Price

1

TANK,FUEL

1080004-1084

Unavailable

1

TANK,FUEL

1080004-1088

Unavailable

1

TANK,FUEL,CRS,BLK.

1080004-266

Unavailable

2

SHIELD-HEAT,FUEL TANK

5830147

$144.99

3

CAP,FUEL Substituted by 5132333

5131511

Unavailable

4

Screw

7517355

Unavailable

4

Screw

7517355

Unavailable

4

Screw

7517355

Unavailable

5

WASHER,CUSHION

7556052

Unavailable

6

ISOLATOR,R.TANK MOUNT

5411324

Unavailable

7

FUEL LINE-27 CENTIMETERS (See Footnote) (V99CB15LAZ) (V99CB15LBZ)(V99CB15LCZ)

8450084-27

Unavailable

8

CONNECTOR-Y,3/16,BARB [No Longer Available] (See Footnote) (V99CB15LAZ) (V99CB15LBZ)(V99CB15LCZ)

7052261

Unavailable

8

CONNECTOR-Y,3/16,BARB [No Longer Available] (See Footnote) (V99CB15LAZ) (V99CB15LBZ)(V99CB15LCZ)

7052261

Unavailable

9

DESC NOT_AVAILABLE (See Footnote) (V99CB15LAZ) (V99CB15LBZ)(V99CB15LCZ)

8450084-6

Unavailable

9

DESC NOT_AVAILABLE (See Footnote) (V99CB15LAZ) (V99CB15LBZ)(V99CB15LCZ)

8450084-6

Unavailable

10

VALVE,PRES.RELIEF3/16X3/16 (See Footnote) (V99CB15LAZ) (V99CB15LBZ)(V99CB15LCZ)

7052262

Unavailable

11

CLAMP-HOSE,.375,BLACK(10)

7080829

Unavailable

11

CLAMP-HOSE,.375,BLACK(10)

7080829

Unavailable

11

CLAMP-HOSE,.375,BLACK(10)

7080829

Unavailable

12

DESC NOT_AVAILABLE (See Footnote) (V99CB15LAZ) (V99CB15LBZ)(V99CB15LCZ)

8450084-51

Unavailable

13

VALVE,CHK,INLINE3/16X3/16 (See Footnote) (V99CB15LAZ) (V99CB15LBZ)(V99CB15LCZ)

7052263

$4.68

14

HOSE-VENT,FUEL TANK (See Footnote) (V99CB15DAZ) (V99CB15DBZ)(V99CB15DCZ)

2520147

Unavailable

15

SCREW

7517688

Unavailable

16

O-RING-FUEL SENDER,BOOTOM

5411748

$3.49

17

BUSHING-TORQUE LIMITER

5433452

$23.99

18

O-RING-FUEL SENDER,TOP

5411749

$3.49

19

SENDER,FUEL LEVEL

4110231

$180.16

20

GASKET-FUEL SENDER

5811851

$38.41

21

SHIELD,HEAT,FUEL TANK,LEFT

5830163

$81.75

22

NUT Substituted by 7547121

7547045

Unavailable

23

PAD,FUELTANK FRAME,FRONT

5411317

$22.06

24

SHIELD,HEAT,FUEL TANK,RIGHT

5830164

$72.99

25

CLAMP, HOSE, S.S.(10)

7080476

$6.39

25

CLAMP, HOSE, S.S.(10)

7080476

$6.39

25

CLAMP, HOSE, S.S.(10)

7080476

$6.39

25

CLAMP, HOSE, S.S.(10)

7080476

$6.39

25

CLAMP, HOSE, S.S.(10)

7080476

$6.39

26

HOSE,FUEL,MANIFOLD/FILTER Substituted by 5411803

5411399

$38.75

27

FILTER,FUEL

2530031

Unavailable

28

CLAMP,HOSE,DBL.BAND

7080790

Unavailable

28

CLAMP,HOSE,DBL.BAND

7080790

Unavailable

28

CLAMP,HOSE,DBL.BAND

7080790

Unavailable

28

CLAMP,HOSE,DBL.BAND

7080790

Unavailable

29

HOSE,RH,FUELTANK Substituted by 5411799

5411405

Unavailable

30

QUICKDISC,FUELFEED,MALE,TEE

2520131

Unavailable

30

O-Ring

1500199

$4.76

31

HOSE,LH,FUELTANK Substituted by 5411929

5411404

Unavailable

32

QUICKDISC,,FUELPUMP,FEMALE

2520136

Unavailable

33

CLAMP-HOSE,.875-SS

7080474

$8.40

33

CLAMP-HOSE,.875-SS

7080474

$8.40

34

HOSE,FUEL PUMP/RAIL

5411402

$27.94

35

NUT Substituted by 7547120

7547041

Unavailable

36

BRKT,FUELPUMP TOP,BLK

5211889-067

Unavailable

37

PUMP,FUEL

2520128

Unavailable

38

HOSE,FUEL FILTER/PUMP Substituted by 5411761

5411401

Unavailable

39

HOSE,FUEL,RAIL/TANK RTN. Substituted by 5411762

5411403

$34.44

40

O-Ring

1500199

$4.76

40

FUELLINE,QUICK DISC,MALE

5131507

Unavailable

41

DISC-QUICK,FUELTANK,FEMALE

5131506

$49.21

42

FILTER,FUEL,HI-PRESSURE

2530028

$40.46

43

RAIL,FUEL Substituted by 2520191

2520132

Unavailable

44

O-RING-BOSCH,EV-14,UPPER, BLUE

1500198

$11.99

44

Injector, Fuel

1253174

$177.13
