- STANDARD CRUISER - V99CB15DBZ
FUEL SYSTEM, FUEL LINES and THROTTLE BODY - V99CB15LCZ (4952535253D003)

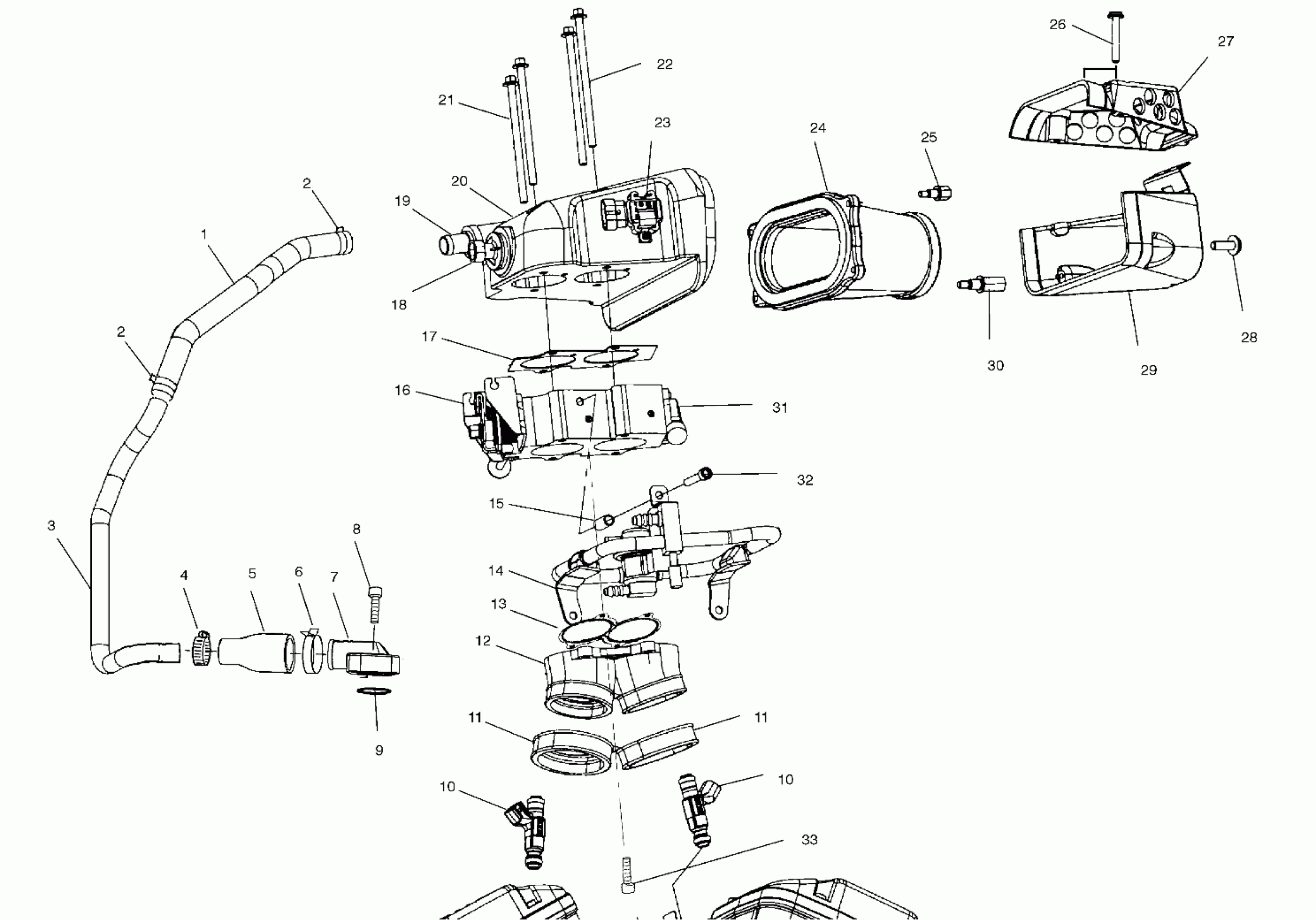

Polaris STANDARD CRUISER - V99CB15DBZ FUEL SYSTEM, FUEL LINES and THROTTLE BODY - V99CB15LCZ (4952535253D003) Diagram
#
-
THROTTLE BODY,V92C,KIT Substituted by 1253172 (Incl. O-Ring)
2201283
Unavailable
1
HOSE,BREATHER TO AIRBOX
5411223
$5.00
2
CLAMP-BREATHER HOSE,1/2
7080781
$2.17
2
CLAMP-BREATHER HOSE,1/2
7080781
$2.17
3
TUBE-BREATHER,ENGINE
5224831
$69.84
4
CLAMP,BREATHER HOSE
7080714
$1.43
5
HOSE-BREATHER TO ENGINE
5411513
$17.30
6
CLAMP-BREATHER HOSE,3/4
7080782
Unavailable
7
ADAPTER,BREATHER [No Longer Available]
5131679
$32.98
8
SCREW,SOCHD,M6X20
7517384
$8.79
9
O-RING
5411279
Unavailable
10
O-RING-BOSCH,EV-14,UPPER, BLUE
1500198
$11.99
10
CLIP,INJECTOR CLOCKING
7670103
$3.79
10
INJECTOR,FUEL
1253174
$177.13
10
O-RING-BOSCH,EV-14,UPPER, BLUE
1500198
$11.99
10
CLIP,INJECTOR CLOCKING
7670103
$3.79
10
INJECTOR,FUEL
1253174
$177.13
11
CLAMP,BAND,NARROW
7080656
Unavailable
11
CLAMP,BAND,NARROW
7080656
Unavailable
12
ADAPTER,THROTTLE BODY
1253173
Unavailable
13
SEAL,THROTTLE BODY/ADAPTER
5811868
Unavailable
14
RAIL,FUEL Substituted by 2520191
2520132
Unavailable
15
COLLAR,SPACER
5020971
$1.90
16
THROTTLE BODY ASM.(49 STATE MODEL)
1253233
$440.86
17
GASKET,AIRBOX/THROT.BODY
1253210
Unavailable
18
Sensor, Air Temperature (See Footnote) (See Electrical Pg. B11,Ref. 7)
-------
Unavailable
19
BUSHING,BREATHER,FTNG.
5411535
$6.94
19
FITTING,BREATHER,HOSE
5131939
$9.52
20
BASE,AIRBOX
5432506
Unavailable
21
SCREW
7517496
Unavailable
22
SCREW
7517495
$4.52
23
SCREW,BTNHD,M5X12
7517483
$34.99
23
SENSOR,MAP
4040078
Unavailable
23
BRKT,MAP SENSOR
5211907
$6.59
24
FILTER,AIR
7080695
Unavailable
25
STANDOFF-MALE,M5
5131966
$8.79
26
SCREW
7517594
Unavailable
27
COVER-TOP AIRBOX
5433122
$111.11
28
SCREW
7517593
$1.83
29
AIRBOX,BOTTOM
1253256
$69.84
30
STANDOFF-MALE/FEMALE,M5
5131965
Unavailable
31
Sensor, Throttle Position and O-Ring (See Electrical Pg.B11, Ref.8)
-------
Unavailable
32
SCREW,SOCHD,M6X30(10)
7517301
$2.39
33
SCREW,SOCHD,M5X16
7516610
$3.99
