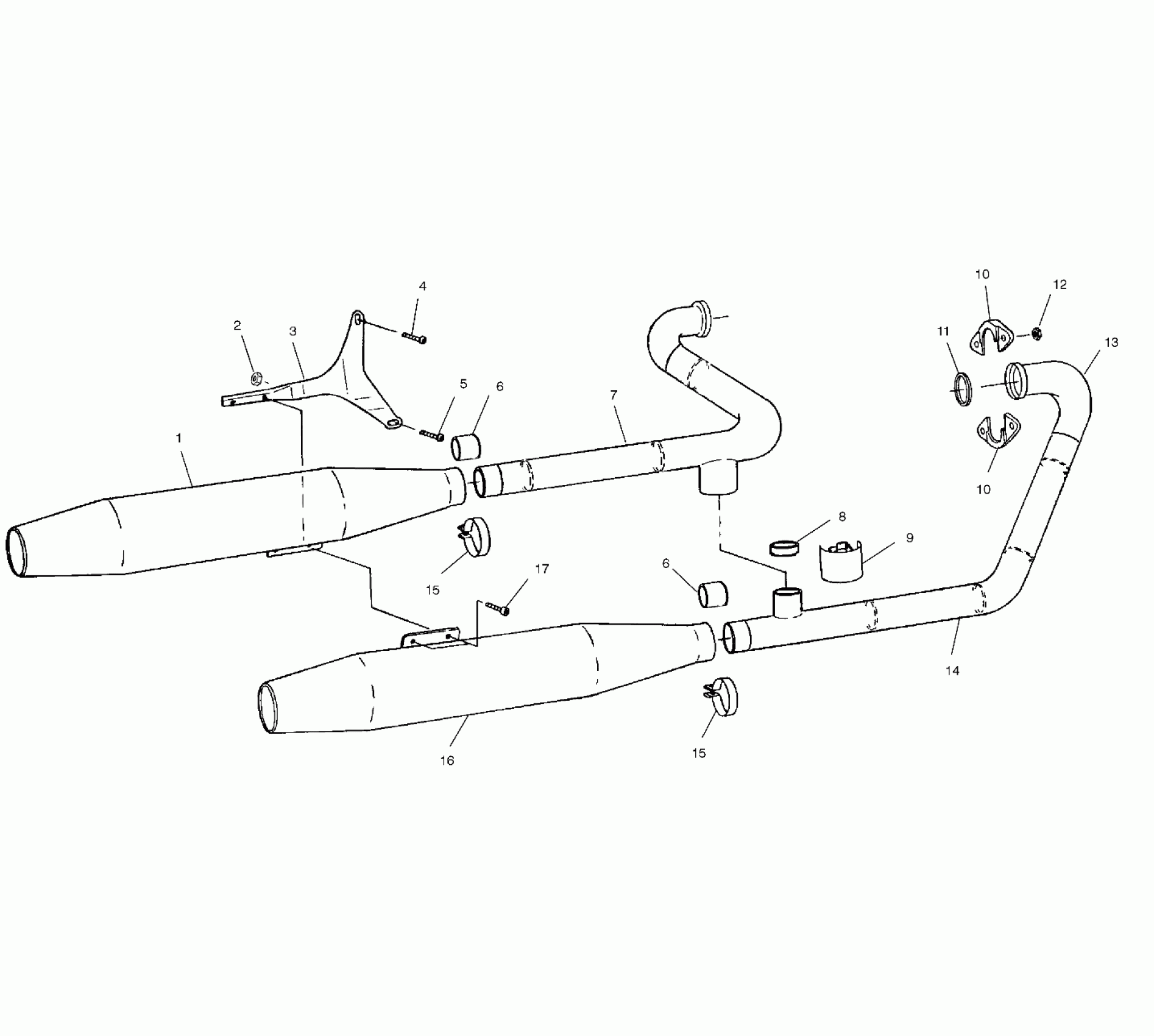

Polaris STANDARD CRUISER - V99CB15DBZ ENGINE, EXHAUST SYSTEM - V99CB15LCZ (4952535253B013) Diagram

MUFFLER,ASM.REAR,V92C (Incl. Ref.15)

1260949

$339.99

NUT Substituted by 7547121

7547045

Unavailable

MOUNT,REAR EXHAUST,BLK.

5242187-067

$216.99

SCREW,SOCHD,M8X20

7517410

Unavailable

SCREW,(10)

7517458

Unavailable

GASKET,EXHAUST,MUFFLER

5811770

Unavailable

GASKET,EXHAUST,MUFFLER

5811770

Unavailable

EXHAUST,PIPE REAR,V92C (Incl. Shield)

1260954

$484.99

GASKET,EXHAUST,CROSSOVER Substituted by 5811829

5811769

Unavailable

CLAMP,CROSSOVER,V92C

7080835

$30.71

FLANGE,EXH,TOP/BOTTOM

5131916

$77.99

FLANGE,EXH,TOP/BOTTOM

5131916

$77.99

GASKET,EXH.SEALING

5211770

Unavailable

NUT,SS.

7546805

Unavailable

EXHAUST,PIPE,FRONT,V92C (Incl. Shield)

1260953

Unavailable

CLAMP,EXH,HEATSHIELD

7080774

Unavailable

CLAMP,MUFFLER

7080834

$43.29

CLAMP,MUFFLER

7080834

$43.29

MUFFLER,ASM.FRNT,V92C (Incl. Ref.15)

1260951

$329.99

SCREW,SOCHD,M8X25

7517524

$4.35
