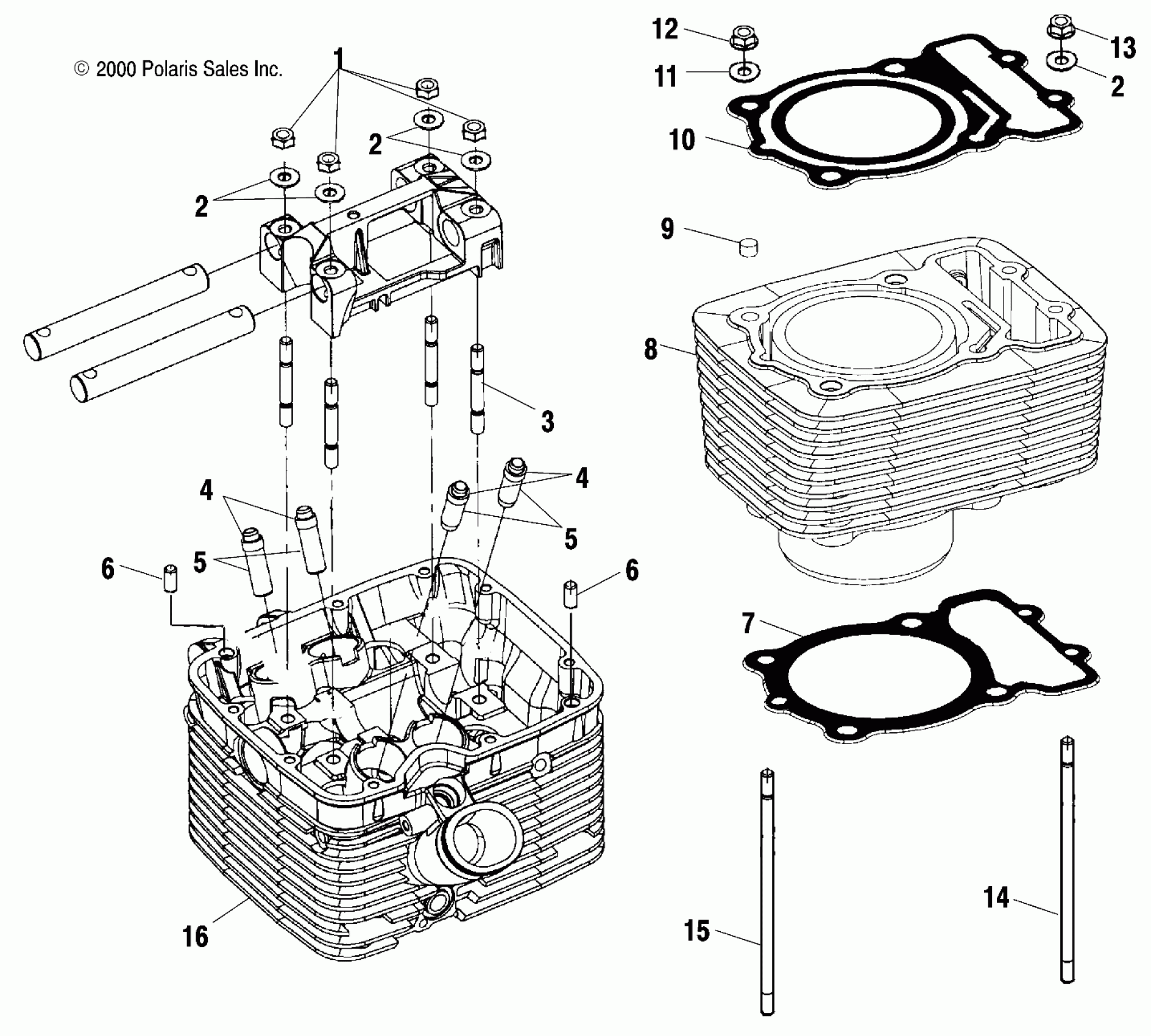

Polaris STANDARD CRUISER - V99CB15DBZ ENGINE, CYLINDER and HEAD - V99CB15LCZ (4952535253C005) Diagram

#

Description
Price

-

GASKET,KIT,TOP END,V92C [No Longer Available]

2201281

Unavailable

-

GASKET,KIT,V92C [No Longer Available] (Complete, V92C)

2201282

Unavailable

1

NUT-HEXHD,M8X1.25,0600092

7547080

$7.19

2

WASHER,FL,8.4X1.6(10)

7556043

Unavailable

2

WASHER,FL,8.4X1.6(10)

7556043

Unavailable

2

WASHER,FL,8.4X1.6(10)

7556043

Unavailable

3

STUD,CARRIER MT.

5131743

$10.56

4

SEAL,VALVE STEM

3610064

Unavailable

4

SEAL,VALVE STEM

3610064

Unavailable

5

VALVE,GUIDE

3022041

Unavailable

5

VALVE,GUIDE

3022041

Unavailable

6

DWL-HOL,M9X10

7663007

$3.99

6

DWL-HOL,M9X10

7663007

$3.99

7

GASKET,BASE

5244305

Unavailable

8

CYLINDER,MACH

5131491

$794.99

9

DOWL,HOL,M13X10

7663008

$5.27

10

GASKET,HEAD,FRONT

5244306

Unavailable

10

GASKET,HEAD,REAR

5244307

Unavailable

11

WASHER,FL,(10)

7555986

$10.39

12

NUT (10)

7547017

$5.59

13

NUT,HXFLGHD,M8(10)

7547014

$7.84

14

STUD,CYL.MT.

5132633

Unavailable

15

STUD,CYL.MT.

5131475

$15.49

16

HEAD,CYL,#1 (Incl. 1-5 and Shaft/Rocker Arm)

3023022

$909.99

16

HEAD,CYLINDER,2 MACH (Incl. 1-5 and Shaft/Rocker Arm)

3023024

$909.99
