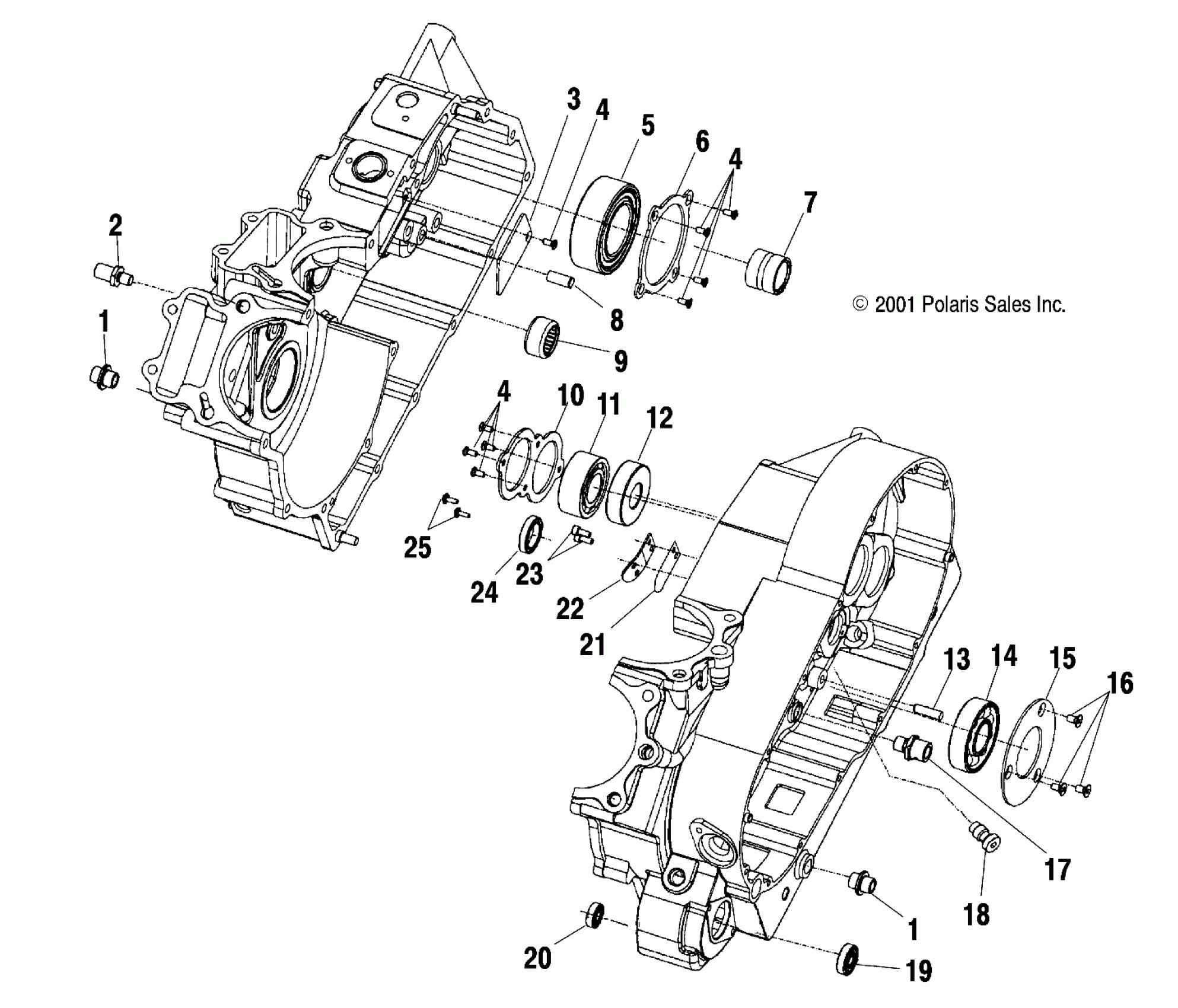

Polaris STANDARD CRUISER - V99CB15DBZ ENGINE, CRANKCASE BEARINGS - V99CB15LCZ (4952535253C004) Diagram

#

Description
Price

1

MOUNT.TOPHAT,ENGINE

5020953

$7.14

1

MOUNT.TOPHAT,ENGINE

5020953

$7.14

2

ADAPTER-CAM CHAIN GUIDE

5010430

Unavailable

3

PLATE,BREATHER BAFFLE [No Longer Available]

5131792

Unavailable

4

SCREW,FLHD,M5X12

7517255

$7.14

4

SCREW,FLHD,M5X12

7517255

$7.14

4

SCREW,FLHD,M5X12

7517255

$7.14

5

BEARING,ANGULAR

3513515

Unavailable

6

PLATE,BRG.RETAIN,MAINSHAFT

5211817

$10.81

7

BEARING,ROLLER,28X37X30

3584007

$48.00

8

PIN, SOL,M10X15

7661020

Unavailable

9

BEARING,NEEDLE

3552102

$37.99

10

PLATE,LH,BRG.RETAIN,I/C SHAFT

5211774

$10.81

11

BEARING,BALL,DOUBLE ROW

3513524

Unavailable

12

BEARING,BALL

3513512

Unavailable

13

PIN,SOL,M8X30 Substituted by 7661101

7661021

$2.79

14

BEARING,BALL,30X72X19

3513525

$19.99

15

PLATE,BRG.RETAIN,BAL.SHAFT

5211773

Unavailable

16

SCREW

7517440

$6.79

17

ADAPTER-SHIFT SHAFT

5132139

$44.51

18

LUBRICATION-JET

5132226

$30.71

19

BEARING,BALL,10X30X9

3513518

$13.08

20

BEARING,BALL

3514313

$17.44

21

PLATE,REED,VALVE [No Longer Available]

5131793

Unavailable

22

PLATE,REED BACKER [No Longer Available]

5131791

$12.43

23

SCREW,SOCHD,M5X12(10)

7517276

$7.14

24

BEARING,BALL,25X37X7

3513511

$30.54

25

SCREW,M4X12,PNWSHRHD.

7517275

$6.19
