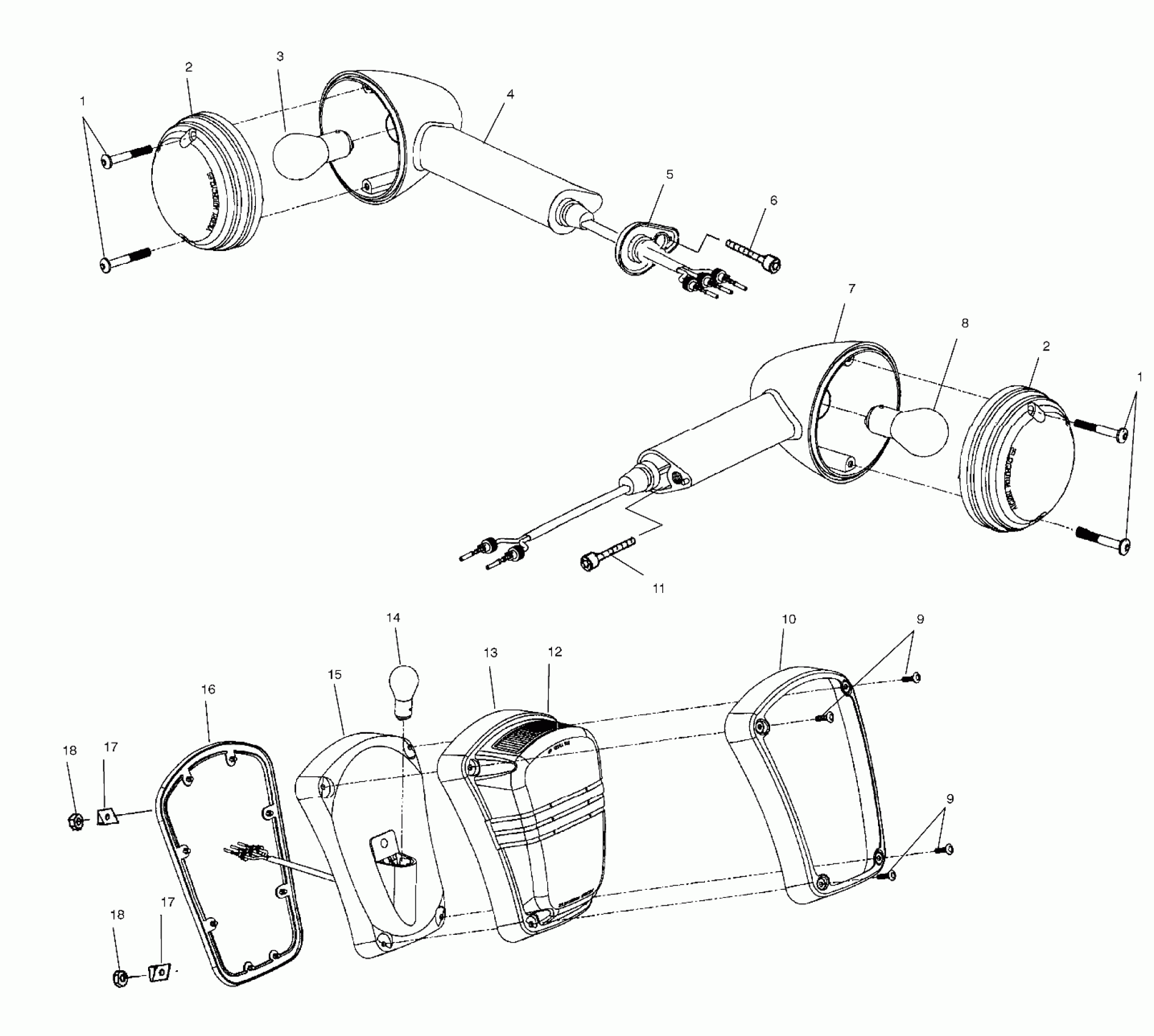

Polaris STANDARD CRUISER - V99CB15DBZ ELECTRICAL, TAILLIGHT and TURN SIGNAL - V99CB15LCZ (4952535253B002) Diagram

#

Description
Price

1

Screw

7517369

$3.79

1

Screw

7517369

$3.79

2

TURN,SIGANL LENSE,AMBER (Incl. 1)

2201419

Unavailable

2

TURN,SIGANL LENSE,AMBER (Incl. 1)

2201419

Unavailable

3

BULB,DUAL FILAMENT(10)

4030064

$8.89

4

TURNSIGNAL ASM,LH,FRONT

2433005

Unavailable

4

TURNSIGNAL ASM,RH,FRONT

2433007

Unavailable

5

SPACER,TURN SIGNAL

5433203

Unavailable

6

SCREW

7517517

Unavailable

7

TURNSIGNAL ASM,LH,REAR

2433004

$122.21

7

TURNSIGNAL ASM,RH,REAR

2433006

$126.57

8

BULB,SINGLE FILAMENT(10)

4030065

$7.38

9

Screw

7517237

Unavailable

9

Screw

7517237

Unavailable

10

BEZEL,TAILLIGHT

5230125

$61.90

11

SCREW (10)

7517571

$2.43

12

TAILIGHT ASM. Substituted by 2410273 (Incl. 3,9,10,13,15,16)

2432039

Unavailable

13

LENS,TAILLIGHT

5432732

Unavailable

14

BULB,FILAMENT,SUPER HD

4010222

Unavailable

15

BASE

-------

Unavailable

16

PAD,TAIL LIGHT MNTG

5811530

Unavailable

17

SPACER,R.TAILLAMP,FENDER

5131842

$23.65

17

SPACER,R.TAILLAMP,FENDER

5131842

$23.65

18

NUT Substituted by 7547120

7547041

Unavailable

18

NUT Substituted by 7547120

7547041

Unavailable
