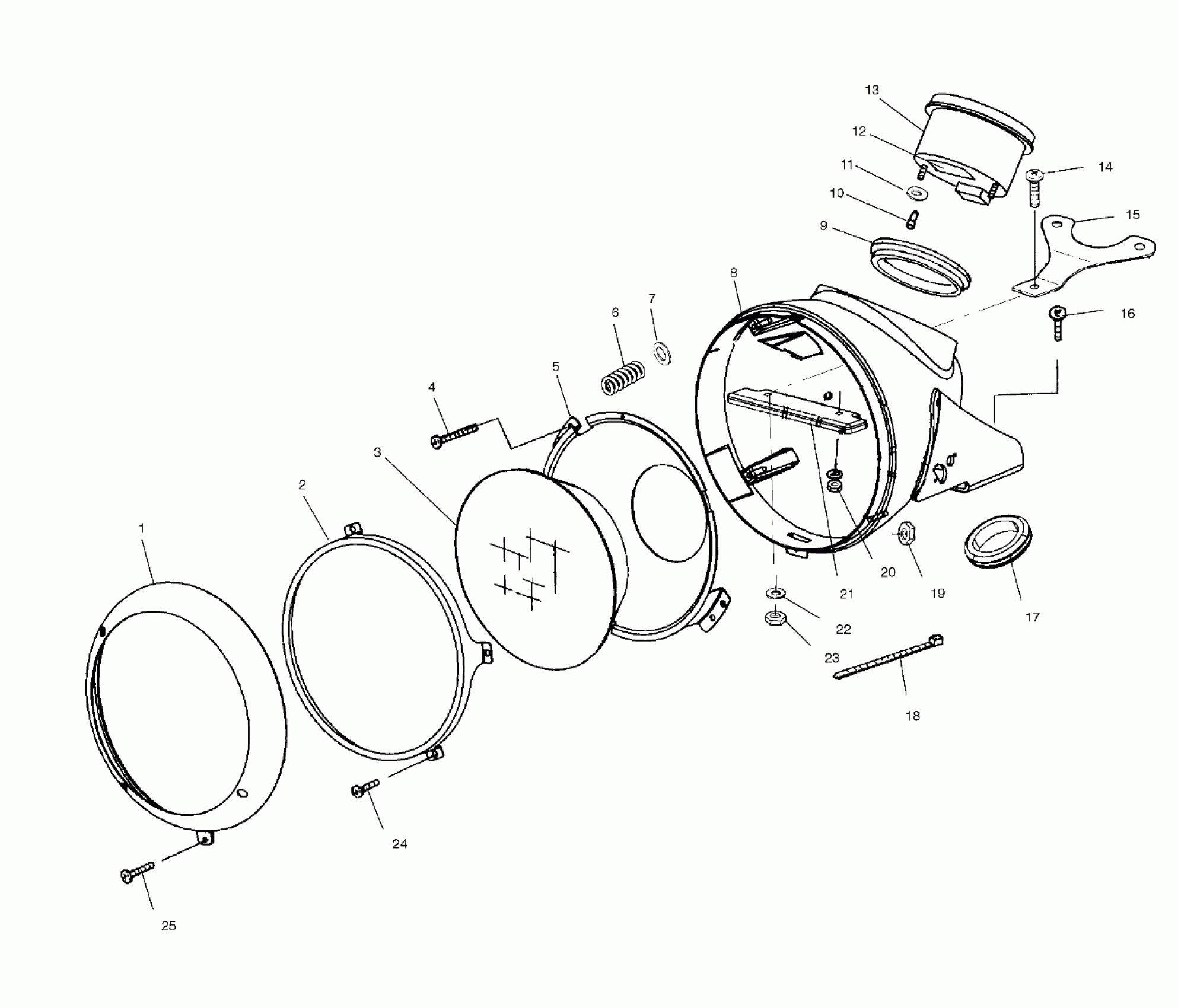

Polaris STANDARD CRUISER - V99CB15DBZ ELECTRICAL, HEADLIGHT - V99CB15LCZ (4952535253B001) Diagram

#

Description
Price

1

BEZEL,HEADLAMP

1080019

$794.99

2

RING,H/L.RETAINING

5241850

$90.99

3

HEADLIGHT,SEALEDBEAM,7 1/4"

4010160

Unavailable

4

SCREW (10)

7517623

$2.76

5

MT,INNER H/L HSG. Substituted by 5244505

5241849

$118.08

6

SPRING,ADJ.H/L.

7041644

Unavailable

7

WASHER(10)

7556093

$2.17

8

HOUSING,HEADLIGHT,KIT Substituted by 2201649 (Incl. 19)

2201526

$794.99

9

GASKET,SPEEDO

5811529

$17.94

10

LAMP INDICATOR,SPEEDO

2410102

$15.87

11

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22

12

COVER,SPEEDOMETER

5432695

Unavailable

13

SPEEDO/TACH GAUGE ASM. Substituted by 3280381

3280261

Unavailable

14

SCREW (10)

7517494

$8.99

15

BRKT,HEADLIGHT STIFFENING

5243286

Unavailable

16

SCR-SOCHD,M8X16,0600084

7517523

$5.22

17

GROMMET,H/L HSG/WIRE

5411350

$4.37

18

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

19

NUT (10)

7547126

$3.48

20

NUT Substituted by 7547120

7547041

$5.22

21

RETAINER,SPEEDO,BLK.

5211872-067

$58.33

22

WASHER (10)

7556088

$4.76

23

NUT,FLEXLOC,M6 Substituted by 7547120

7547079

$5.22

24

SCREW

7517681

$2.60

25

SCREW,SS.

7517368

$1.30
