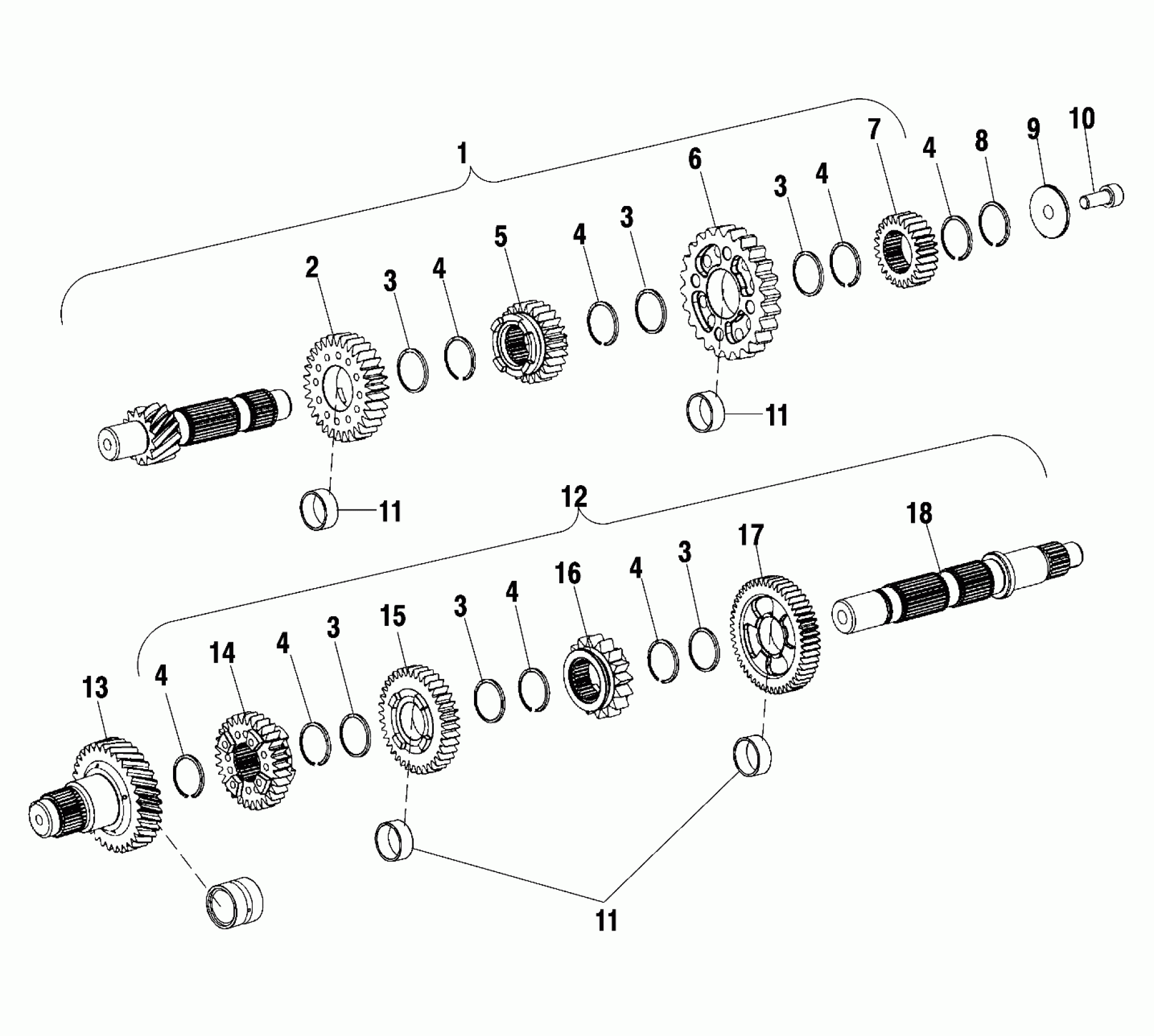

Polaris STANDARD CRUISER - V99CB15DBZ DRIVE TRAIN, TRANSMISSION - V99CB15LCZ (4952535253C014) Diagram

#

Description
Price

1

SHAFT,COUNTER,13T

6230117

Unavailable

1

COUNTERSHAFT ASM (Incl. 1-7,11)

3230538

Unavailable

2

GEAR,2ND,32T,COUNTERSHAFT

6230119

Unavailable

3

WASHER,THRUST

5211756

$4.51

3

WASHER,THRUST

5211756

$4.51

3

WASHER,THRUST

5211756

$4.51

3

WASHER,THRUST

5211756

$4.51

3

WASHER,THRUST

5211756

$4.51

3

WASHER,THRUST

5211756

$4.51

4

RING,RETAINER(10)

7710455

$3.02

4

RING,RETAINER(10)

7710455

$3.02

4

RING,RETAINER(10)

7710455

$3.02

4

RING,RETAINER(10)

7710455

$3.02

4

RING,RETAINER(10)

7710455

$3.02

4

RING,RETAINER(10)

7710455

$3.02

4

RING,RETAINER(10)

7710455

$3.02

4

RING,RETAINER(10)

7710455

$3.02

5

GEAR,3RD,COUNTERSHAFT,MACH,26T

6230168

Unavailable

6

GEAR,1ST,24T,COUNTERSHAFT

6230118

Unavailable

7

GEAR,4TH,26T,COUNTERSHAFT

6230121

$141.27

8

RING,EXT [No Longer Available]

7710476

$2.43

9

WASHER,FLAT

7556057

Unavailable

10

SCREW(10)

7517587

$2.17

11

BEARING,ROLLER

3584006

Unavailable

11

BEARING,ROLLER

3584006

Unavailable

11

BEARING,ROLLER

3584006

Unavailable

12

MAINSHAFT (Incl. 3,4,8,12,14,15,16,17)

3230539

Unavailable

13

BEARING,ROLLER,28X37X30

3584007

$48.00

13

GEAR ASM,5TH (Incl. Bearing)

1341213

$393.55

14

GEAR,2ND,MAINSHAFT,MACH,32T

6230169

Unavailable

15

GEAR,3RD,38T,MAINSHAFT

6230114

Unavailable

16

GEAR,1ST,MAINSHAFT,MACH,16T

6230167

Unavailable

17

GEAR,4TH,51T,MAINSHAFT

6230115

Unavailable

18

SHAFT,MAIN

6230111

Unavailable
