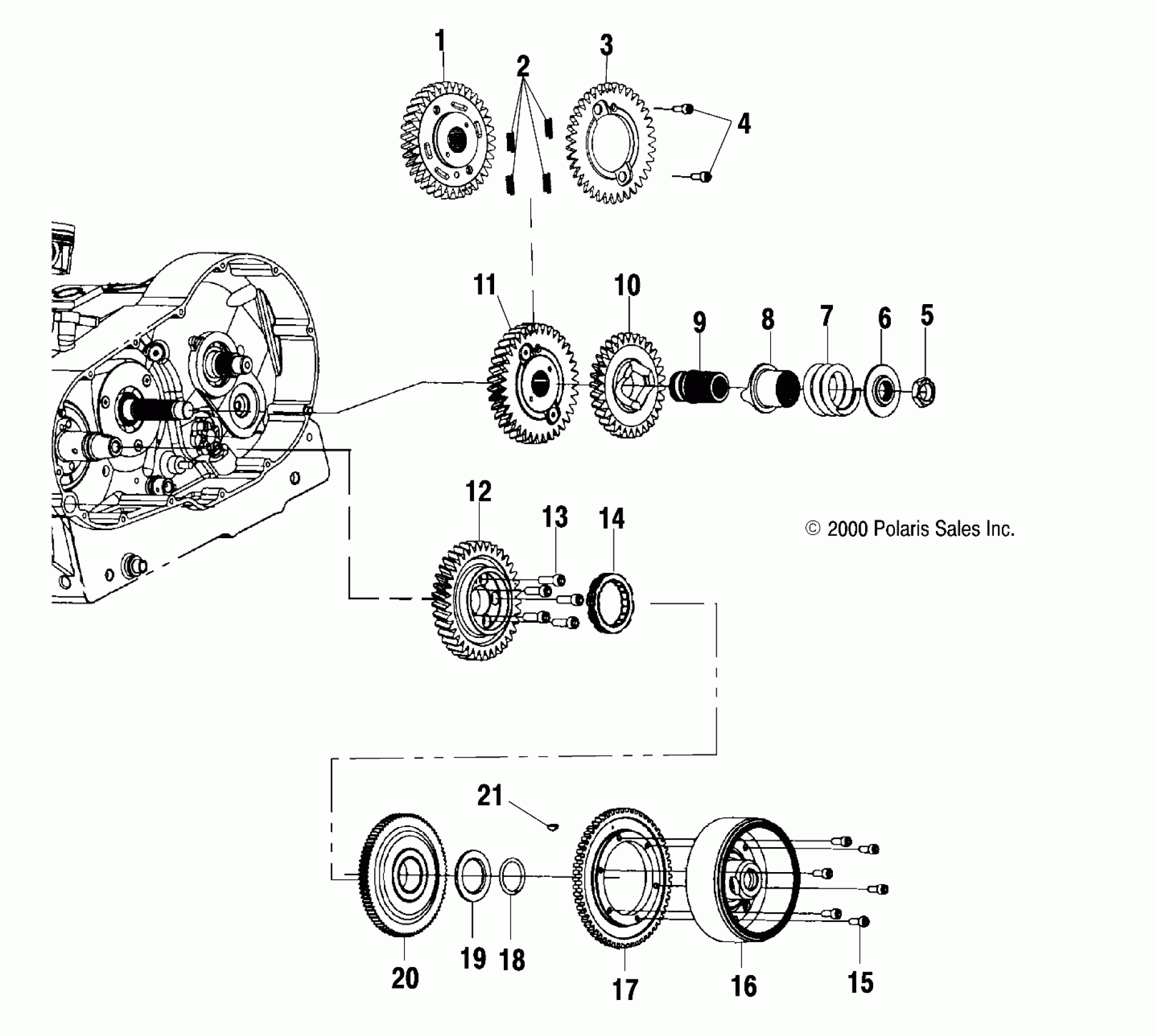

Polaris STANDARD CRUISER - V99CB15DBZ DRIVE TRAIN, PRIMARY DRIVE - V99CB15LCZ (4952535253C011) Diagram

#

Description
Price

1

GEAR,36T,SPLIT,DRIVE

6230135

$312.99

2

SPRING,SPLIT GEAR

7041579

$26.19

3

GEAR,36T,SPLIT,BACKLASH

6230136

$369.99

4

BOLT,SHLDR.

7517348

$6.19

5

NUT (10)

7547019

$26.17

6

FLANGE,COMPENSATOR

5131699

$69.84

7

SPRING,COMPENSATOR,1500#

7041614

Unavailable

8

SLIDER,COMPENSATOR

6110017

$155.56

9

COMPENSATOR

6110016

$123.02

10

GEAR-COMPENSATOR,SPUR,30T,MACH

6230157

$131.75

11

GEAR ASM,SPLIT,36T (Incl. 1-4)

1341208

$369.99

12

GEAR,CRANKSHAFT,PRI.DRIVE

6230127

$345.54

13

SCREW,SOCHD,M8X25

7517260

Unavailable

14

CLUTCH STARTER DRIVE

4060156

Unavailable

15

SCREW,SOCHD,M6X15

7517272

$7.19

16

FLYWHEEL

3031005

$298.99

17

ADAPTER,FLYWHEEL

3031006

Unavailable

18

RING,RTNG,RND,30.8X3.6 W/35DEG

7710490

Unavailable

19

WASHER,FLAT(10)

7556038

$6.98

20

GEAR ASM,CRNKSHFT,STRT.DRV.

1201744

$237.30

21

KEY-WOODRUFF,4X5

7721122

$7.84
