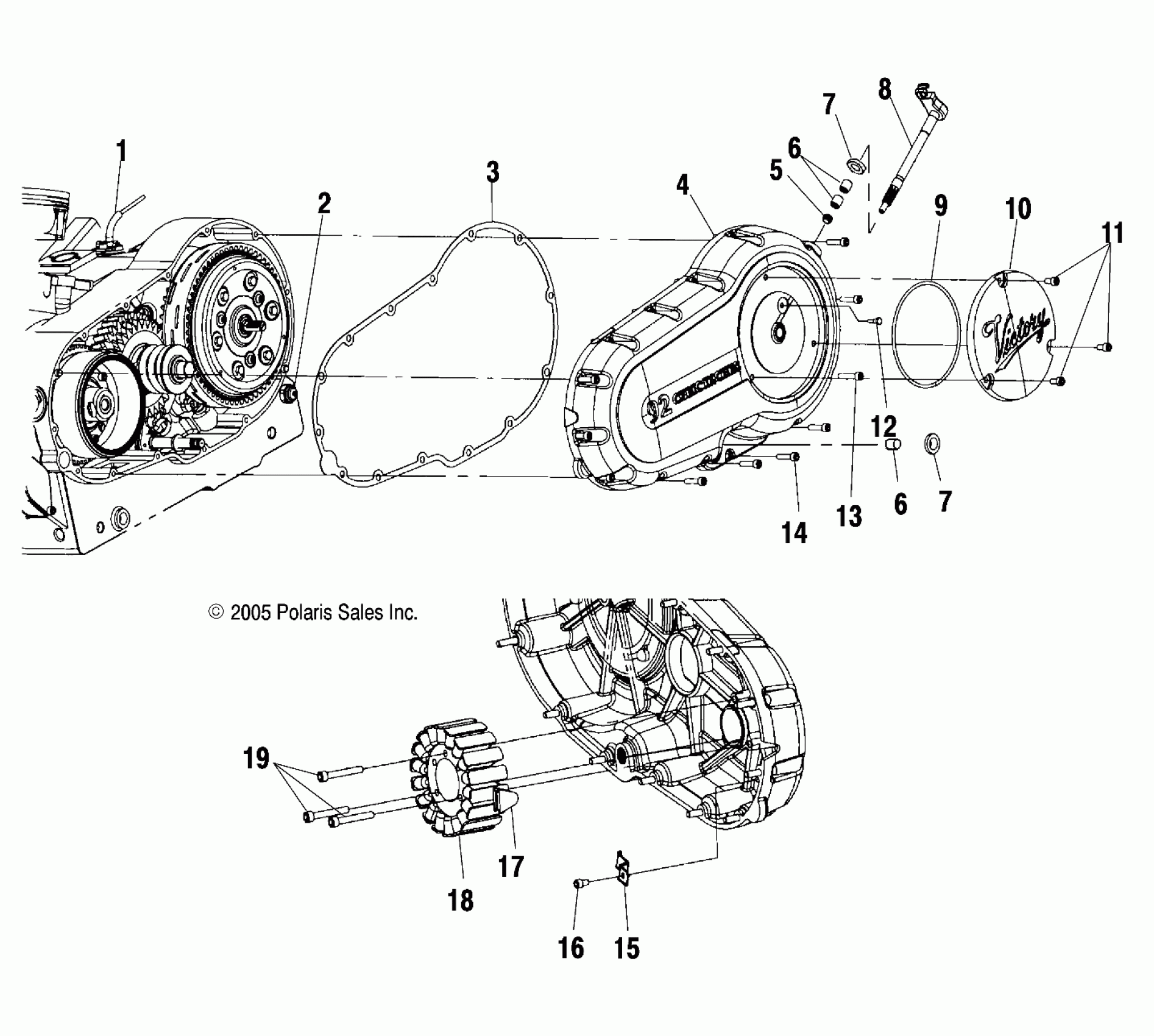

Polaris STANDARD CRUISER - V99CB15DBZ DRIVE TRAIN, PRIMARY COVER - V99CB15LCZ (4952535253C012) Diagram

SCREW,SOCHD,M6X15

7517272

$7.84

Sensor, Vehicle Speed (See Footnote) (See Electrical Pg. B11, Ref. 12)

----

Unavailable

Sensor, Oil Pressure (See Footnote) (See Electrical Pg. B11, Ref. 6)

----

Unavailable

GASKET,PRIMARY COVER

5830119

$55.56

COVER,PRIMARY Substituted by 2201729 (Incl. 5,6,7)

1201730

Unavailable

BEARING,NDL,M7X11X9,CLTSHHF

3512106

$21.81

BEARING,NDL,M12X16X10,CLTSHF

3552105

$21.81

BEARING,NDL,M12X16X10,CLTSHF

3552105

$21.81

SEAL,12X22X7

3610059

Unavailable

SEAL,12X22X7

3610059

Unavailable

PINION,CLUTCH

1080040

$159.99

O-Ring

5411499

$11.51

PLATE,EMBLEM,PRI.CVR,MACH

5131531

$142.86

SCREW (10)

7517405

$10.32

SCR-M5X.8X16,HEXHD,DOG POINT

7517499

$10.99

SCREW,SOCHD,M6X30(10)

7517301

$2.99

SCREW,SOCHD,(10)

7517259

$5.56

CLIP,STATOR WIRE

5243078

$6.98

SCREW,SOCHD,M5X8(10)

7517515

$8.71

GROMMET,STATOR WIRE(SPLIT)

5811837

$8.97

STATOR

4060654

Unavailable

SCREW,SOCHD,M6X40

7517261

$5.56
