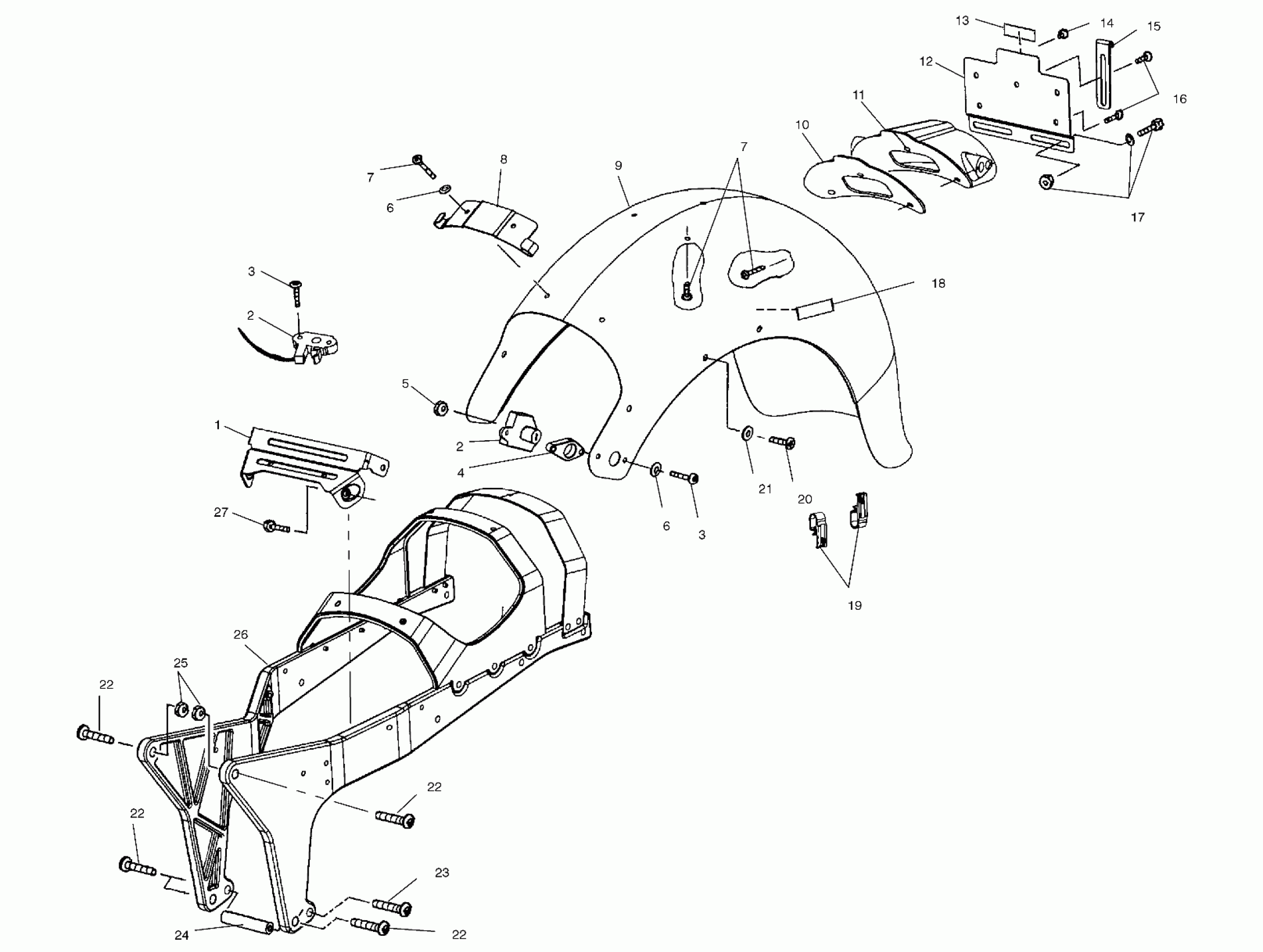

Polaris STANDARD CRUISER - V99CB15DBZ CHASSIS, SUBFRAME and REAR FENDER - V99CB15DAZ (4952535253A006) Diagram

#

Description
Price

1

LOCK,R.SEAT,BLK.

1080025-067

$113.32

2

LOCK,SEAT [No Longer Available]

7010088

$154.76

2

LOCK,SEAT [No Longer Available]

7010088

$154.76

3

Screw

7517355

$7.84

3

Screw

7517355

$7.84

4

SPACER,SEATLOCK RELEASE,BLK

5131799-067

$23.81

5

NUT Substituted by 7547120

7547041

$5.22

6

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22

6

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22

7

SCREW (10) Substituted by 7517705

7517370

$6.79

7

SCREW (10) Substituted by 7517705

7517370

$6.79

8

SUPPORT,HELMET HOOK,REAR [No Longer Available]

5241889

Unavailable

9

FENDER,REAR,CRS,BLK.

1013025-266

Unavailable

9

FENDER,REAR

1013025-1088

$858.99

9

FENDER,REAR

1013025-1084

$869.99

10

PAD,SIGNAL/LICENSE BRKT.

5811539

$4.39

11

BRKT,SIGNAL,MACH

5131819

$308.99

12

BRKT,LICENSE PLATE

5242249

$77.78

13

REFLECTOR,REAR,RED

5432992

Unavailable

14

BUMPER,GROMMET

5411323

$3.17

15

RETAINER,LIC.PLATE

5241885

$22.62

16

SCREW (10)

7517494

$8.99

17

LICENSE PLATE HARDWARE,KIT

2201394

Unavailable

18

REFLECTOR,SIDE,RED

5432965

$1.83

19

CLIP,ELECTRICAL

7080737

$4.76

20

SCREW (10)

7517484

$4.76

21

BUSHING,R.FENDER

5131943

Unavailable

22

SCREW

7517367

$13.99

22

SCREW

7517367

$13.99

22

SCREW

7517367

$13.99

22

SCREW

7517367

$13.99

23

SCREW

7517554

Unavailable

24

SUPPORT,PASS PEG,BLK

5010465-067

$12.30

25

NUT (10)

7547039

$4.76

26

SUBFRAME ASM,REAR,BLK.

1080006-067

Unavailable

27

SCREW (10)

7517438

$4.35
