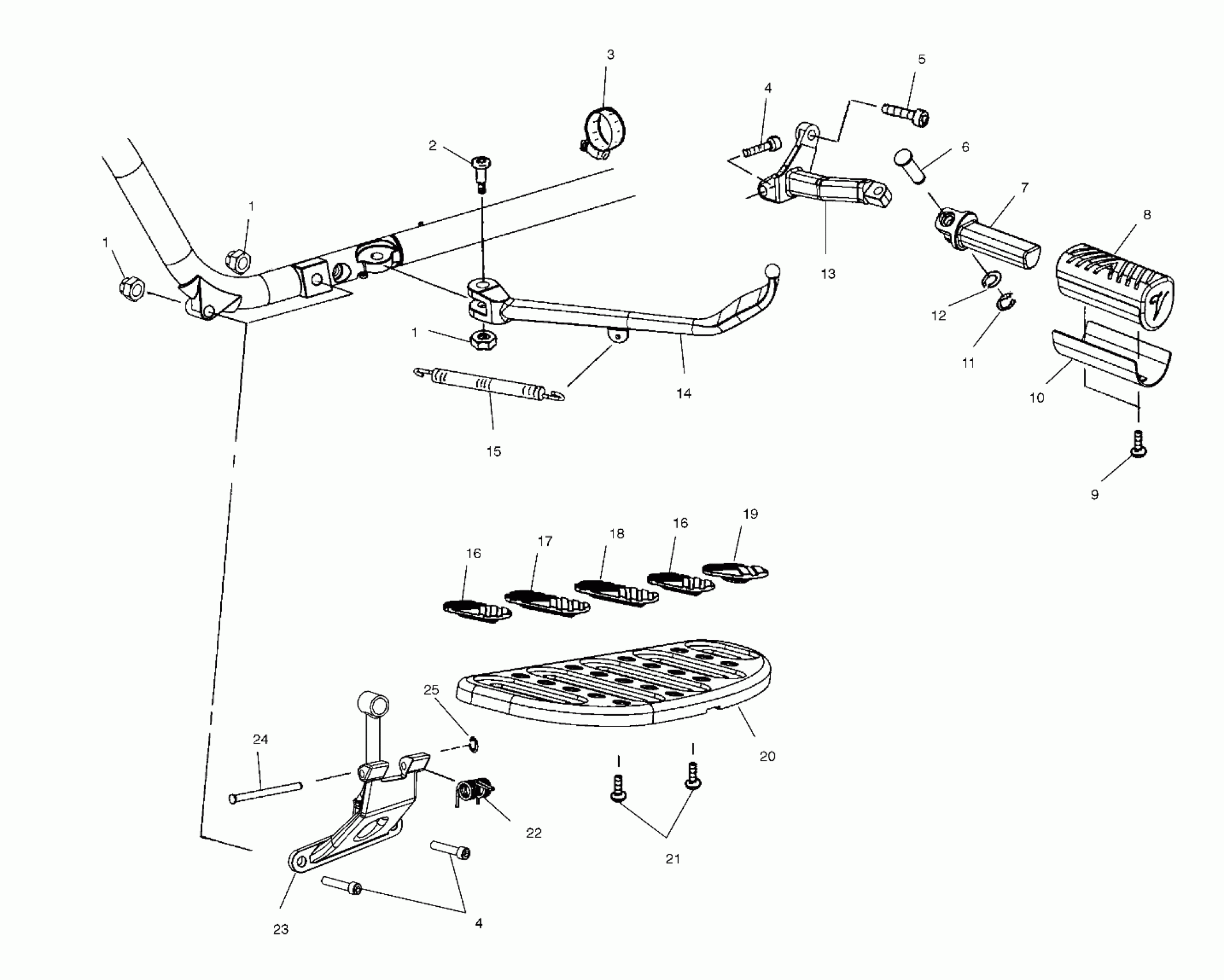

Polaris STANDARD CRUISER - V99CB15DBZ CHASSIS, FLOOR BOARD and SIDE STAND - V99CB15DAZ (4952535253A008) Diagram

#

Description
Price

1

NUT (10)

7547039

$4.76

1

NUT (10)

7547039

$4.76

1

NUT (10)

7547039

$4.76

2

Screw

7517404

Unavailable

3

CLAMP-WORM GEAR,CUSHION

7080831

$7.06

4

SCREW,SOCHD,M10X50

7517526

$3.02

4

SCREW,SOCHD,M10X50

7517526

$3.02

5

SCREW (LH Side Only)

7517554

Unavailable

6

PIN,PIVOT,PASS.PEG,SS

5131857

$23.41

7

FOOTPEG,PASS,LH

5630801

$65.48

7

FOOTPEG,PASS,RH

5630802

$130.95

8

PAD,FOOTPEG,PASS.

5411333

$12.30

8

PAD,RH,FOOTPEG,PASS.

5411334

$10.63

9

SCREW

7517359

$4.35

10

DESC NOT_AVAILABLE

5243767

Unavailable

11

E-CLIP,M8,STEEL(10)

7710493

$0.68

12

WASHER,SPRING,SS.(10)

7556046

Unavailable

13

SUPPORT-FTPGS,PASS,LH,BLK. Substituted by 5211828

5211828-067

$77.78

13

SUPPORT-FTPGES,PASS,RH,BLK.

5211829-067

$195.99

14

STAND,SIDE Substituted by 1013062

5630719

$113.49

15

SPRING-SIDESTAND

7042047

$49.99

16

PAD,F'BOARD,#1/#4

5411267

$11.51

16

PAD,F'BOARD,#1/#4

5411267

$11.51

17

PAD,F'BOARD,#2

5411268

$11.51

18

PAD,F'BOARD,#3

5411269

$11.51

19

PAD,F'BOARD,#5

5411270

Unavailable

20

FLOORBOARD,LH,MACH

5131590

$288.99

20

FLOORBOARD,RH,MACH

5131591

$288.99

21

SCREW(10)

7517694

$8.71

22

SPRING,F'BOARD SUPPORT

7041623

$32.37

23

SUPPORT-FLBRD,LWR,RH,MACH,BLK.

5131691-067

$216.99

23

SUPPORT,SHIFT,BLK

1012978-067

Unavailable

24

PIN,LOW.F'BOARD SUPPORT

7661018

Unavailable

25

E-CLIP,M6,STEEL(10)

7710492

Unavailable
