- STANDARD CRUISER - V99CB15DBZ
BRAKES, REAR - V99CB15LCZ (4952535253B004)

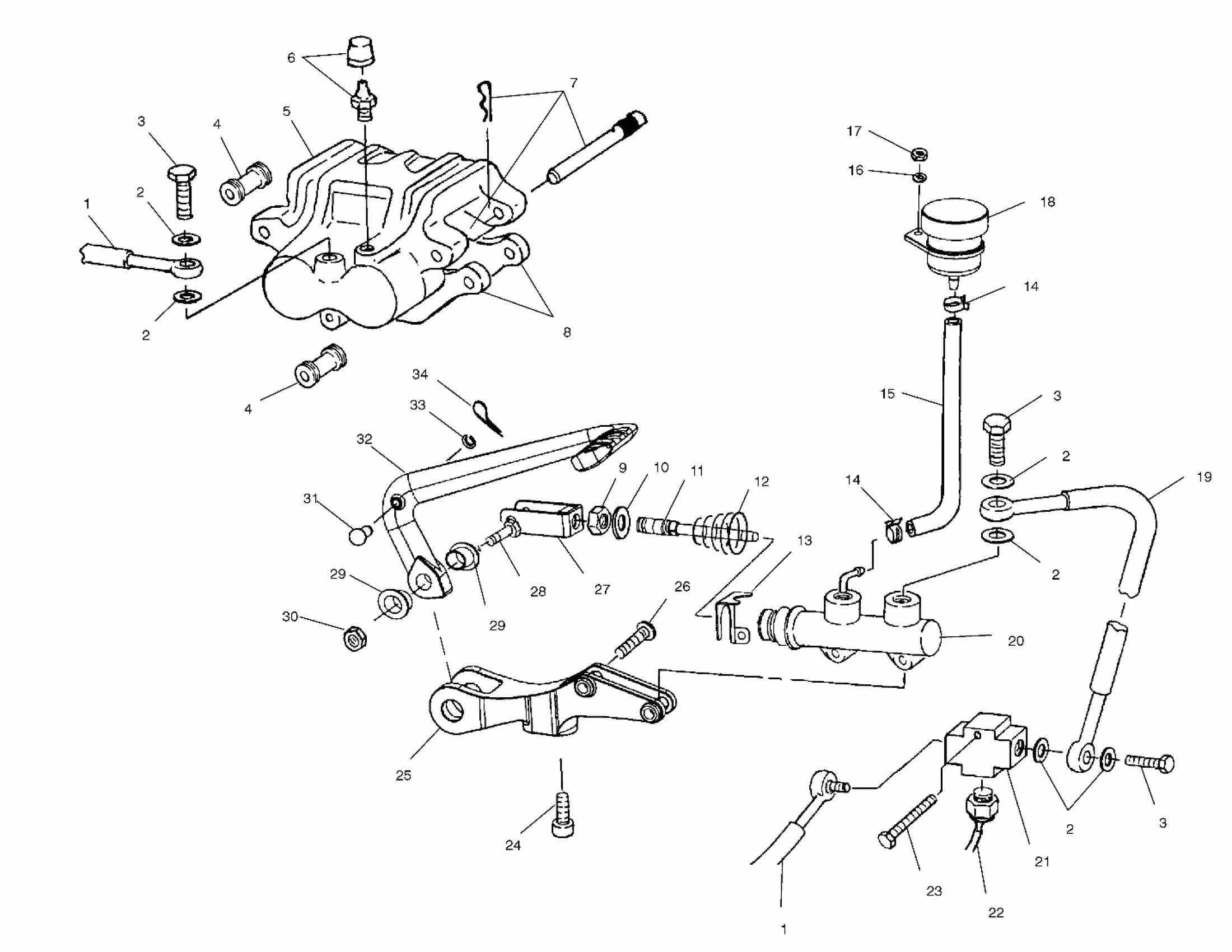

Polaris STANDARD CRUISER - V99CB15DBZ BRAKES, REAR - V99CB15LCZ (4952535253B004) Diagram
#
1
HOSE,R.BRAKE,R.SEGMENT
1930887
Unavailable
1
HOSE,R.BRAKE,R.SEGMENT
1930887
Unavailable
2
WASHER,BANJO,COPPER
7556028
$1.59
2
WASHER,BANJO,COPPER
7556028
$1.59
2
WASHER,BANJO,COPPER
7556028
$1.59
2
WASHER,BANJO,COPPER
7556028
$1.59
2
WASHER,BANJO,COPPER
7556028
$1.59
3
BOLT,BRAKE,BANJO,SPCL
1930848
Unavailable
3
BOLT,BRAKE,BANJO,SPCL
1930848
Unavailable
3
BOLT,BRAKE,BANJO,SPCL
1930848
Unavailable
4
KIT,BOOTS,R.CALIPER
2201174
Unavailable
4
KIT,BOOTS,R.CALIPER
2201174
Unavailable
5
CALIPER ASM,REAR,2 PISTON
1930868
Unavailable
5
Bracket, Rear Brake Caliper
-------
Unavailable
6
KIT,BLEEDER SCREW,BOOT
2201173
$12.99
7
KIT,PINS,RET,SPRNG,REAR
2201175
$21.81
8
KIT,BRAKE PAD,REAR
2201171
Unavailable
9
NUT,HEXHD,M8
7547050
$3.02
10
WASHER,(10)
7556045
$8.79
11
ROD,BRAKE Substituted by 5132298
5020923
$38.89
12
SPRING-BRAKE PEDAL,BLK
7041746-067
$13.49
13
BRKT,BRAKE SPRING
5242952-067
$22.99
14
CLAMP,HOSE,DBL.BAND
7080785
$8.71
14
CLAMP,HOSE,DBL.BAND
7080785
$8.71
15
HOSE,REAR BRAKE Substituted by 8450082-41
8450082
Unavailable
16
SPACER,HEADED,(RATCHET) [No Longer Available]
5020919
$2.89
17
NUT,FLEXLOC,M4 Substituted by 7547118
7547073
Unavailable
18
RESERVOIR,R.MASTER CYL.
1930882
Unavailable
19
HOSE,R.BRAKE,FR.SEGMENT
1930867
Unavailable
20
MASTERCYL,REAR,BMM
1930865
Unavailable
21
MANIFOLD,REAR BRAKE Substituted by 1910351
1910266
Unavailable
22
SW,PRESSURE,R.BRAKE
4110238
Unavailable
23
SCREW (10)
7516411
$0.68
24
SCREW,SOCHD,M8X20
7517410
Unavailable
25
SUPPORT,BRAKE PEDAL
5131688-067
$130.95
26
SCREW,(10)
7517391
$8.79
27
CLEVIS,ROD,BRAKE
1080038
$133.99
28
SCREW Substituted by 7517715
7517576
Unavailable
29
BUSHING,PEDAL
5020904
Unavailable
29
BUSHING,PEDAL
5020904
Unavailable
30
NUT (10)
7547039
Unavailable
31
PIN-CLEVIS,BRAKE PEDAL
7661063
Unavailable
32
PEDAL-BRAKE
5132160
Unavailable
33
WASHER (10)
7556088
$4.79
34
PIN,COTTER(10)
7661070
$0.51
