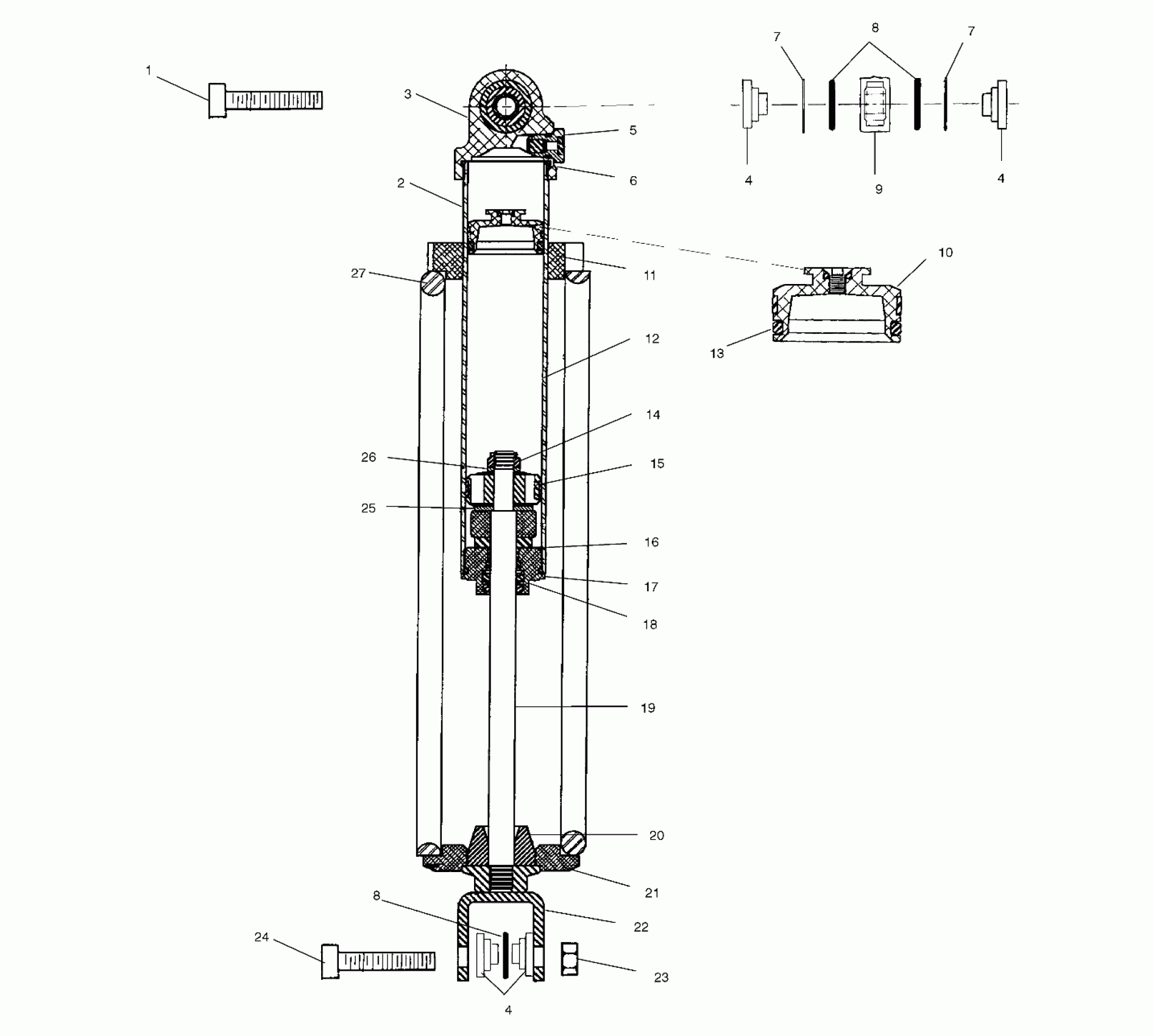

Polaris STANDARD CRUISER - V99CB15DA SUSPENSION, SHOCK, REAR - V99CB15DB (4947594759B005) Diagram

#

Description
Price

-

SHOCK ASM,REAR

1580108

Unavailable

1

SCREW (Rear Shock Mounting)

7517367

$13.99

1

SCREW Substituted by 7517962 (Rear Shock Mounting)

7517364

$7.94

2

SHOCK

1500174

Unavailable

3

BODY CAP,V92C

1500175

Unavailable

4

REDUCER,STD.CRUISER Substituted by 1500092

1500173

Unavailable

4

REDUCER,STD.CRUISER Substituted by 1500092

1500173

Unavailable

4

REDUCER,STD.CRUISER Substituted by 1500092

1500173

Unavailable

5

Screw

1500019

$6.35

6

O-RING,BODY,FOX,.139W-1.234ID

1500004

$1.83

7

RING,SNAP,(FOX SP)

7710446

$6.19

7

O-RING,(FOX),SP

1500093

$7.27

7

RING,SNAP,(FOX SP)

7710446

$6.19

7

O-RING,(FOX),SP

1500093

$7.27

8

BEARING,SPHERICAL

3513506

$64.59

8

O-RING,(FOX),SP

1500093

$7.27

8

BEARING,SPHERICAL

3513506

$64.59

8

O-RING,(FOX),SP

1500093

$7.27

9

RING,SNAP,(FOX SP)

7710446

$6.19

9

BEARING,SPHERICAL

3513506

$64.59

10

NUT (10)

7547039

$4.76

10

PISTON

1500011

$59.52

11

PISTON

1500011

$59.52

11

RING-SPRING PRELOAD Substituted by 1500237

1500176

Unavailable

12

BODY-1.459BORE,5.75OTLG,STEEL

1500181

$115.08

12

RING-SPRING PRELOAD Substituted by 1500237

1500176

Unavailable

13

O-RING-HIGH TEMP,IFP

1500180

Unavailable

13

BODY-1.459BORE,5.75OTLG,STEEL

1500181

$115.08

14

NUT,LOCK

1500016

$12.70

14

O-RING-HIGH TEMP,IFP

1500180

Unavailable

15

NUT,LOCK

1500016

$12.70

15

DAMPER,PISTONRING,FOX

1500002

$31.75

16

DAMPER,PISTONRING,FOX

1500002

$31.75

16

BUMPER,RUBBER

1500074

$5.65

17

O-RING,(10).103W-1.299ID

1500020

$10.63

17

BUMPER,RUBBER

1500074

$5.65

18

O-RING,(10).103W-1.299ID

1500020

$10.63

18

BRG.ASM,W/BLEED&DU. Substituted by 1500009

1500146

Unavailable

19

SHAFT-0.498 OD X 5.85 TLG

1500177

$68.25

19

BRG.ASM,W/BLEED&DU. Substituted by 1500009

1500146

Unavailable

20

BUMPER,JOUNCE

5410855

Unavailable

20

SHAFT-0.498 OD X 5.85 TLG

1500177

$68.25

21

BUMPER,JOUNCE

5410855

Unavailable

21

RETAINER-SPRING,V92C

1500178

Unavailable

22

RETAINER-SPRING,V92C

1500178

Unavailable

22

EYELET-CLEVIS,V92C

1500179

Unavailable

23

NUT (10)

7547039

$4.76

23

EYELET-CLEVIS,V92C

1500179

Unavailable

24

SCREW (Front Shock Mounting)

7517358

$5.56

25

PLATE,TOP OUT

1500017

Unavailable

26

BUSHING,BACKUP

1500015

$6.76

27

SPRING-SHOCK,V92C,460 LBS

7041759

Unavailable
