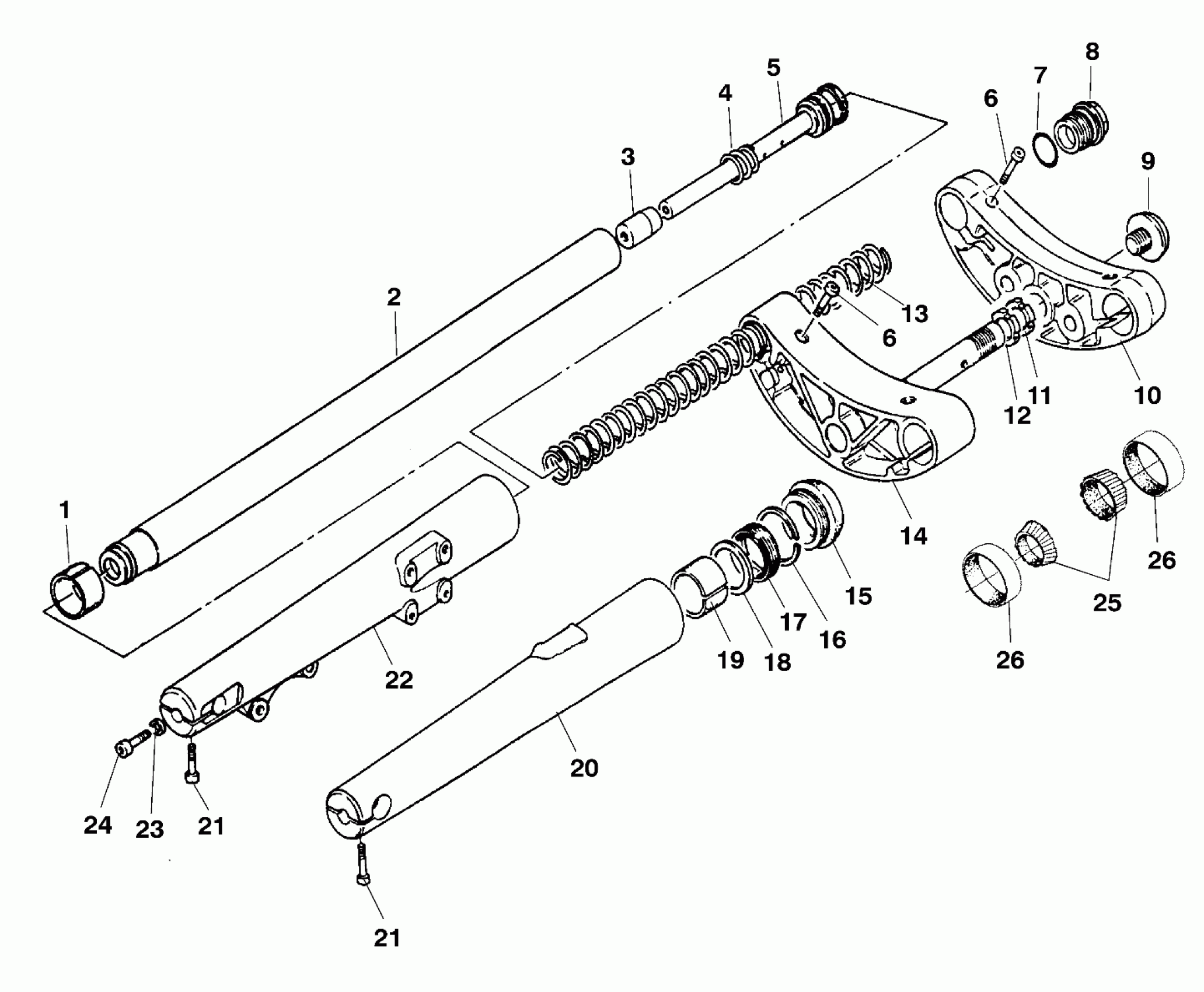

Polaris STANDARD CRUISER - V99CB15DA SUSPENSION, FRONT FORKS - V99CB15DA (4947594759A011) Diagram

#

Description
Price

-

FORKLEG ASM,LH,45MM. (Incl. 1-5,7-9,13-24)

1843081

Unavailable

-

FORKLEG ASM,RH,45MM. (Incl. 1-5,7-9,13-24)

1843082

$504.99

-

OIL,FORK,MARZOCCHI SAE7.5 Substituted by 2872184

2871985

$12.39

1

BUSHING,LOWER

3585714

$27.78

2

TUBE,STANCHION,45MM

5131505

Unavailable

3

FOOT,BUFFER

5131498

Unavailable

4

SPRING,REBOUND

7041624

$10.63

5

SEGMENT,ROD DAMPER

1500171

$5.71

5

KIT,ROD DAMPER

2201122

$122.21

5

ROD,DAMPER

1500131

$94.44

6

CLAMP,STAN.TUBE FASTENER

1500170

$6.98

6

CLAMP,STAN.TUBE FASTENER

1500170

$6.98

7

O-RING,FORK

5411330

$2.14

8

PLUG,FORK

5131502

$65.48

9

BOLT,STEERING POST,CAP

5131497

$116.67

10

CLAMP,TRIPLE,UPPER Substituted by 5132376

5131503

Unavailable

11

NUT-STEERING POST,UPPER

5131953

$17.46

12

NUT,STEERING POST

5131496

$33.33

13

SPRING,COMP.

7041684

Unavailable

14

CLAMP ASM,TRIPLE,LOWER Substituted by 1820811 (Incl. 6,9,11,12)

1843096

$281.75

15

CAP,DUSTSEAL

1500167

Unavailable

16

RING,STOP

5211827

$14.56

17

SEAL,OIL

3610068

Unavailable

18

CAP,OILSEAL

5131504

$20.22

19

BUSHING,UPPER

3585715

$43.65

20

SLIDER UNIT,LH Substituted by 1843081

1843094

Unavailable

21

CLAMP,AXLE FASTENER

1500168

Unavailable

21

CLAMP,AXLE FASTENER

1500168

Unavailable

22

SLIDER UNIT,RH

1843095

$504.99

23

WASHER,OILSEAL

3610069

$23.81

24

RETAINER,DAMP.TUBE FASTENER

1500169

$4.21

25

BEARING,TPR.RLR,SEALED

3554510

Unavailable

26

BRG,TAPER,ROLL CUP

3554507

$31.99

26

BRG,TAPER,ROLL CUP

3554507

$31.99
