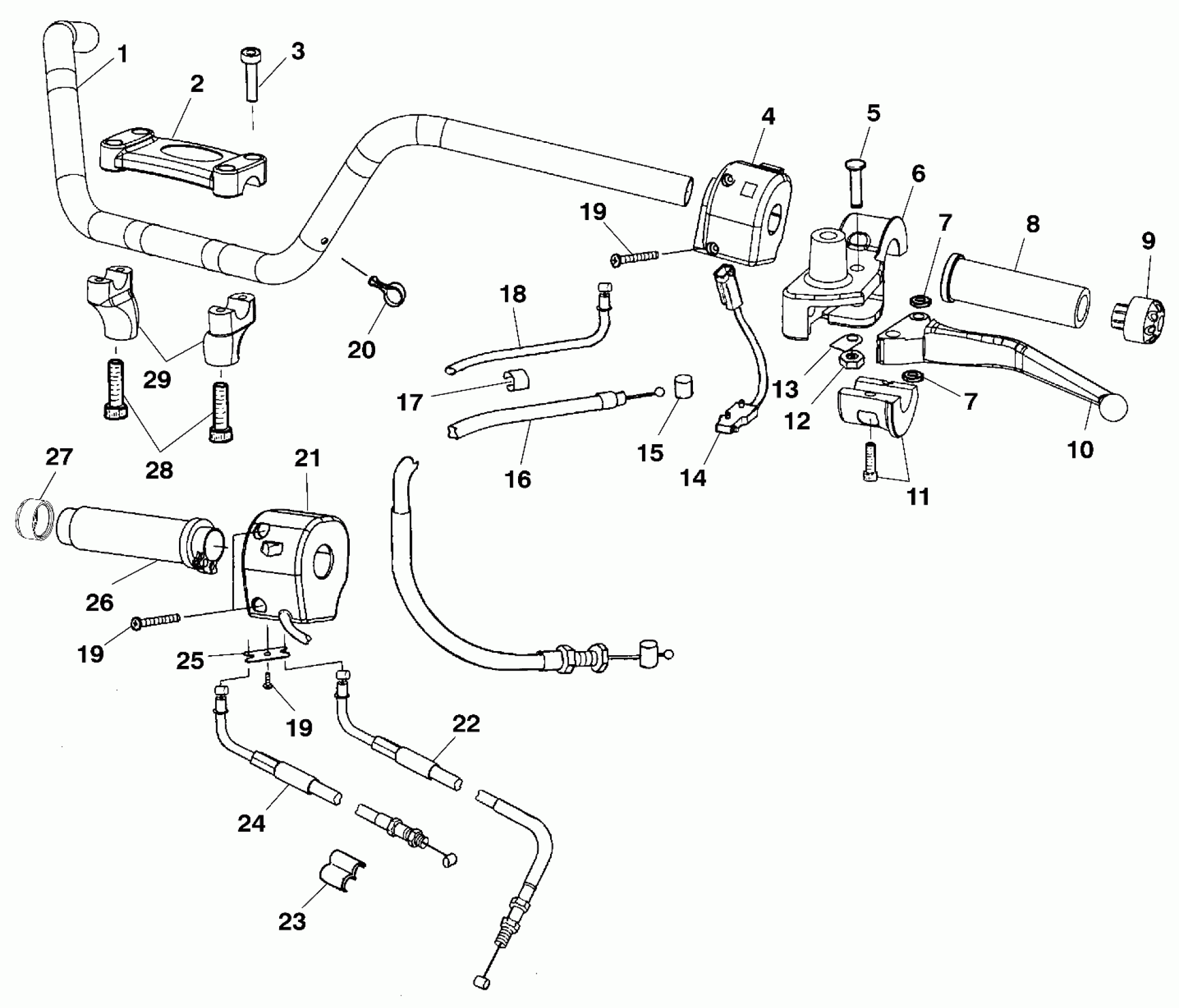

Polaris STANDARD CRUISER - V99CB15DA STEERING, HANDLEBAR - V99CB15DA (4947594759A010) Diagram

#

Description
Price

1

HANDLEBAR-STD CRUISER

5243728

Unavailable

2

CLAMP,H'BAR CAP Substituted by 5333799

5131499

$61.90

3

SCREW (10)

7517361

$23.81

4

SW,LH,HANDCONTROL,W/PT

4110240

Unavailable

5

KIT,HARDWARE,LEVER CLUTCH (7,12,13)

2201229

$35.08

5

PIN,CLUTCH LEVER PIVOT

5020946

$21.03

6

BRKT,CLUTCH/MIRROR,LH

5131654

$30.32

7

WASHER, CLUTCH LEVER

----

Unavailable

7

WASHER, CLUTCH LEVER

----

Unavailable

8

GRIP,LH,H'BAR

5411256

$44.51

9

CAP,LH,H'BAR END

5432692

Unavailable

10

LEVER,HAND,CLUTCH,LH,MACH

5131562

$91.27

11

KIT,HARDWARE,CLAMP (Incl. Clamp & Screws)

2201230

$45.38

11

CAP,CLUTCH/MIRROR,LH

5131655

Unavailable

11

SCREW,SOCHD,M6X20

7517630

$2.38

12

NUT, NYLOK

----

Unavailable

13

CLIP, SWITCH

----

Unavailable

14

SWITCH,MICRO,CLUTCH SAFETY

4110257

Unavailable

15

BUSHING-CLUTCH CABLE,UPPER

5433071

Unavailable

16

CABLE,CLUTCH Substituted by 7080919

7080676

$164.43

17

CLIP,CLUTCH,FAST IDLE CABLES

5433070

Unavailable

18

CABLE,FAST IDLE

7080716

Unavailable

19

SCREW (10) Substituted by 7517366

7517420

$5.22

19

SCREW (10) Substituted by 7517366

7517420

$5.22

19

SCREW (10) Substituted by 7517366

7517420

$5.22

20

DART,HANDLEBAR,(10)1/2"

5433140

Unavailable

21

SW,RH,HANDCONTROL,W/PT

4110241

$124.99

22

CABLE,THROTTLE,PUSH

7080724

Unavailable

23

CLIP,THROTTLECABLES,DUAL

5433039

$9.52

24

CABLE,THROTTLE

7080725

Unavailable

25

RETAINER,RH,THROT.CABLE

5242448

Unavailable

26

GRIP,H'BAR,THROTTLE

5411255

$38.41

27

CAP,RH,H'BAR END

5432715

$36.19

28

SCR-SOCHD,M10X60,0600084(10)

7517586

$3.02

29

RISER,H'BAR Substituted by 5132424

5131501

$49.21
