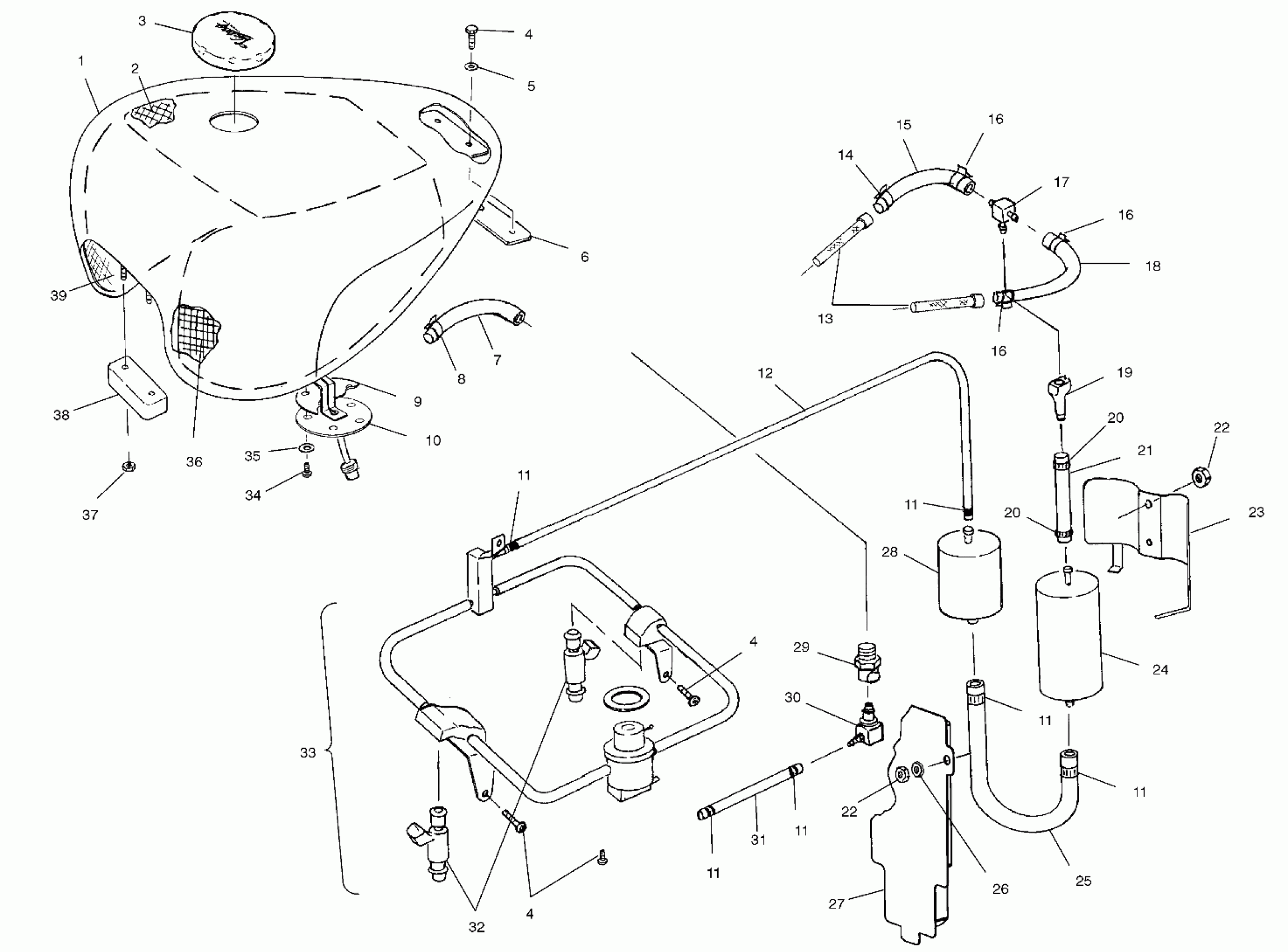

Polaris STANDARD CRUISER - V99CB15DA FUEL SYSTEM, FUEL TANK, PUMP and RAILS - V99CB15DB (4947594759D004) Diagram

#

Description
Price

1

TANK,FUEL (KYSO Blue)

1080004-1084

$1,544.99

1

TANK,FUEL (Antares Red)

1080004-1088

$1,544.99

2

SHIELD-HEAT,FUEL TANK

5830147

$144.99

3

CAP,FUEL Substituted by 5132333

5131511

Unavailable

4

SCREW (10)

7517405

$10.32

4

SCREW (10)

7517405

$10.32

4

SCREW (10)

7517405

$10.32

5

WASHER,CUSHION

7556052

Unavailable

6

ISOLATOR,R.TANK MOUNT

5411324

Unavailable

7

HOSE-VENT,FUEL TANK

2520147

Unavailable

8

CLAMP-HOSE,.375,BLACK(10)

7080829

$0.79

9

GASKET,SENDER TANK Substituted by 5811851

5811518

Unavailable

10

SENDER,FUEL LEVEL

4110231

$180.16

11

CLAMP, HOSE, S.S.(10)

7080476

$6.35

11

CLAMP, HOSE, S.S.(10)

7080476

$6.35

11

CLAMP, HOSE, S.S.(10)

7080476

$6.35

11

CLAMP, HOSE, S.S.(10)

7080476

$6.35

11

CLAMP, HOSE, S.S.(10)

7080476

$6.35

11

CLAMP, HOSE, S.S.(10)

7080476

$6.35

12

HOSE,FUEL,MANIFOLD/FILTER Substituted by 5411803

5411399

$38.75

13

FILTER,FUEL

2530031

Unavailable

14

CLAMP-HOSE BAND,5/8"OD UMP

7080795

$3.81

15

HOSE,RH,FUELTANK Substituted by 5411799

5411405

Unavailable

16

CLAMP,HOSE,DBL.BAND

7080790

Unavailable

16

CLAMP,HOSE,DBL.BAND

7080790

Unavailable

16

CLAMP,HOSE,DBL.BAND

7080790

Unavailable

17

QUICKDISC,FUELFEED,MALE,TEE

2520131

Unavailable

17

O-Ring

1500199

$4.76

18

HOSE,LH,FUELTANK Substituted by 5411929

5411404

Unavailable

19

QUICKDISC,,FUELPUMP,FEMALE

2520136

Unavailable

20

CLAMP-HOSE,.875-SS

7080474

$8.54

20

CLAMP-HOSE,.875-SS

7080474

$8.54

21

HOSE,FUEL PUMP/RAIL

5411402

$27.94

22

NUT Substituted by 7547120

7547041

$5.22

22

NUT Substituted by 7547120

7547041

$5.22

23

BRKT,FUELPUMP TOP,BLK

5211889-067

$58.73

24

PUMP,FUEL

2520128

$319.99

25

HOSE,FUEL FILTER/PUMP Substituted by 5411761

5411401

$39.68

26

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22

27

SHIELD,HEAT,FUEL PUMP (Fuel Pump)

5830148

$151.72

28

FILTER,FUEL,HI-PRESSURE (High Pressure)

2530028

$44.51

29

DISC-QUICK,FUELTANK,FEMALE

5131506

$49.21

30

O-Ring

1500199

$4.76

30

FUELLINE,QUICK DISC,MALE

5131507

Unavailable

31

HOSE,FUEL,RAIL/TANK RTN. Substituted by 5411762 (Rail/Tank Return)

5411403

$34.44

32

O-RING-BOSCH,EV-14,UPPER, BLUE

1500198

$11.90

32

Injector, Fuel

1253174

$177.13

33

RAIL,FUEL Substituted by 2520191

2520132

Unavailable

34

SCREW,BTNHD,M5X12

7517483

$34.99

35

BUSHING,FUEL SENDER Substituted by 5433452

5432577

Unavailable

36

SHIELD,HEAT,FUEL TANK,LEFT

5830163

$81.75

37

NUT Substituted by 7547121

7547045

$2.60

38

PAD,FUELTANK FRAME,FRONT

5411317

$22.06

39

SHIELD,HEAT,FUEL TANK,RIGHT

5830164

$72.99
