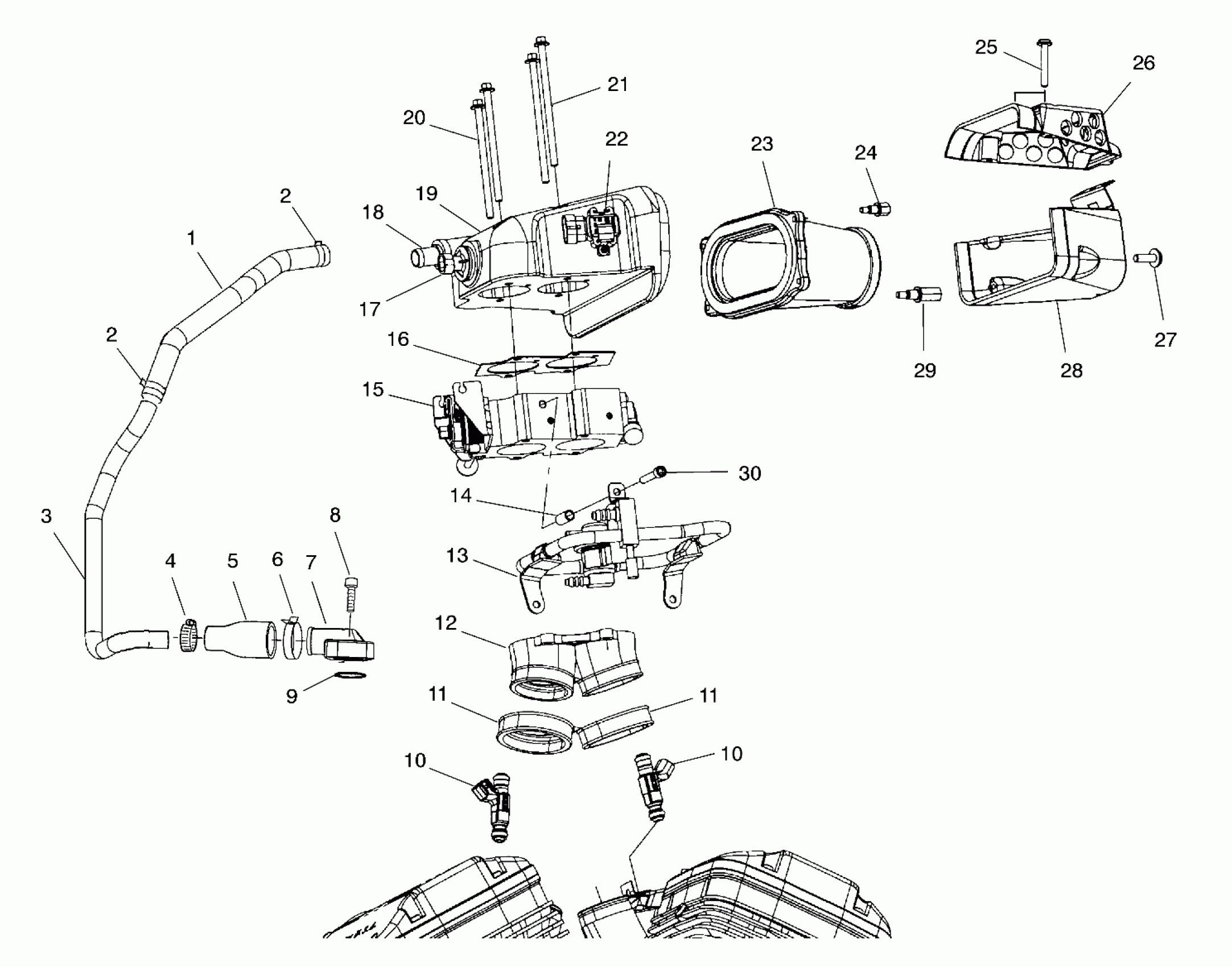

Polaris STANDARD CRUISER - V99CB15DA FUEL SYSTEM, FUEL LINES and THROTTLE BODY - V99CB15DB (4947594759D003) Diagram

#

Description
Price

-

THROTTLE BODY,V92C,KIT Substituted by 1253172 (Incl. O-Ring)

2201283

Unavailable

-

THROTTLE BODY,V92C,KIT Substituted by 1253172 (Incl. Gasket)

2201283

Unavailable

1

HOSE,BREATHER TO AIRBOX

5411223

$5.00

2

CLAMP-BREATHER HOSE,1/2

7080781

$2.17

2

CLAMP-BREATHER HOSE,1/2

7080781

$2.17

3

TUBE-BREATHER,ENGINE

5224831

$69.84

4

CLAMP,BREATHER HOSE

7080714

$1.43

5

HOSE-BREATHER TO ENGINE

5411513

$17.30

6

CLAMP-BREATHER HOSE,3/4

7080782

Unavailable

7

ADAPTER,BREATHER [No Longer Available]

5131679

$32.98

8

SCREW,SOCHD,M6X20

7517384

$8.79

9

O-RING

5411279

Unavailable

10

O-RING-BOSCH,EV-14,UPPER, BLUE

1500198

$11.99

10

CLIP,INJECTOR CLOCKING

7670103

$3.79

10

INJECTOR,FUEL

1253174

$177.13

10

O-RING-BOSCH,EV-14,UPPER, BLUE

1500198

$11.99

10

CLIP,INJECTOR CLOCKING

7670103

$3.79

10

INJECTOR,FUEL

1253174

$177.13

11

CLAMP,BAND,NARROW

7080656

Unavailable

11

CLAMP,BAND,NARROW

7080656

Unavailable

12

ADAPTER,THROTTLE BODY

1253173

Unavailable

13

RAIL,FUEL Substituted by 2520191

2520132

Unavailable

14

COLLAR,SPACER

5020971

$1.90

15

THROTTLE BODY Substituted by 1253233

1253172

Unavailable

16

GASKET,AIRBOX/THROT.BODY

1253210

Unavailable

17

Sensor, Air Temperature (See Electrical Pg.)

-------

Unavailable

18

BUSHING,BREATHER,FTNG.

5411535

$6.94

18

FITTING,BREATHER,HOSE

5131939

$9.52

19

BASE,AIRBOX

5432506

Unavailable

20

SCREW

7517496

Unavailable

21

SCREW

7517495

$4.52

22

SCREW,BTNHD,M5X12

7517483

$34.99

22

SENSOR,MAP

4040078

Unavailable

22

BRKT,MAP SENSOR

5211907

$6.59

23

FILTER,AIR

7080695

Unavailable

24

STANDOFF-MALE,M5

5131966

$8.79

25

SCREW

7517594

Unavailable

26

COVER-TOP AIRBOX

5433122

$111.11

27

SCREW

7517593

$1.83

28

AIRBOX,BOTTOM

1253256

$69.84

29

STANDOFF-MALE/FEMALE,M5

5131965

Unavailable

30

SCREW,SOCHD,M6X30(10)

7517301

$2.39
