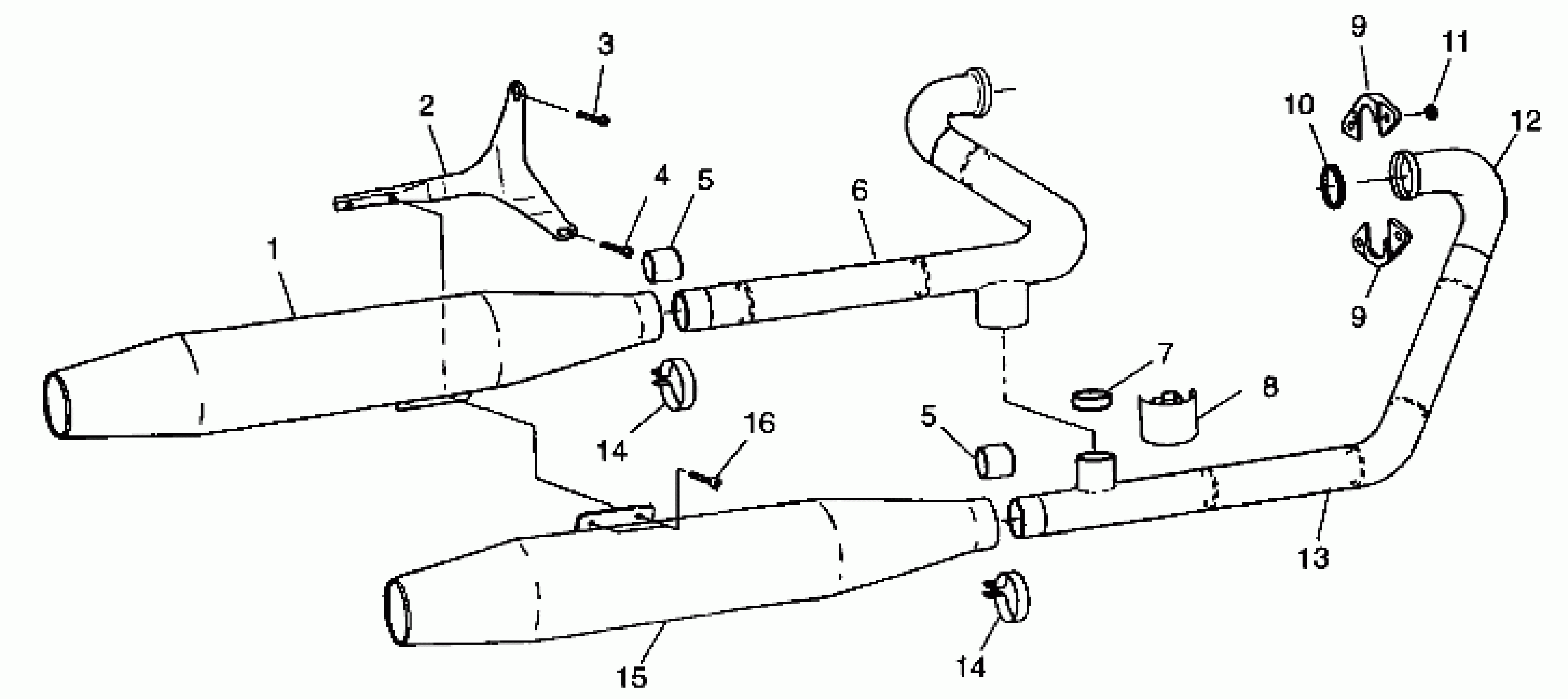

Polaris STANDARD CRUISER - V99CB15DA ENGINE, EXHAUST SYSTEM - V99CB15DB (4947594759B013) Diagram

#

Description
Price

1

MUFFLER,ASM.REAR,V92C (Incl. Ref.14)

1260949

$339.99

2

MOUNT,REAR EXHAUST,BLK.

5242187-067

$216.99

3

SCR-BTNHD,M8X20,0600095

7517553

$4.79

4

SCREW,(10)

7517458

Unavailable

5

GASKET,EXHAUST,MUFFLER

5811770

Unavailable

5

GASKET,EXHAUST,MUFFLER

5811770

Unavailable

6

EXHAUST,PIPE REAR,V92C (Incl. Shield)

1260954

$484.99

7

GASKET,EXHAUST,CROSSOVER Substituted by 5811829

5811769

Unavailable

8

CLAMP,CROSSOVER,V92C

7080835

$30.71

9

FLANGE,EXH,TOP/BOTTOM

5131916

$77.99

9

FLANGE,EXH,TOP/BOTTOM

5131916

$77.99

10

GASKET,EXH.SEALING

5211770

Unavailable

11

NUT,SS.

7546805

Unavailable

12

EXHAUST,PIPE,FRONT,V92C (Incl. Shield)

1260953

Unavailable

13

CLAMP,EXH,HEATSHIELD

7080774

Unavailable

14

CLAMP,MUFFLER

7080834

$43.29

14

CLAMP,MUFFLER

7080834

$43.29

15

MUFFLER,ASM.FRNT,V92C (Incl. Ref.14)

1260951

$329.99

16

SCREW,SOCHD,M8X20

7516738

Unavailable
