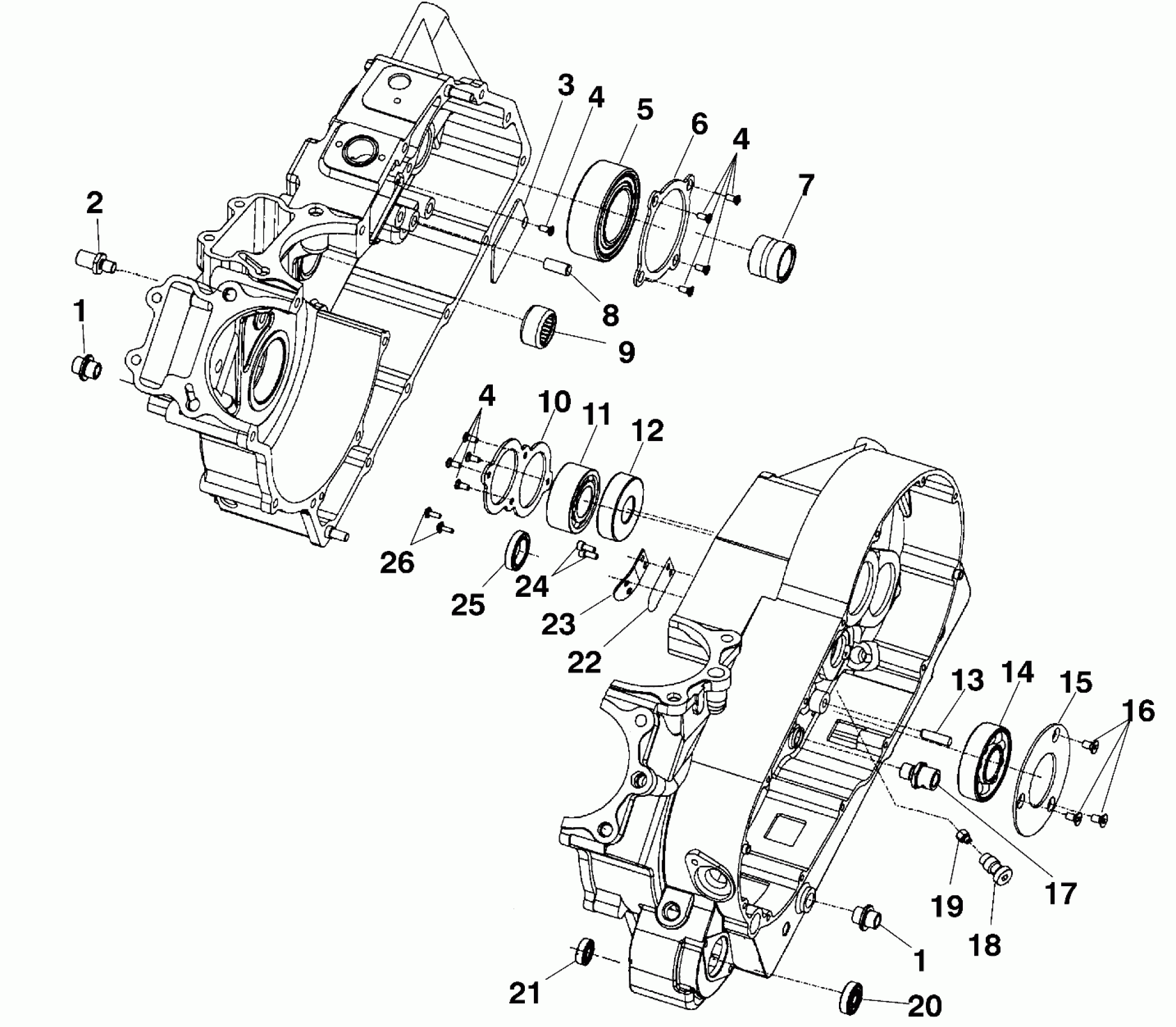

Polaris STANDARD CRUISER - V99CB15DA ENGINE, CRANKCASE BEARINGS - V99CB15DB (4947594759C004) Diagram

#

Description
Price

1

MOUNT.TOPHAT,ENGINE

5020953

$7.14

1

MOUNT.TOPHAT,ENGINE

5020953

$7.14

2

ADAPTER-CAM CHAIN GUIDE

5010430

$9.84

3

PLATE,BREATHER BAFFLE [No Longer Available]

5131792

Unavailable

4

SCREW,FLHD,M5X12

7517255

$7.19

4

SCREW,FLHD,M5X12

7517255

$7.19

4

SCREW,FLHD,M5X12

7517255

$7.19

5

BEARING,ANGULAR

3513515

Unavailable

6

PLATE,BRG.RETAIN,MAINSHAFT

5211817

$10.81

7

BEARING,ROLLER,28X37X30

3584007

$48.00

8

PIN, SOL,M10X15

7661020

$9.99

9

BEARING,NEEDLE

3552102

$37.99

10

PLATE,LH,BRG.RETAIN,I/C SHAFT

5211774

$10.81

11

BEARING,BALL,DOUBLE ROW

3513524

Unavailable

12

BEARING,BALL

3513512

$21.81

13

PIN,SOL,M8X30 Substituted by 7661101

7661021

$2.79

14

BEARING,BALL,30X72X19

3513525

$19.99

15

PLATE,BRG.RETAIN,BAL.SHAFT

5211773

Unavailable

16

SCREW

7517440

$6.79

17

ADAPTER,SHIFT SHAFT Substituted by 5132139

5020942

Unavailable

18

BODY,LUBRICATION

5010437

Unavailable

19

METERING,JET

5010438

$4.03

20

BEARING,BALL,10X30X9

3513518

Unavailable

21

BEARING,BALL

3514313

Unavailable

22

PLATE,REED,VALVE [No Longer Available]

5131793

Unavailable

23

PLATE,REED BACKER [No Longer Available]

5131791

Unavailable

24

SCREW,SOCHD,M5X12(10)

7517276

$7.19

25

BEARING,BALL,25X37X7

3513511

Unavailable

26

SCREW,M4X12,PNWSHRHD.

7517275

$6.19
