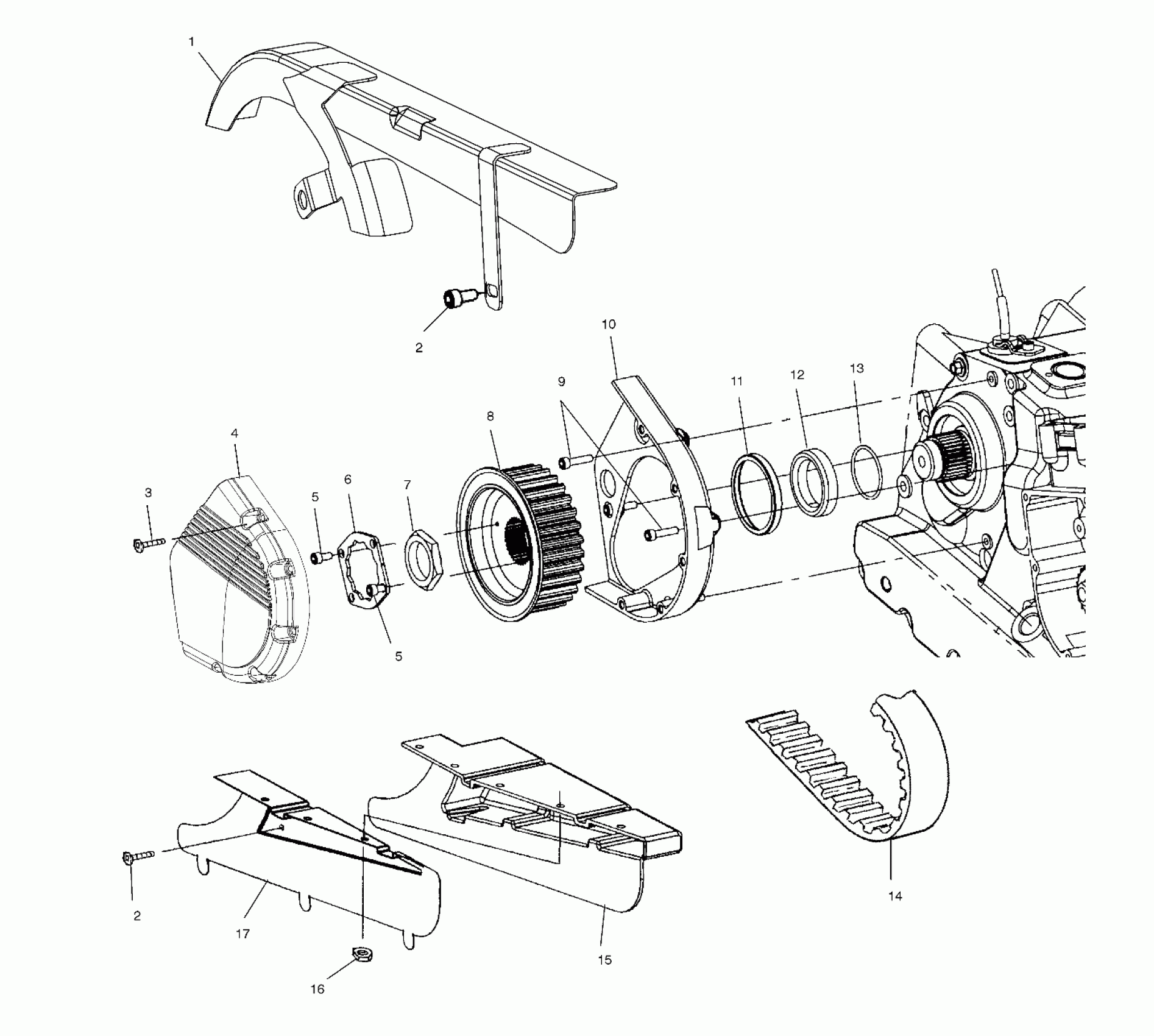

Polaris STANDARD CRUISER - V99CB15DA DRIVE TRAIN, FRONT DRIVE SPROCKET - V99CB15DB (4947594759B014) Diagram

#

Description
Price

1

GUARD,UPPER BELT Substituted by 1013117

1080010

Unavailable

2

SCREW

7517359

$4.35

2

SCREW

7517359

$4.35

3

SCREW,SOCHD,(10)

7517259

$5.56

4

COVER,SPKT,OUTER,MACH Substituted by 5132172

5131486

Unavailable

5

SCREW,SOCHD,M6X15

7517272

$7.84

5

NUT,HEX Substituted by 7547165

7547020

$24.29

5

SCREW,SOCHD,M6X15

7517272

$7.84

5

NUT,HEX Substituted by 7547165

7547020

$24.29

6

SCREW,SOCHD,M6X15

7517272

$7.84

6

WASHER,LOCK,(10)

5211876

Unavailable

7

NUT,HEX Substituted by 7547165

7547020

$24.29

7

WASHER,LOCK,(10)

5211876

Unavailable

8

SPROCKET,DRIVE,30T

5131859

Unavailable

9

SCREW,SOCHD,M6X20

7517384

$8.73

10

COVER,INNER SPKT,MACH.

5131487

$90.08

11

Seal

3610057

$27.78

12

SLEEVE,SEAL Substituted by 5132702

5131559

$49.21

13

O-Ring

3610056

$1.83

14

BELT,DRIVE,135T

3211068

$249.99

15

GUARD,BELT,BOTTOM

5242244

$77.78

16

NUT Substituted by 7547120

7547041

$5.22

17

COVER,LOW.BELT GUARD

5241892

$15.62
