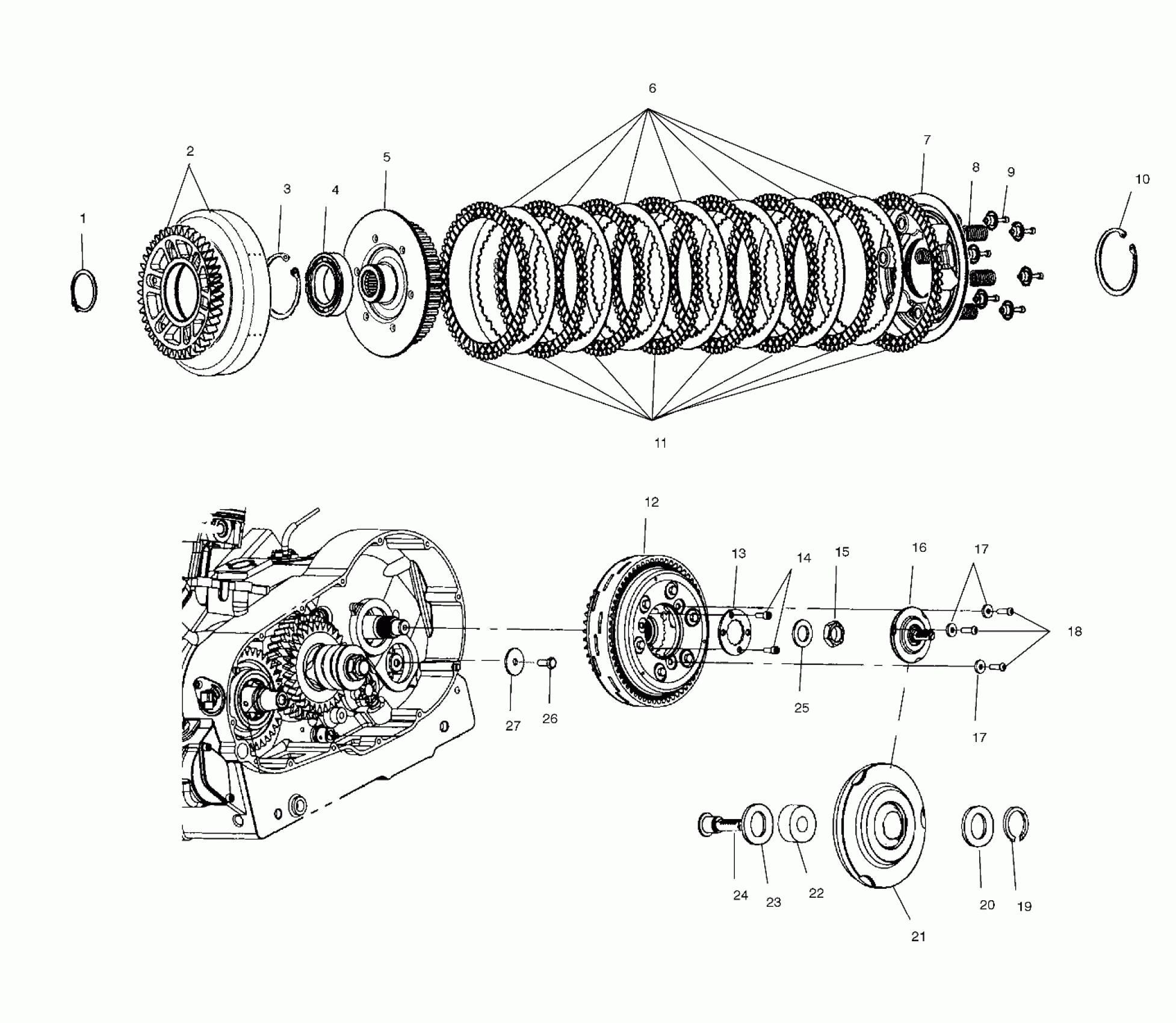

Polaris STANDARD CRUISER - V99CB15DA DRIVE TRAIN, DRIVE CLUTCH - V99CB15DA (4947594759D001) Diagram

#

Description
Price

1

RING-RTNG,EXT,EL,40,

7710483

Unavailable

2

GEAR,BASKET Substituted by 1341298

1341206

$849.99

3

RING-RTNG,INT,EL,68

7710484

Unavailable

4

BEARING-BALL,40X68X9

3514322

$25.30

5

HUB,CLUTCH Substituted by 2201466

5131435

$354.99

6

PLATE,SEPARATOR,CLUTCH

3250034

Unavailable

7

PLATE,PRESSURE

5132140

$73.81

8

SPRING,CLUTCH

7041610

$13.49

9

WASHER (10)

7556054

$11.33

9

SCREW (10)

7516411

$0.68

10

RING,RETAINING,EXT. (10) [No Longer Available] (Hub)

7710452

Unavailable

11

PLATE,FRICTION,CLUTCH,(8)

3250033

$35.24

12

CLUTCH ASM.W/INSERT

1321709

Unavailable

13

WASHER,LOCK

5211877

$5.40

14

SCREW,SOCHD,M6X15

7517272

$7.84

15

NUT (10)

7547019

$26.17

16

INSERT ASM,RACK (Incl. 19,20,21,22,24)

1341211

$144.99

17

WASHER,FLAT(10)

7556032

Unavailable

17

WASHER,FLAT(10)

7556032

Unavailable

18

SCREW,HEXHD,M6X20

7517429

$4.76

19

RING,RETAINING,EXT.(10)

7710462

$2.17

20

WASHER,SPRING

7556019

Unavailable

21

INSERT,PRESSURE PLATE

5131433

$23.02

22

BEARING,BALL

3513517

$13.08

23

WSHR-SHIM,25.4X.46X16.7

7556075

$11.33

24

RACK,CLUTCH

6230123

$90.48

25

WASHER,HUB

5131658

$7.94

26

Screw

7517587

$2.17

27

Washer, Flat

7556139

Unavailable
