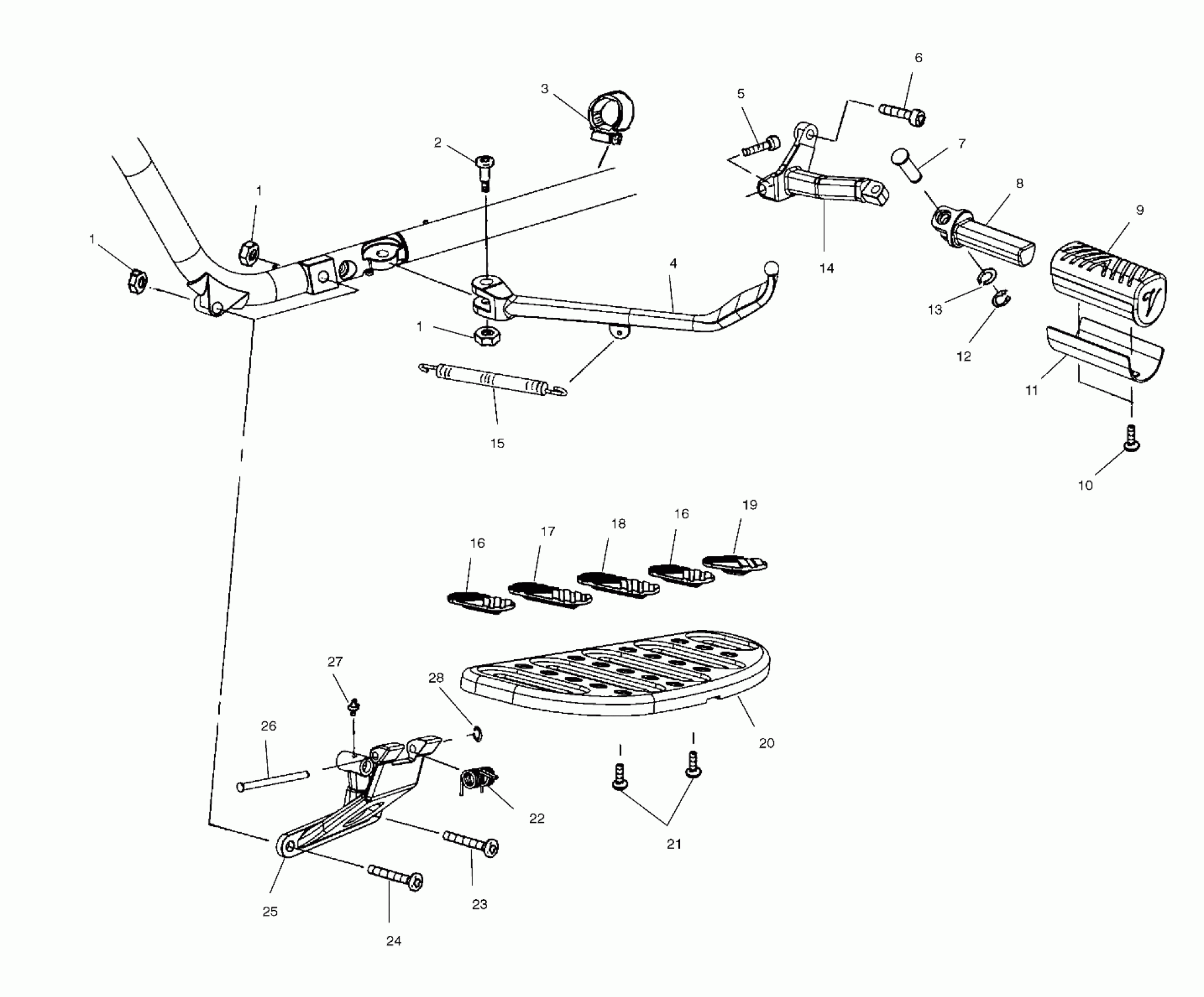

Polaris STANDARD CRUISER - V99CB15DA CHASSIS, FLOOR BOARD & SIDE STAND - V99CB15DA (4947594759A008) Diagram

#

Description
Price

1

NUT (10)

7547039

Unavailable

1

NUT (10)

7547039

Unavailable

1

NUT (10)

7547039

Unavailable

2

Screw

7517404

Unavailable

3

CLAMP-WORM GEAR,CUSHION

7080831

$7.06

4

STAND,SIDE Substituted by 1013062

5630719

Unavailable

5

SCREW,SOCHD,M10X50

7517526

$3.02

6

SCREW (LH Side Only)

7517554

Unavailable

7

PIN,PIVOT,PASS.PEG,SS

5131857

$23.41

8

FOOTPEG,PASS,LH

5630801

$65.48

8

FOOTPEG,PASS,RH

5630802

$130.95

9

PAD,FOOTPEG,PASS.

5411333

$12.30

9

PAD,RH,FOOTPEG,PASS.

5411334

$10.63

10

SCREW

7517359

$4.35

11

COVER,FOOTPEG

5242219

Unavailable

12

E-CLIP (10) Substituted by 7710493

7710475

Unavailable

13

WASHER,SPRING,SS.(10)

7556046

$4.35

14

SUPPORT-FTPGS,PASS,LH,BLK. Substituted by 5211828

5211828-067

Unavailable

14

SUPPORT-FTPGES,PASS,RH,BLK.

5211829-067

$195.99

15

SPRING-SIDESTAND

7042047

$49.99

16

PAD,F'BOARD,#1/#4

5411267

$11.51

16

PAD,F'BOARD,#1/#4

5411267

$11.51

17

PAD,F'BOARD,#2

5411268

$11.51

18

PAD,F'BOARD,#3

5411269

$11.51

19

PAD,F'BOARD,#5

5411270

Unavailable

20

FLOORBOARD,LH,MACH

5131590

Unavailable

20

FLOORBOARD,RH,MACH

5131591

Unavailable

21

SCREW,ACORN,SS.

7517350

$8.71

22

SPRING,F'BOARD SUPPORT

7041623

$27.99

23

SCREW,BTNHD,M10X55 Substituted by 7517526

7517512

$27.49

24

SCREW,BTNHD,M10X50 Substituted by 7517526

7517511

$26.99

25

FLOORBOARD,LH,LOWR,BLK Substituted by 1012877-067

1080017-067

Unavailable

25

SUPPORT-FLBRD,LWR,RH,MACH,BLK.

5131691-067

$216.99

26

PIN,LOW.F'BOARD SUPPORT

7661018

Unavailable

27

FITTING,ZERK (10)

7080773

Unavailable

28

E-CLIP,M6, DIN 6799

7710466

$3.19
