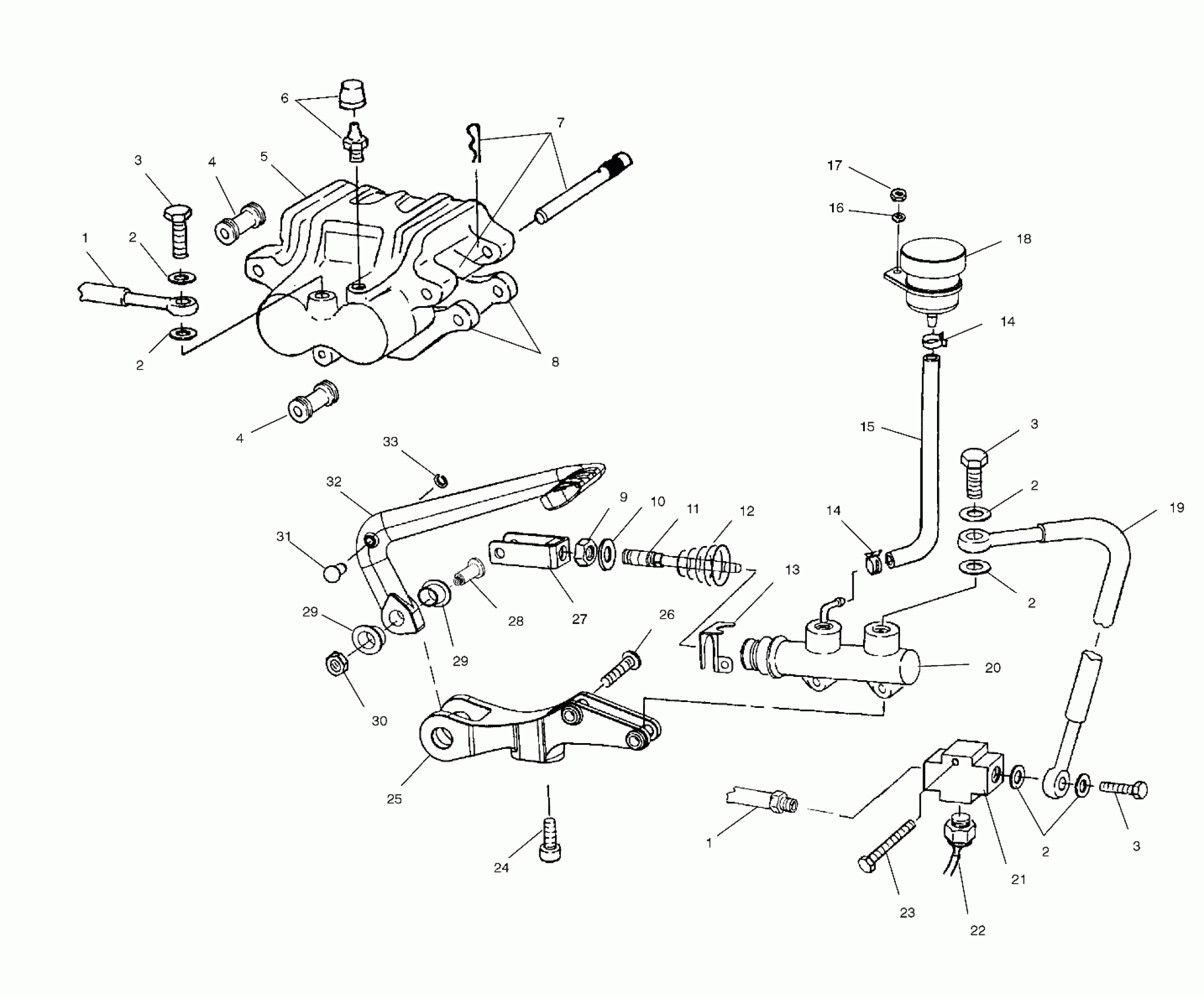

Polaris STANDARD CRUISER - V99CB15DA BRAKES, REAR - V99CB15DB (4947594759B004) Diagram

#

Description
Price

1

HOSE,R.BRAKE,R.SEGMENT

1930887

Unavailable

1

HOSE,R.BRAKE,R.SEGMENT

1930887

Unavailable

2

WASHER,BANJO,COPPER

7556028

$1.59

2

WASHER,BANJO,COPPER

7556028

$1.59

2

WASHER,BANJO,COPPER

7556028

$1.59

2

WASHER,BANJO,COPPER

7556028

$1.59

2

WASHER,BANJO,COPPER

7556028

$1.59

2

WASHER,BANJO,COPPER

7556028

$1.59

2

WASHER,BANJO,COPPER

7556028

$1.59

2

WASHER,BANJO,COPPER

7556028

$1.59

2

WASHER,BANJO,COPPER

7556028

$1.59

2

WASHER,BANJO,COPPER

7556028

$1.59

3

BOLT,BRAKE,BANJO,SPCL

1930848

Unavailable

3

BOLT,BRAKE,BANJO,SPCL

1930848

Unavailable

3

BOLT,BRAKE,BANJO,SPCL

1930848

Unavailable

3

BOLT,BRAKE,BANJO,SPCL

1930848

Unavailable

3

BOLT,BRAKE,BANJO,SPCL

1930848

Unavailable

3

BOLT,BRAKE,BANJO,SPCL

1930848

Unavailable

4

KIT,BOOTS,R.CALIPER

2201174

Unavailable

4

KIT,BOOTS,R.CALIPER

2201174

Unavailable

5

Bracket, Rear Brake Caliper

-------

Unavailable

5

CALIPER ASM,REAR,2 PISTON

1930868

Unavailable

6

KIT,BLEEDER SCREW,BOOT

2201173

$12.99

7

KIT,PINS,RET,SPRNG,REAR

2201175

$21.81

8

KIT,BRAKE PAD,REAR

2201171

Unavailable

9

NUT,HEXHD,M8

7547075

$2.87

10

WASHER,(10)

7556045

$8.79

11

ROD,BRAKE Substituted by 5132298

5020923

$38.89

12

SPRING-BRAKE PEDAL,BLK

7041746-067

$13.49

13

BRKT,BRAKE SPRING

5242952-067

$22.99

14

CLAMP,HOSE,DBL.BAND

7080785

$8.71

14

CLAMP,HOSE,DBL.BAND

7080785

$8.71

15

HOSE,REAR BRAKE Substituted by 8450082-41

8450082

Unavailable

16

SPACER,HEADED,(RATCHET) [No Longer Available]

5020919

$2.89

17

NUT,FLEXLOC,M4 Substituted by 7547118

7547073

Unavailable

18

RESERVOIR,R.MASTER CYL.

1930882

Unavailable

19

HOSE,R.BRAKE,FR.SEGMENT

1930867

Unavailable

20

MASTERCYL,REAR,BMM

1930865

Unavailable

21

MANIFOLD,REAR BRAKE Substituted by 1910351

1910266

Unavailable

22

SW,PRESSURE,R.BRAKE

4110238

Unavailable

23

SCREW (10)

7516411

$0.68

24

SCREW,SOCHD,M8X20

7517410

Unavailable

25

SUPPORT,BRAKE PEDAL

5131688-067

$130.95

26

SCREW,(10)

7517391

$8.79

27

CLEVIS,ROD,BRAKE

1080038

$133.99

28

NUT (10)

7547039

Unavailable

28

SCREW Substituted by 7517715

7517576

Unavailable

29

BUSHING,PEDAL

5020904

Unavailable

29

BUSHING,PEDAL

5020904

Unavailable

30

NUT (10)

7547039

Unavailable

30

SCREW Substituted by 7517715

7517576

Unavailable

31

PIN,BRAKE LINKAGE Substituted by 7661063

7661015

Unavailable

32

PEDAL,BRAKE,MACH

5131593

Unavailable

33

E-CLIP,M4 Substituted by 7710491

7710465

Unavailable
