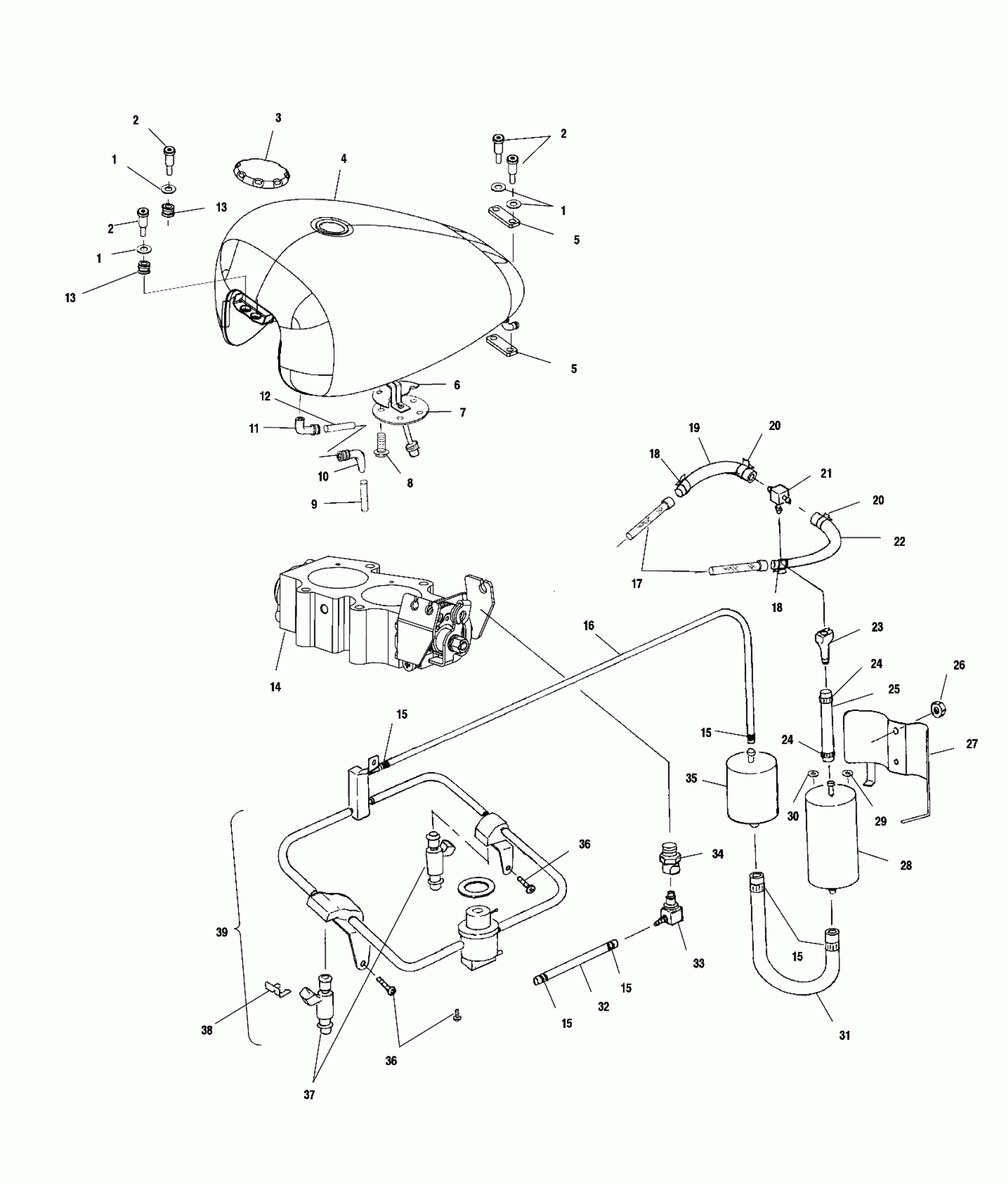

Polaris STANDARD CRUISER - V01CB15DG FUEL SYSTEM, FUEL TANK, FUEL PUMP and THROTTLE BODY - V01CB15CC (4966126612D001) Diagram

#

Description
Price

1

Washer, Flat

7556123

Unavailable

1

Washer, Flat

7556123

Unavailable

1

Washer, Flat

7556123

Unavailable

2

Screw, Socket Head

7517723

Unavailable

2

Screw, Socket Head

7517723

Unavailable

2

Screw, Socket Head

7517723

Unavailable

3

Cap, Fuel

5132333

Unavailable

4

Tank, Fuel, Black w/Gold Pin

1013342A2

Unavailable

4

Tank, Fuel, Black/Steel Gray

1013342A6

Unavailable

4

Tank, Fuel, Navy Blue/Cashmere

1013342A9

Unavailable

4

Tank, Fuel, Andares Red

1013342-265

Unavailable

5

Pad, Tank Mount, Rear

5411796

Unavailable

5

Pad, Tank Mount, Rear

5411796

Unavailable

6

Gasket, Fuel Sender

5830193

$10.63

7

Sender, Fuel Level

4010277

$172.22

8

SCREW

7517725

Unavailable

9

Line, Vent

5433958

Unavailable

10

Elbow, Vent Line

5411984

$1.83

11

Elbow, Vent Line

5411972

$1.98

12

Line, Vent

5433950

$12.30

13

Grommet, Rubber, Front

5811878

Unavailable

13

Grommet, Rubber, Front

5811878

Unavailable

14

Asm., Throttle Body

1253328

$404.99

15

Clamp, Hose

7080894

$7.14

15

Clamp, Hose

7080894

$7.14

15

Clamp, Hose

7080894

$7.14

15

Clamp, Hose

7080894

$7.14

15

Clamp, Hose

7080894

$7.14

16

Hose, Manifold/Filter

5411803

$26.98

17

Filter, Pre

2530031

Unavailable

18

Clamp, Hose

7080795

$3.81

18

Clamp, Hose

7080795

$3.81

19

Hose, Tank, RH

5411799

Unavailable

20

Clamp, Double Band Hose

7080790

Unavailable

20

Clamp, Double Band Hose

7080790

Unavailable

21

Disc-Quick, Fuel Feed, Male, Tee

2520131

Unavailable

21

O-Ring

1500199

$4.76

22

Hose, Tank, LH

5411914

Unavailable

23

Disc-Quick, Fuel Pump, Female

2520136

Unavailable

24

Clamp, Hose

7080895

$2.54

24

Clamp, Hose

7080895

$2.54

25

Hose, Quick Disc/Pump

5411801

Unavailable

26

NUT-HEX-M6X1.0 8 SPC

7547120

$4.79

27

Bracket, Fuel Pump, Top

5211889-067

Unavailable

28

Pump, Fuel

2520128

Unavailable

29

Nut

7547119

$0.90

30

Nut

7547118

Unavailable

31

Hose, Filter/Pump

5411802

Unavailable

32

Hose, Fuel, Rail/Tank Return

5411804

$34.44

33

O-Ring

1500199

$4.76

33

Disc-Quick, Fuel Line, Male

5131507

Unavailable

34

Disc-Quick, Fuel Tank, Female

5131506

$49.21

35

Filter, Fuel, High Pressure

2530028

$40.46

36

SCREW

7517405

$10.39

36

SCREW

7517405

$10.39

37

O-RING-BOSCH,EV-14,UPPER, BLUE

1500198

$11.99

37

Injector, Fuel

1253474

Unavailable

38

Clip, Injector Clocking

7670103

$3.79

39

Asm., Fuel Rail

2520191

Unavailable
