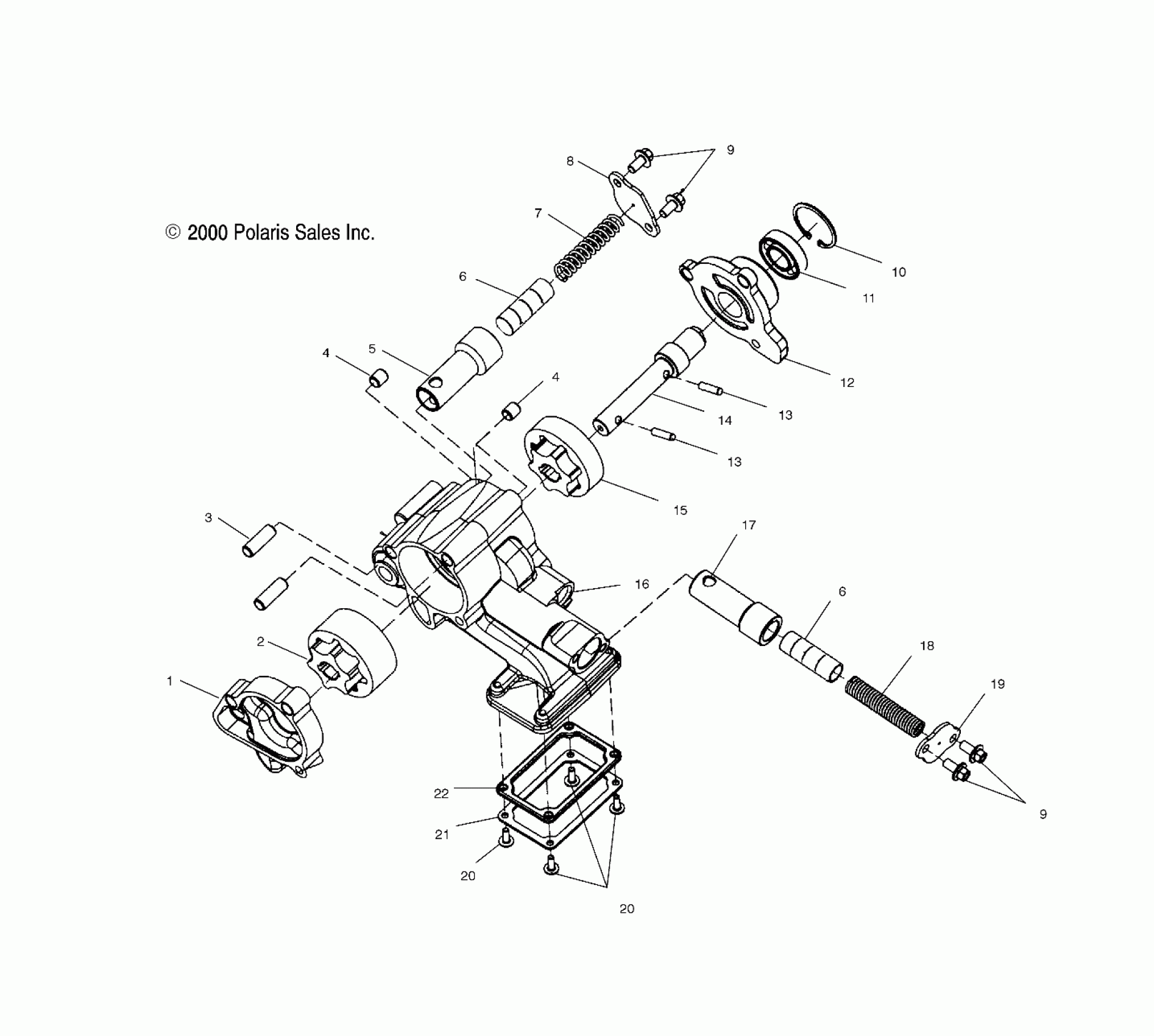

Polaris STANDARD CRUISER - V01CB15DG ENGINE, OIL PUMP - V01CB15CC (4966126612C009) Diagram

#

Description
Price

-

ASM., OIL PUMP

2540060

$589.99

1

OIL,PUMP BODY,BASE,MACHINED

5132174

Unavailable

2

ROTOR-SET,COOLING

2540065

$18.65

3

DWL,HOL,M9X26

7663014

$2.60

4

DWL-HOL,M9X10

7663007

$3.99

4

DWL-HOL,M9X10

7663007

$3.99

5

BODY,PRESS.RELIEF,COOLING

2540019

$36.83

6

PISTON,PRESS.RELIEF,COOLING

2540015

$34.44

6

PISTON,PRESS.RELIEF,COOLING

2540015

$34.44

7

SPRING,PRESS.RELIEF,COOLING

2540014

$5.71

8

PLATE,PRD.RETAINER #1

5211898

$4.92

9

SCREW,HXFLGHD,M6X12

7517257

$9.59

9

SCREW,HXFLGHD,M6X12

7517257

$9.59

10

RETAINER(10)

7710403

$2.63

11

BEARING,BALL

3513517

$13.08

12

COVER-OIL PUMP,MACH

5132169

$65.87

13

PIN,SOL 4.76X19(10)

7661065

$2.00

13

PIN,SOL 4.76X19(10)

7661065

$2.00

14

SHAFT-OIL PUMP

2540061

$78.99

15

ROTOR-SET,LUBRICATION

2540062

$33.33

16

BODY,OIL PUMP,MACH

5132291

$274.99

17

BODY,PRESS.RELIEF,LUBRICATE

2540009

$31.11

18

SPRING,PRESS.RELIEF,LUBRIC

2540018

$1.83

19

PLATE,PRD.RETAINER,#2

5211899

$2.14

20

SCREW,M4X12,PNWSHRHD.

7517275

$6.19

20

SCREW,M4X12,PNWSHRHD.

7517275

$6.19

21

PLATE-SUPPORT,OIL PUMP SCREEN

5242999

$4.92

22

SCREEN,OIL INTAKE

2540020

$9.05
