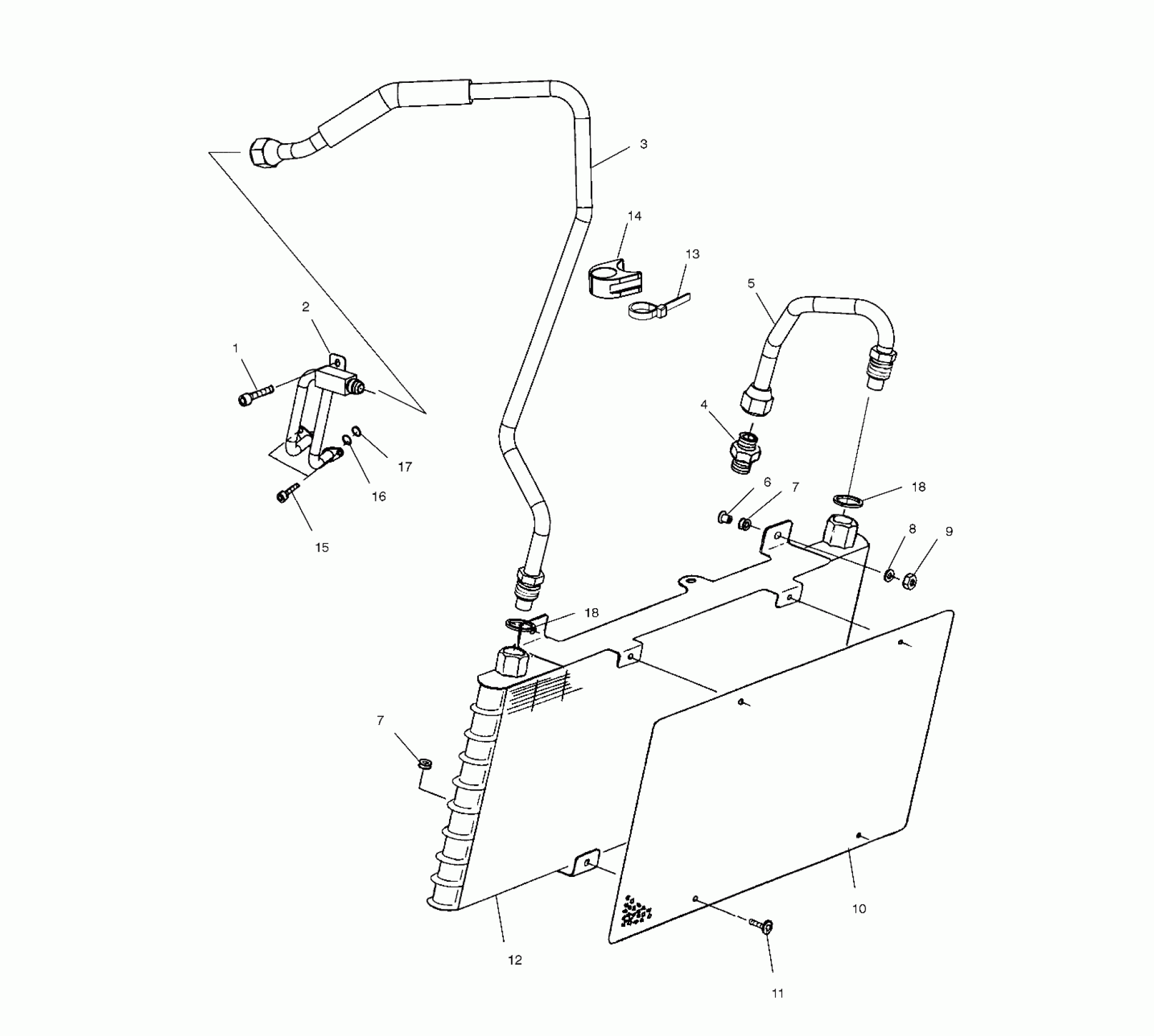

Polaris STANDARD CRUISER - V01CB15DG ENGINE, OIL COOLING - V01CB15CC (4966126612B010) Diagram

#

Description
Price

1

SCREW (10) Substituted by 7517705

7517370

$6.79

2

MANIFOLD,COOLING,OIL

2540043

$180.16

3

TUBE-FORMED,OIL INLET

5333908

$123.02

4

FITTING,OIL LINE,ENGINE

7052186

Unavailable

5

TUBE-FORMED,OIL OUTLET

5333909

Unavailable

6

SLEEVE,COOLER MOUNT

5010474

$6.37

7

GROMMET-OIL COLLER

5411579

$3.97

7

GROMMET-OIL COLLER

5411579

$3.97

8

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22

9

NUT-HEX-M6X1.0 8 SPC

7547120

$4.79

10

GUARD,COOLER,11 ROW

5243033

$77.78

11

Screw

7517573

$1.98

12

COOLER-OIL

1240070

Unavailable

13

CABLE TIE,(10)HVY DUTY8-7/8"

7080906

$6.79

14

RUBBER-MOUNT,OIL HOSE,01

5411838

Unavailable

15

SCREW (10)

7517405

$10.39

16

WASHER(10)

7556113

$4.79

17

O-Ring

5411356

$2.39

18

O-RING,10.90X1.78,0600083(10)

5412027

Unavailable

18

O-RING,10.90X1.78,0600083(10)

5412027

Unavailable
