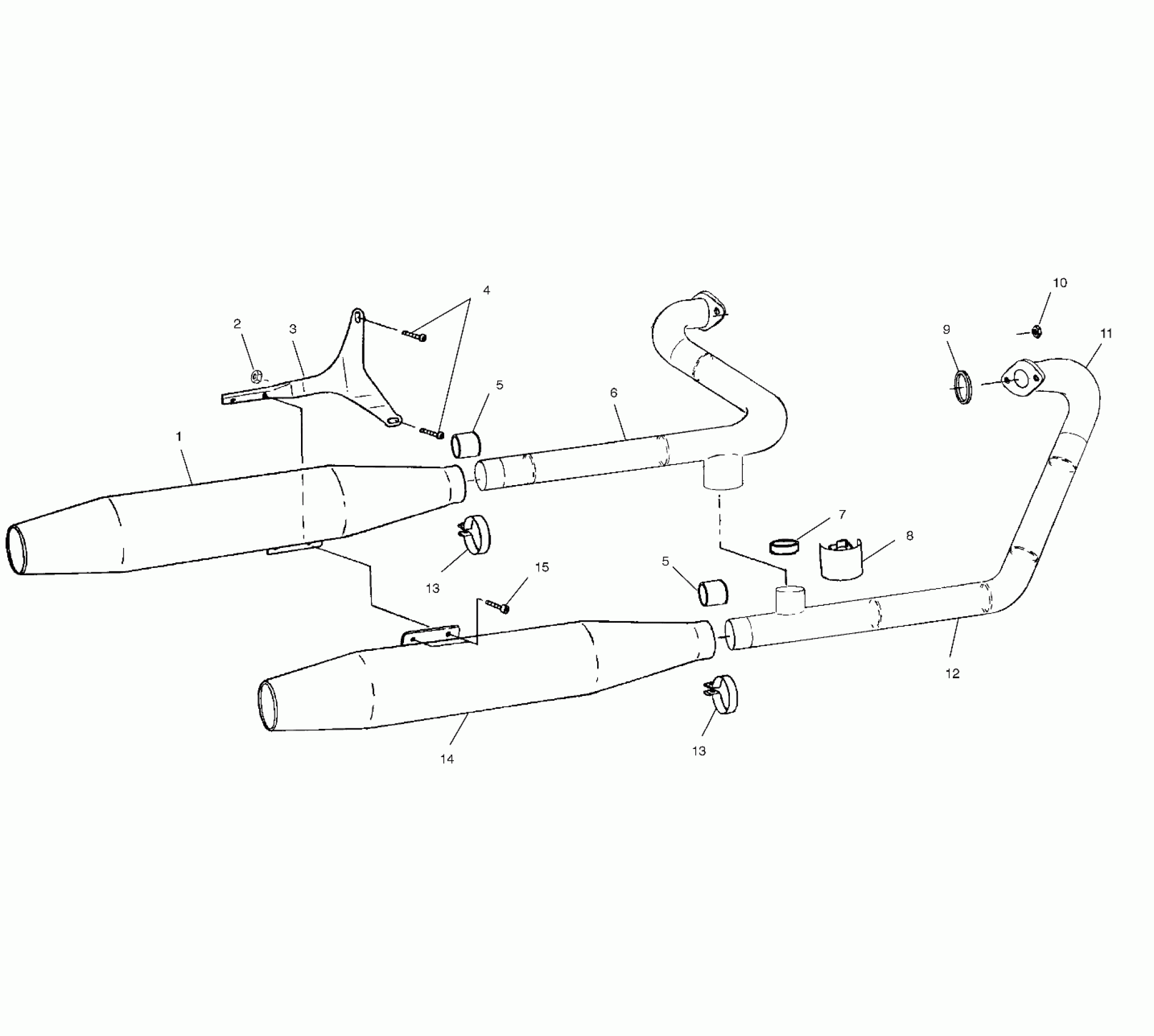

Polaris STANDARD CRUISER - V01CB15DG ENGINE, EXHAUST SYSTEM - V01CB15CC (4966126612B011) Diagram

#

Description
Price

1

MUFFLER,ASM,REAR,STD CRS (Incl. 13)

1261032

$382.99

2

NUT, Hex HD

7547121

Unavailable

3

BRACKET-EXHAUST REAR,BLK

5243514-067

$144.99

4

SCR-HXFL-M8X1.25X20 10.9 ZPB

7517838

$3.99

5

GASKET,EXHAUST,MUFFLER

5811770

Unavailable

5

GASKET,EXHAUST,MUFFLER

5811770

Unavailable

6

PIPE,ASM,EXHAUST,RR,STD CRS (Incl. Shield)

1261036

$484.99

7

GASKET,EXHAUST,CROSSOVER

5811829

Unavailable

8

CLAMP,CROSSOVER,V92C

7080835

$30.71

9

GASKET,EXH.SEALING

5211770

Unavailable

10

NUT,SS.

7546805

Unavailable

11

PIPE,ASM,EXHAUST,FRT,V92C (Incl. Shield)

1261017

$434.99

12

CLAMP,EXH,HEATSHIELD

7080774

Unavailable

13

CLAMP,MUFFLER

7080834

$43.29

13

CLAMP,MUFFLER

7080834

$43.29

14

MUFFLER,FRONT,STD CRS (Incl. 13)

1261033

$471.41

15

SCREW,SOCHD,M8X25

7517524

$4.35
