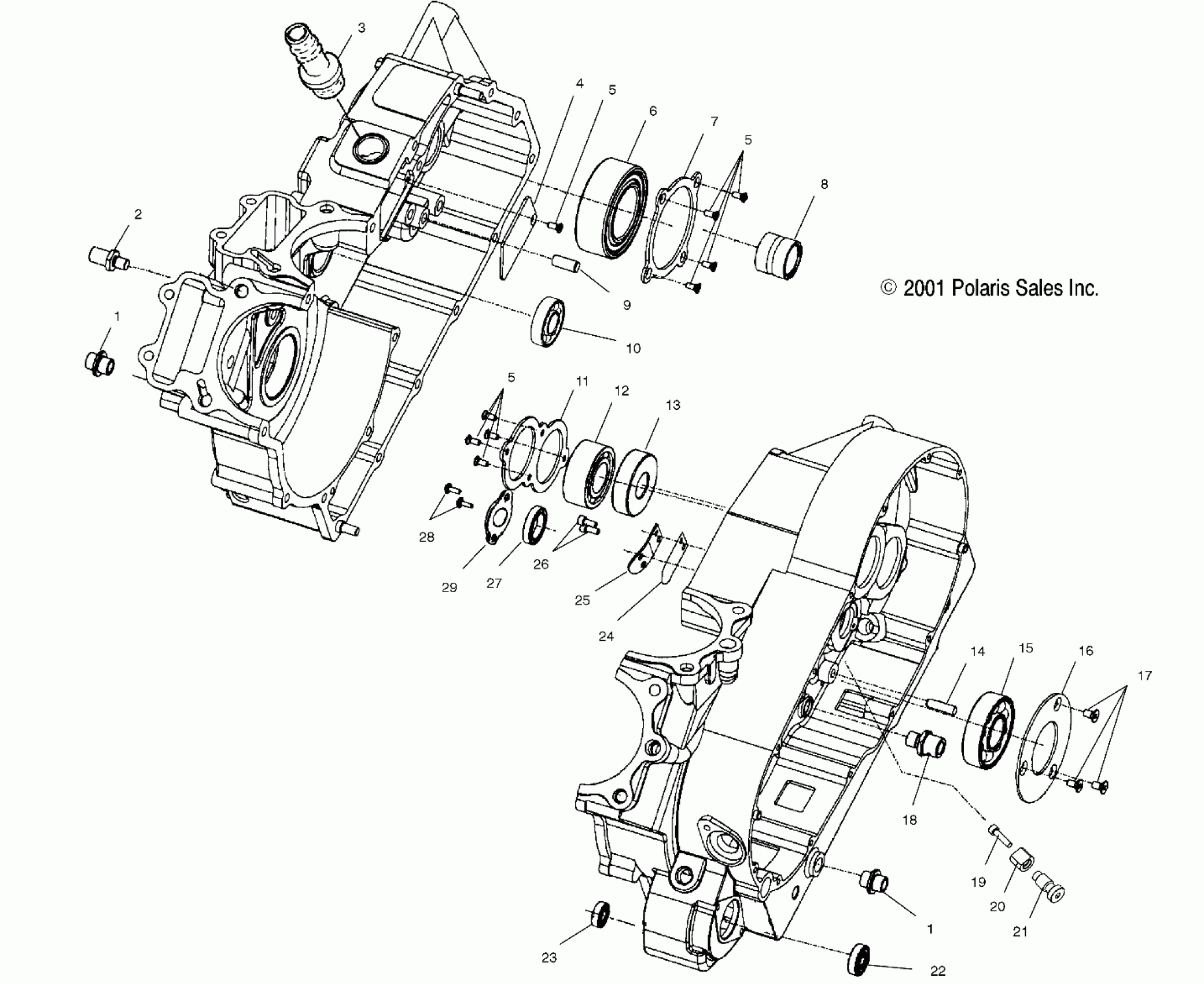

Polaris STANDARD CRUISER - V01CB15DG ENGINE, CRANKCASE BEARINGS - V01CB15CC (4966146614C004) Diagram

#

Description
Price

1

MOUNT.TOPHAT,ENGINE

5020953

$7.14

1

MOUNT.TOPHAT,ENGINE

5020953

$7.14

2

ADAPTER-CAM CHAIN GUIDE

5010430

Unavailable

3

FITTING-BREATHER PRESS IN

5132270

Unavailable

4

PLATE,BREATHER BAFFLE [No Longer Available]

5131792

Unavailable

5

SCREW,FLHD,M5X12

7517255

$7.14

5

SCREW,FLHD,M5X12

7517255

$7.14

5

SCREW,FLHD,M5X12

7517255

$7.14

6

BEARING,ANGULAR

3513515

Unavailable

7

PLATE,BRG.RETAIN,MAINSHAFT (Main)

5211817

$10.81

8

BEARING,ROLLER,28X37X30

3584007

$48.00

9

PIN, SOL,M10X15

7661020

Unavailable

10

BEARING,Ball

3514336

Unavailable

11

PLATE,LH,BRG.RETAIN,I/C SHAFT

5211774

$10.81

12

BEARING,BALL,DOUBLE ROW

3513524

Unavailable

13

BEARING,BALL

3513512

Unavailable

14

PIN-SOL,M8X30HARD,REF0600093

7661101

$6.10

15

BEARING,BALL,30X72X19

3513525

$19.99

16

PLATE,BRG.RETAIN,BAL.SHAFT (Balance)

5211773

Unavailable

17

SCREW

7517598

$11.33

18

ADAPTER-SHIFT SHAFT

5132139

$44.51

19

Bolt, Banjo

5137863

$117.84

20

Jet, Collar

5132784

$24.60

21

Jet, Body

5132785

$36.03

22

BEARING,BALL,10X30X9

3513518

$13.08

23

BEARING,BALL

3514313

$17.44

24

PLATE,REED,VALVE [No Longer Available]

5131793

Unavailable

25

PLATE,REED BACKER [No Longer Available]

5131791

$12.43

26

SCREW,SOCHD,M5X12(10)

7517276

$7.14

27

BEARING,BALL,25X37X7

3513511

$30.54

28

SCREW,(10)M4X12,SOCHD

7517797

$5.22

29

PLATE,RET.,SHIFT DRUM BRG Substituted by 5244506

5244477

$57.76
