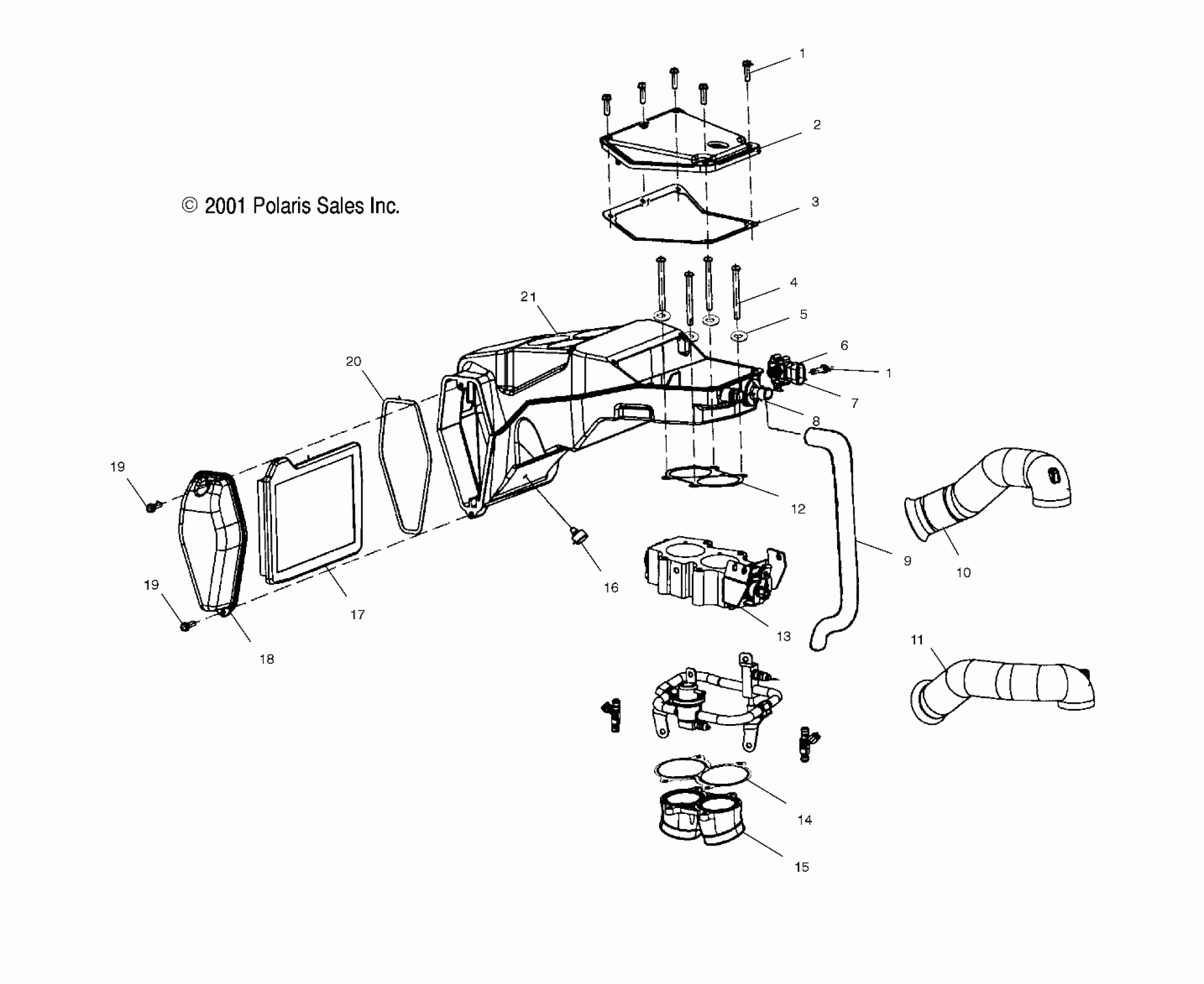

Polaris STANDARD CRUISER - V01CB15DG ENGINE, AIR BOX - V01CB15CC (4952625262C001) Diagram

SCR-HI/LOW M5.5,SPECIAL

7517842

$3.48

SCR-HI/LOW M5.5,SPECIAL

7517842

$3.48

COVER-AIRBOX

5433466

$44.99

SEAL,AIRBOX COVER

5811867

Unavailable

SCREW,BTNHD,M6X60

7517726

$1.98

WASHER-FL,6.0X0.8,0600090(10)

7556121

$1.49

Sensor, MAP (See Electrical Pg. B9, Ref. 12)

-------

Unavailable

BRKT,MAP SENSOR

5211907

$6.59

Sensor, Air Temperature (See Electrical Pg. B9, Ref. 8)

-------

Unavailable

HOSE-BREATHER

5811871

$49.21

TUBE,INTAKE,AIRBOX,RH

5433471

$25.40

TUBE,INTAKE,AIRBOX LH

5433470

$36.41

GASKET-AIRBOX

5811908

$9.52

Asm., Throttle Body (See Fuel System Pg. D2, Ref. 14)

-------

Unavailable

SEAL,THROTTLE BODY/ADAPTER

5811868

Unavailable

ADAPTER,THROTTLE BODY

1253173

Unavailable

BUMPER-RUBBER,HI-TEMP

5811869

$4.35

FILTER-AIR,FLAT

7080858

$21.81

COVER-AIR FILTER ACCESS

5433469

Unavailable

SCR,(10)PHPNH,M5X20,BLK

7517816

Unavailable

SCR,(10)PHPNH,M5X20,BLK

7517816

Unavailable

SEAL,FILTER ACCESS HATCH

5811866

$11.51

AIRBOX ASM. V92

1013056

$185.99
