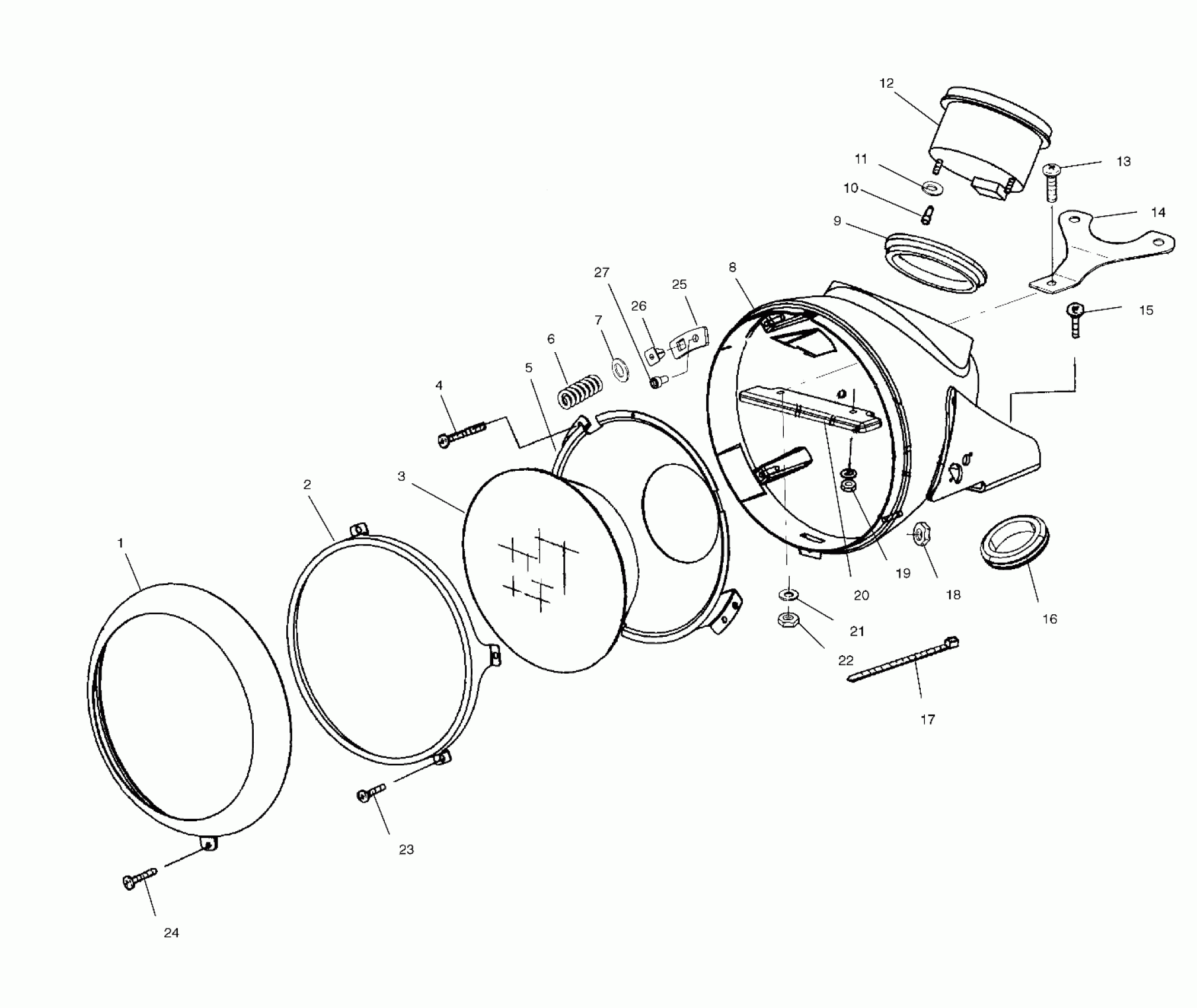

Polaris STANDARD CRUISER - V01CB15DG ELECTRICAL, HEADLIGHT - V01CB15CC (4966126612A013) Diagram

#

Description
Price

1

BEZEL,HEADLAMP

1080019

$794.99

2

RING,H/L.RETAINING

5241850

$90.99

3

HEADLIGHT,SEALEDBEAM,7 1/4"

4010160

Unavailable

4

SCREW,SOCHD,M5X10,ZPB

7517725

$4.76

5

MOUNT-HOUSING,INNER,HL

5244699

$35.24

6

SPRING-ADJUSTER HEADLIGHT(10)

7041871

$1.67

7

WASHER(10)

7556093

$2.17

8

HEADLIGHT HOUSING,ASM. (Incl. 18)

1013103

$794.99

9

Gasket, Speedometer

5811529

$17.94

10

LAMP,INDICATOR(10) Substituted by 2410102

2410195

Unavailable

11

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22

12

GAUGE,SPEEDO/TACH,ASM. Substituted by 2201994

3280333

$514.99

12

GAUGE-SPEEDO/TACH,STD,CND,01 Substituted by 2201993 (Can.)

3280351

$514.99

13

SCREW,BTNHD,M6X20

7517504

$2.60

14

BRKT,HEADLIGHT STIFFENING

5243286

Unavailable

15

SCR-SOCHD,M8X16,0600084

7517523

$5.22

16

GROMMET,H/L HSG/WIRE

5411350

$4.37

17

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

18

NUT (10)

7547126

$3.48

19

NUT-6 MM X 1.00-NYLOK-SS

7546704

$1.75

20

RETAINER,SPEEDO,BLK.

5211872-067

$58.33

21

BUSHING-7/8 X 3/8 X 16 GA-Y

7556120

$1.19

22

NUT,FLEXLOC,M6 Substituted by 7547120

7547079

$5.22

23

SCREW

7517681

$2.60

24

SCREW,SS.

7517368

$1.30

25

OFFSET-STAMPED,SS

5244616

$3.97

26

GROMMET-INSERT,NYLON

5433824

$2.54

27

SCREW (10)

7517623

$2.76
