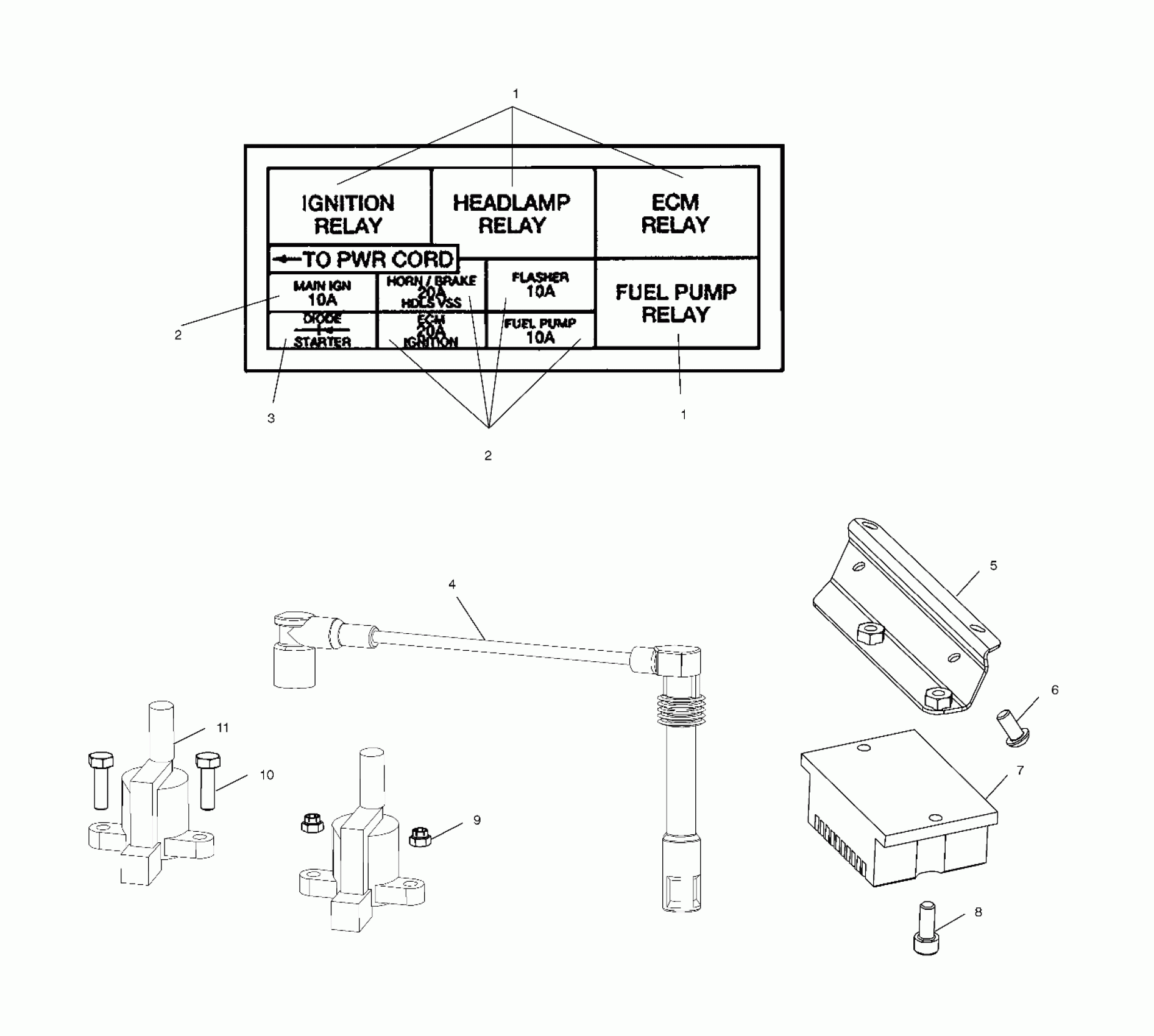

Polaris STANDARD CRUISER - V01CB15DG ELECTRICAL, HARNESSES - V01CB15CC (4966126612B008) Diagram

#

Description
Price

-

Decal - Fuse Box, 15 Amp.

7170035

Unavailable

-

Harness, Turn Signal, Rear, Right

2460692

$23.02

-

Harness, Turn Signal, Rear, Left

2460695

$23.02

-

Connector, Fender

4010153

$13.89

-

Lock, Connector

4010154

$1.35

-

Harness, Main Wire

2460983

$774.99

-

Harness, Injector

2460811

Unavailable

1

Relay, Fuel Pump

2410098

Unavailable

1

Relay, Fuel Pump

2410098

Unavailable

2

FUSE-PARK,20 AMP

2434017

Unavailable

2

FUSE-IGNITION,10 AMP

2434016

$4.79

2

FUSE-MINI BLADE,15 AMP

2410280

Unavailable

2

FUSE-PARK,20 AMP

2434017

Unavailable

2

FUSE-IGNITION,10 AMP

2434016

$4.79

2

FUSE-MINI BLADE,15 AMP

2410280

Unavailable

3

DIODE-STARTER CIRCUIT

2434019

$13.95

4

Lead, Spark Plug Wire

4010130

Unavailable

5

Bracket, Voltage Regulator

1080003-067

$29.52

6

Screw

7517739

$9.59

7

Regulator, Voltage

2410209

Unavailable

8

SCREW

7517272

$7.19

9

NUT-HEX-M6X1.0 8 SPC

7547120

$4.79

10

Screw

7517429

Unavailable

11

Coil, Ignition

4010136

Unavailable
