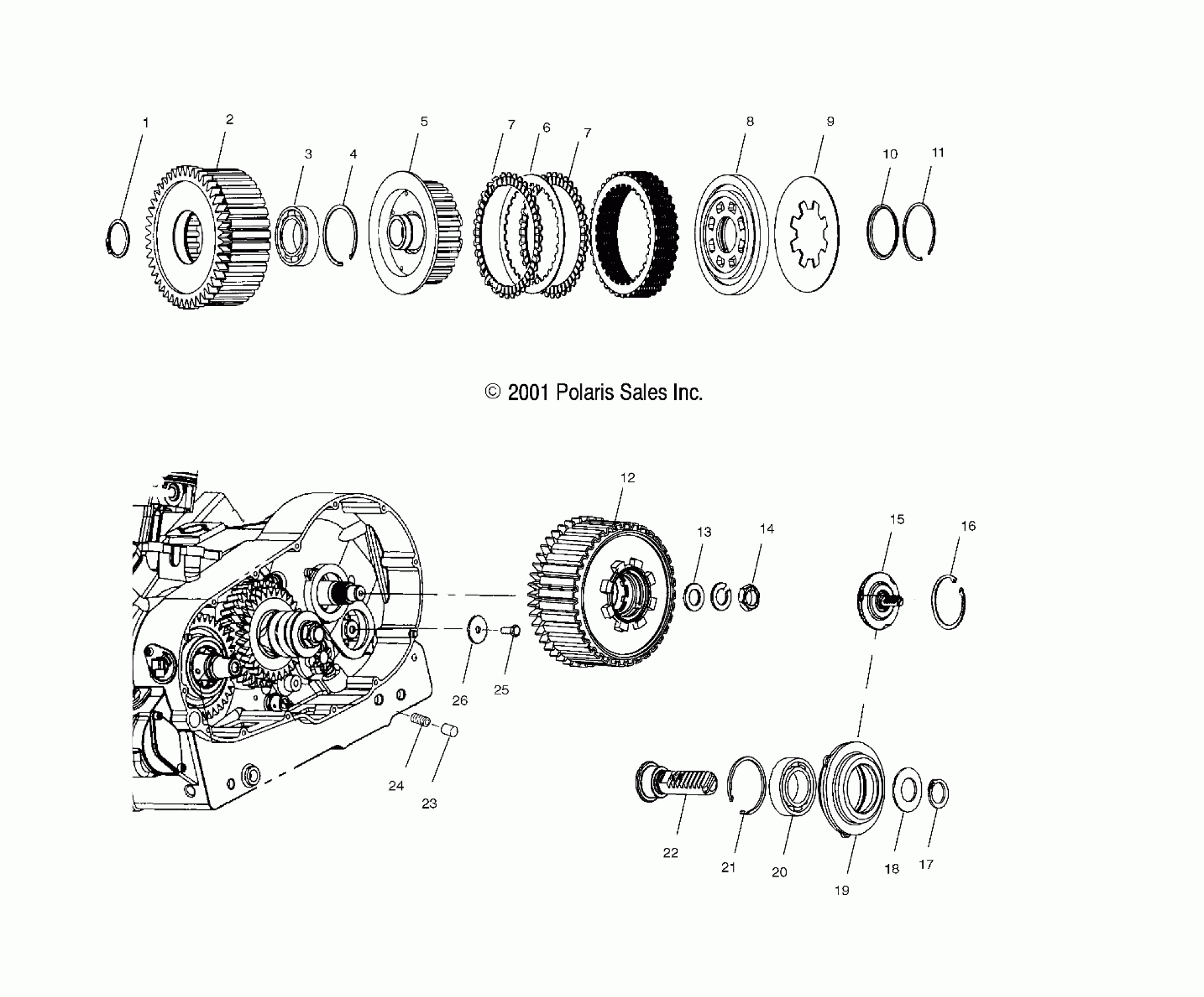

Polaris STANDARD CRUISER - V01CB15DG DRIVE TRAIN, DRIVE CLUTCH - V01CB15CC (4966126612C014) Diagram

#

Description
Price

1

CIRCLIP-EXTERNAL,40MM

7670122

Unavailable

2

ASM-GEAR/BASKET

1341348

$313.99

3

BEARING-BALL 40X68X15

3514358

Unavailable

4

CIRCLIP-INTERNAL,62MM

7670123

$23.81

5

HUB-CLUTCH,MACH

5132704

$188.10

6

PLATE-SEPERATOR,CLUTCH(9) [Order Kit, Clutch Pack 2202434][Kit includes all Plates (Ref. 6,7) per Clutch]

----

Unavailable

7

PLATE-FRICTION,CLUTCH(10) [Order Kit, Clutch Pack 2202434][Kit includes all Plates (Ref. 6,7) per Clutch]

----

Unavailable

7

PLATE-FRICTION,CLUTCH(10) [Order Kit, Clutch Pack 2202434][Kit includes all Plates (Ref. 6,7) per Clutch]

----

Unavailable

8

PLATE-PRESSURE,CLUTCH

5132703

$113.32

9

SPRING-DIAPHRAM,CLUTCH

7041944

$105.22

10

RING-SEAT,SNAP RING

7710510

Unavailable

11

CIRCLIP-INTERNAL 68MM

7670124

Unavailable

12

ASM-CLUTCH

1321898

$1,259.99

13

WASHER,HUB

5131658

$7.94

14

NUT (10)

7547019

$26.17

15

ASM-INSERT,PRESSURE PLATE/BRG (Incl. 19,20,21)

1321935

Unavailable

16

CIRCLIP-INTERNAL 49MM(10)

7710506

$1.59

17

RING-RTNG,EXT,11.9X.6,0600096

7710508

$4.35

18

WASHER-SPRING,23X1.6X12.1

7556165

$4.79

19

INSERT-PRESSURE PLATE,MACH

5132553

Unavailable

20

BEARING-BALL,17X30X7,6903

3514356

Unavailable

21

CIRCLIP-INTERNAL,30MM

7670128

$31.75

22

RACK-CLUTCH,MACH

6230196

$185.99

23

PLUG,M14X10

7051528

Unavailable

24

SCREW,SET,M10X16(10)

7517449

$4.17

25

Screw

7517587

$2.17

26

Washer, Flat

7556139

Unavailable
