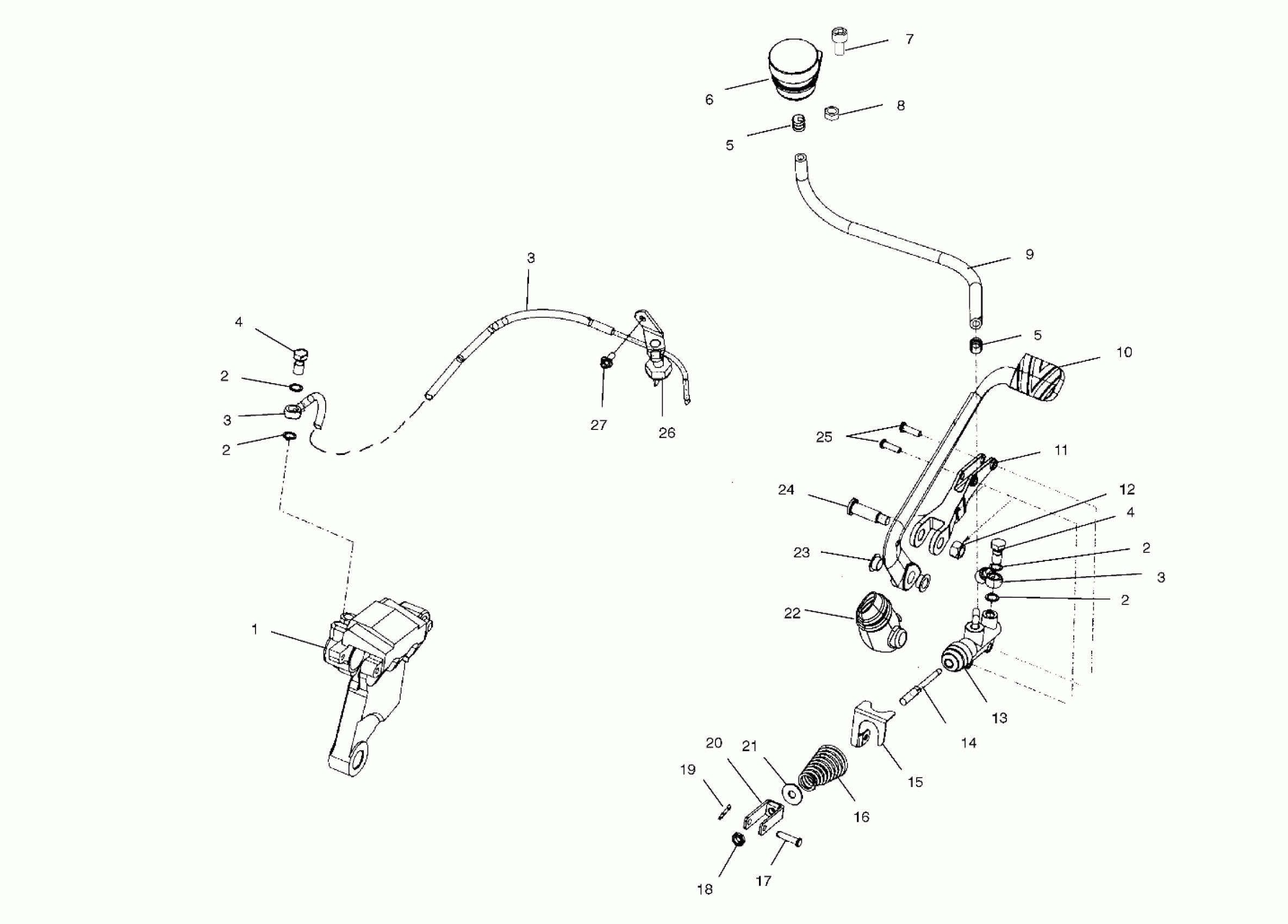

Polaris STANDARD CRUISER - V01CB15DG BRAKES, REAR - V01CB15CC (4966126612B002) Diagram

#

Description
Price

-

Kit - Brake Pad

2201171

$61.10

-

Kit - Bleeder Screw, Boot

2201173

$12.99

-

Kit - Boots, Caliper, Rear

2201174

Unavailable

-

Kit - Pin, Retainer, Spring, Clip

2201175

$21.81

1

Asm., Caliper, Rear

1910374

Unavailable

2

Washer, Copper

7556028

$1.59

2

Washer, Copper

7556028

$1.59

2

Washer, Copper

7556028

$1.59

2

Washer, Copper

7556028

$1.59

3

Hose

1910432

$70.49

3

Hose

1910432

$70.49

3

Hose

1910432

$70.49

4

Bolt

1930848

Unavailable

4

Bolt

1930848

Unavailable

5

Clamp, Hose

7080829

$0.79

5

Clamp, Hose

7080829

$0.79

6

Reservoir

1930882

Unavailable

7

SCREW

7517405

$10.32

8

Nut

7547141

$2.43

9

Hose

8450082

$3.99

10

Pedal, Brake

5132459

$188.10

11

Support, Brake Pedal

5131688-067

$130.95

12

NUT

7547039

$4.76

13

Cylinder, Master, Rear

1910396

Unavailable

14

Rod, Brake

5132298

$38.89

15

Bracket, Brake Spring Retaining

5242952-067

$22.99

16

Spring, Brake Pedal

7041746

$13.49

17

Pin, Brake

7661096

Unavailable

18

Nut

7547050

Unavailable

19

PIN, COTTER

7661094

$5.56

20

Clevis, Brake Rod

1080038

Unavailable

21

Washer, Flat

7556045

$8.73

22

Boot, Rubber

5411943

$7.94

23

Bushing

5020904

$5.22

24

Screw

7517715

$48.00

25

Screw

7515391

$4.84

26

SWITCH, PRESSURE

4010372

$35.71

27

SCREW

7517704

$7.84
