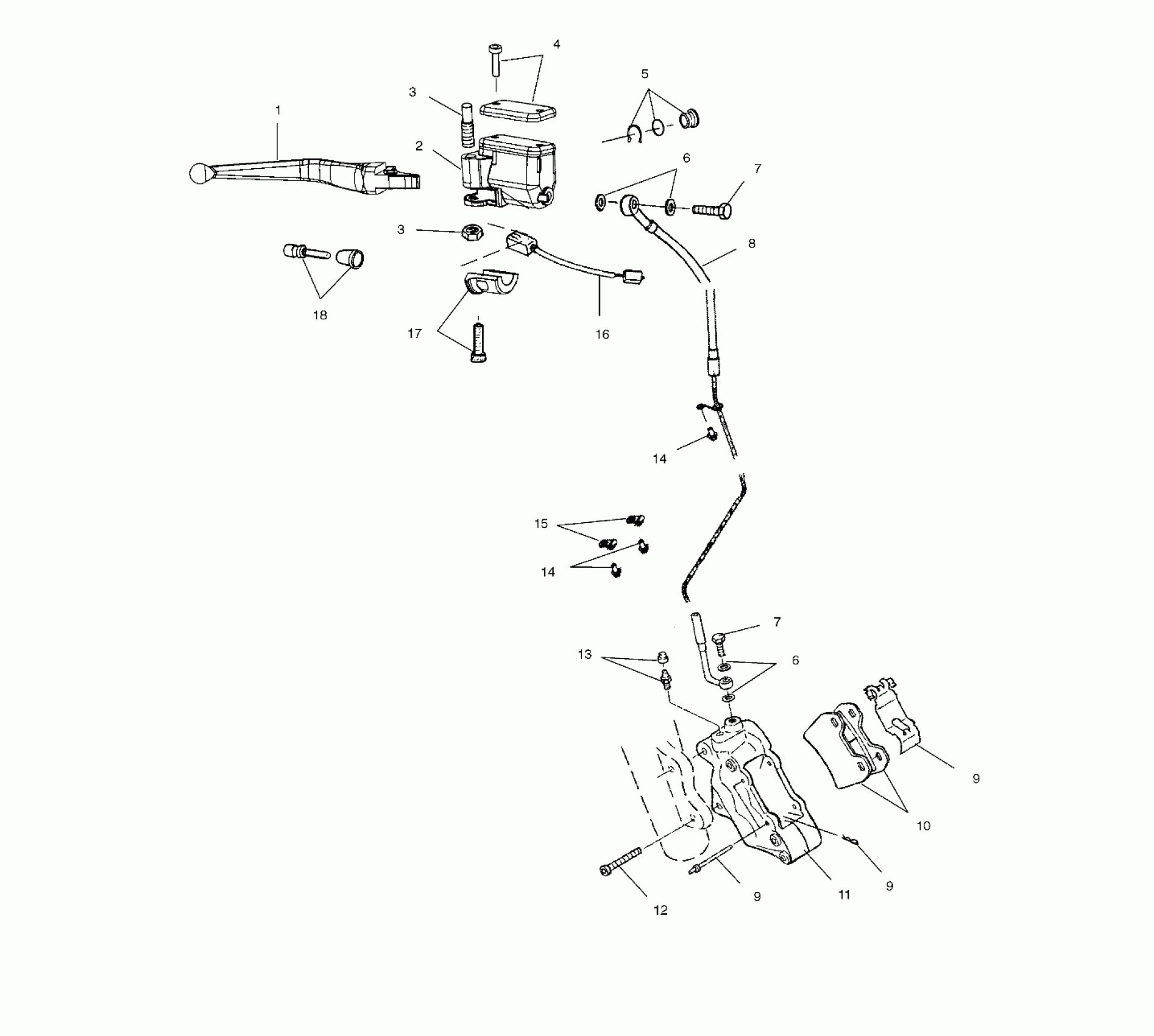

Polaris STANDARD CRUISER - V01CB15DG BRAKES, FRONT - V01CB15CC (4966126612B001) Diagram

#

Description
Price

1

LEVER-HAND,FRONT BRAKE

5131657

Unavailable

2

M.CYL ASM,F.BRAKE,14MM

2050079

$372.37

3

KIT,HDWE,FRT.M/C LEVER (Incl. Pin and Nut)

2201215

$23.13

3

KIT,HDWE,FRT.M/C LEVER (Incl. Pin and Nut)

2201215

$23.13

4

KIT,HDWE,FRT.M/C CAP (Incl. Membrane, Screws, Cap and Diaphragm)

2201216

Unavailable

5

KIT,HDWE,FRT.M/C SIGHT (Incl. O-Ring, Sight and Clip)

2201182

Unavailable

6

WASHER,BANJO,COPPER

7556028

$1.59

6

WASHER,BANJO,COPPER

7556028

$1.59

7

BOLT,BRAKE,BANJO,SPCL

1930848

Unavailable

7

BOLT,BRAKE,BANJO,SPCL

1930848

Unavailable

8

HOSE-FRT BRAKE,CRUISER,LH

1910434

Unavailable

9

KIT,PINS,CLIPS,SPRING,FRONT

2201176

$18.84

9

KIT,PINS,CLIPS,SPRING,FRONT

2201176

$18.84

9

KIT,PINS,CLIPS,SPRING,FRONT

2201176

$18.84

10

KIT,BRAKE PAD,FRONT (2 Per)

2201170

$65.46

11

CALIPER,FRT,4 PISTON,LEFT,ASM.

1930841

Unavailable

12

SCREW,SOCHD,M10X25

7517419

$8.71

13

KIT,BLEEDER SCREW,BOOT (Incl. Bleeder Fitting and Boot)

2201173

$12.99

14

SCREW

7517704

$7.19

14

SCREW

7517704

$7.19

15

CLAMP-VINYL COATED

7080942

$1.19

16

SW,STOP,MICRO,FRONT

4110242

Unavailable

17

KIT,HDWE,FRT.M/C CLAMP (Incl. Clamp and Screws)

2201217

$39.62

18

KIT,HDWE,FRT.M/C PUSHROD Substituted by 2050079 (Incl. Pushrod and Boot)

2201218

Unavailable
