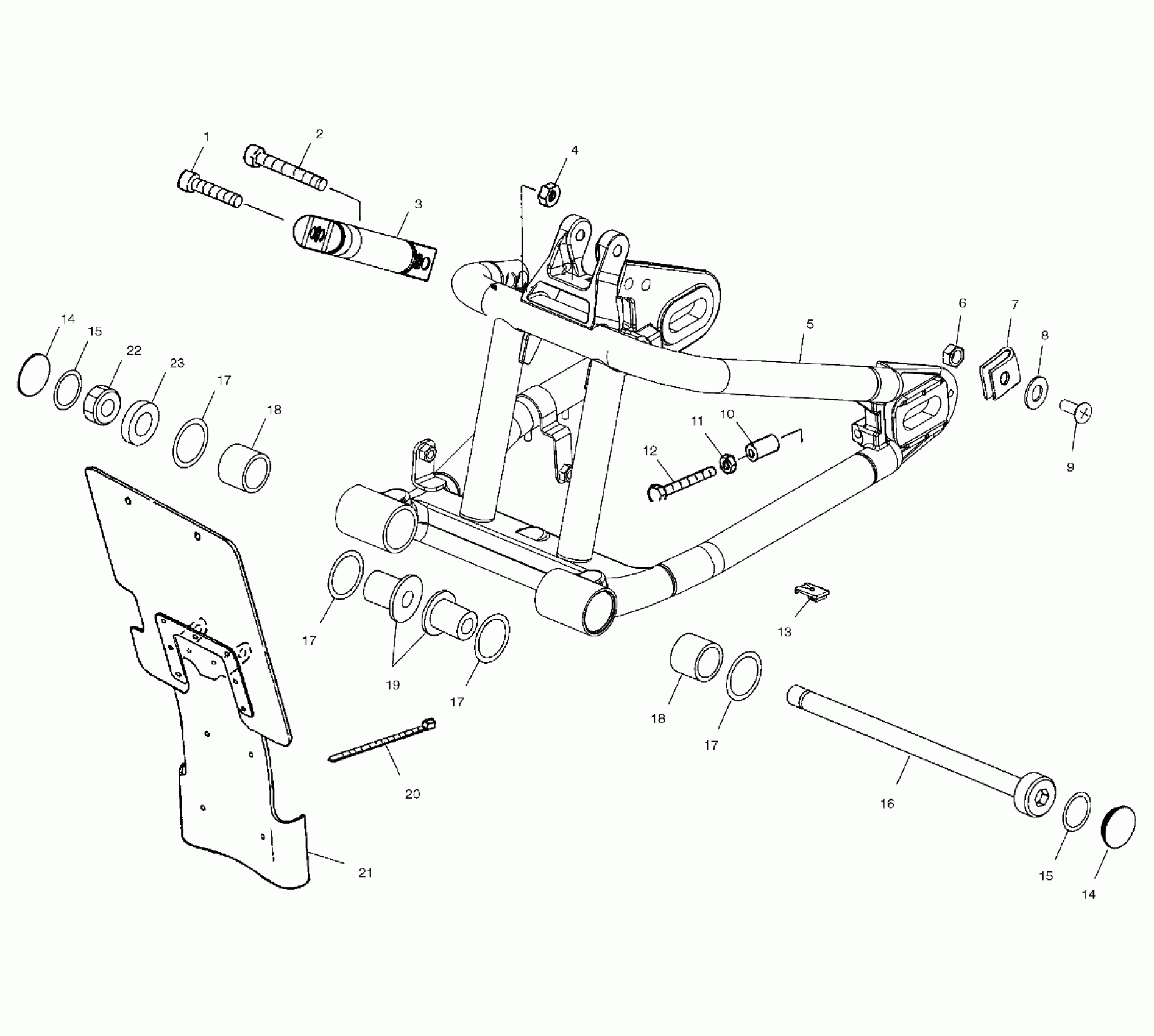

Polaris STANDARD CRUISER - V00CB15DC SUSPENSION, SWING ARM - V00CB15DC (4952565256A007) Diagram

#

Description
Price

1

SCREW

7517358

$5.59

2

SCREW (10) Substituted by 2201580

7517712

Unavailable

3

TUBE,UPPER,BLK

1080002-067

$130.95

4

NUT (10)

7547039

Unavailable

5

SWING ARM,BLK

1013001-067

Unavailable

6

NUT(10)

7547141

$2.43

7

CLIP,HOSE

5433380

$1.83

8

WASHER,FLAT,.250X.063(10)

7556148

$9.52

9

SCREW,(10)

7517391

$8.79

10

SPACER,SWINGARM ALIGNMENT

5131908

$6.37

11

NUT,HEXHD,M8

7547076

$2.60

12

SCREW (10)

7517508

Unavailable

13

CLIP,POST,FRAME

5433193

Unavailable

14

CAP,SWING ARM PIVOT

5132327

Unavailable

14

CAP,SWING ARM PIVOT

5132327

Unavailable

15

O-RING,1.8X34.9,0600083

5411522

$1.83

15

O-RING,1.8X34.9,0600083

5411522

$1.83

16

SHAFT,SW.ARM,PIVOT Substituted by 5132890

5020925

$121.43

17

O-Ring

5411367

$6.99

17

O-Ring

5411367

$6.99

17

O-Ring

5411367

$6.99

17

O-Ring

5411367

$6.99

18

BUSHING,SWINGARM

5432767

Unavailable

18

BUSHING,SWINGARM

5432767

Unavailable

19

SLEEVE,SWINGARM

5010445

$28.62

20

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

21

FENDER ASM,INNER

1012719

$288.99

22

NUT Substituted by 7547124

7547048

Unavailable

23

Washer

7556021

$7.67
