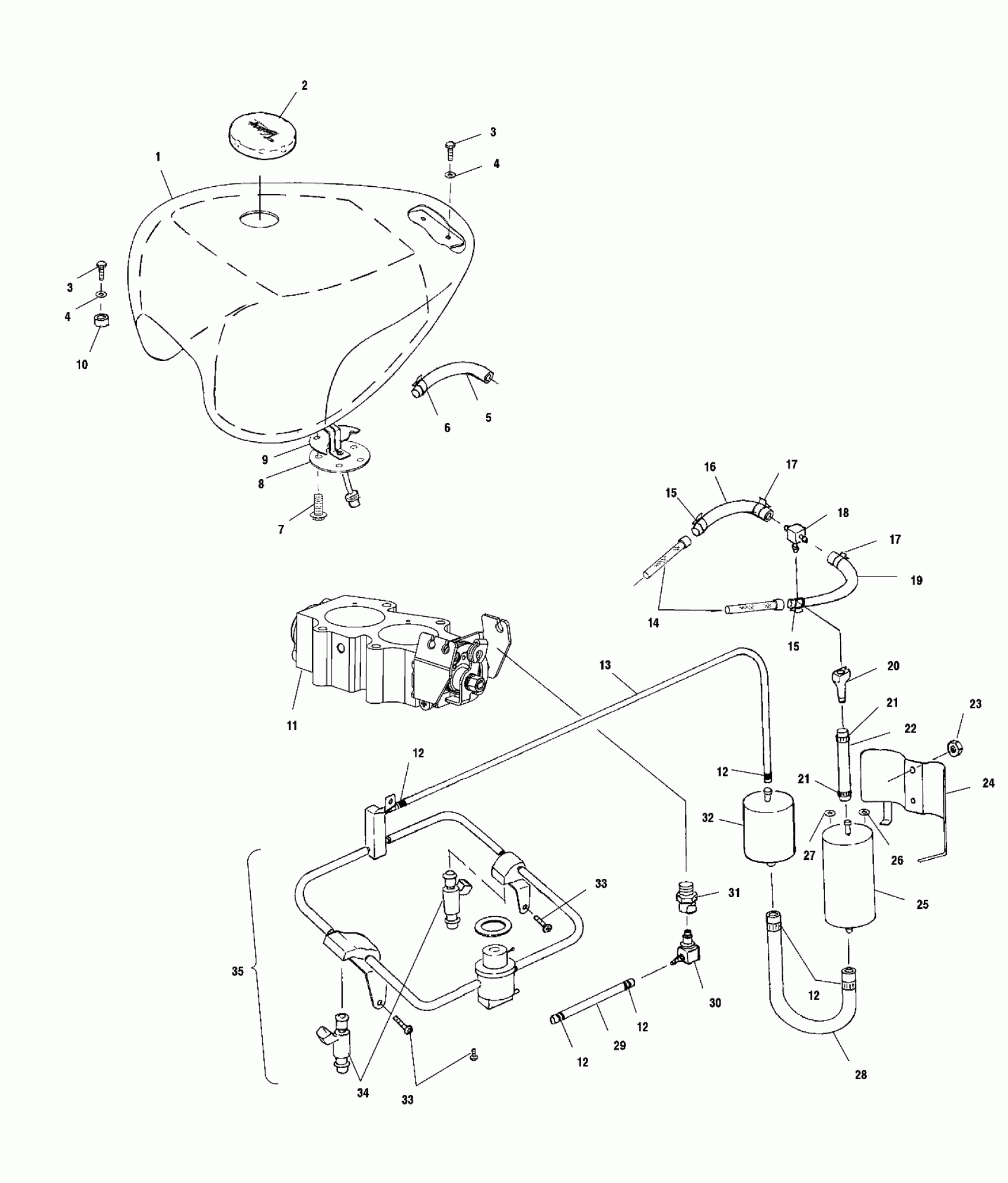

Polaris STANDARD CRUISER - V00CB15DC FUEL SYSTEM, FUEL TANK, PUMP, RAILS and THROTTLE BODY - V00CB15LE (4952565256D003) Diagram

#

Description
Price

1

TANK, FUEL, BLACK/STEEL GRAY

1013242A6

Unavailable

1

WELD-TANK,FUEL,CAL,BLK,GLD PIN Substituted by 2520253A2-SP

1013242A2

Unavailable

1

WELD-TANK,FUEL,CAL,P-301/P-266 Substituted by 2520253A4-SP

1013242A4

Unavailable

2

CAP,FUEL

5132333

Unavailable

3

SCREW

7517723

Unavailable

3

SCREW

7517723

Unavailable

4

WSHR,(10)FL,10X2

7556155

$5.22

4

WSHR,(10)FL,10X2

7556155

$5.22

5

HOSE-VENT,FUEL TANK (See Footnote) (V00CB15DC) (V00CB15DD)(V00CB15DE)

2520147

Unavailable

6

CLAMP-HOSE,.375,BLACK(10)

7080829

Unavailable

7

SCREW,SOCHD,M5X10,ZPB

7517725

Unavailable

8

SENDER-FUEL LEVEL,SMALL FLOAT

4010277

$172.22

9

GASKET-FUEL SENDER

5830193

$10.63

10

GROMMET-RUBBER,FUEL TANK,FRONT

5811878

Unavailable

11

THROTTLE BODY ASM.(49 STATE MODEL)

1253233

$440.86

12

CLAMP,HOSE,12-17MM DIA

7080894

$7.14

12

CLAMP,HOSE,12-17MM DIA

7080894

$7.14

12

CLAMP,HOSE,12-17MM DIA

7080894

$7.14

12

CLAMP,HOSE,12-17MM DIA

7080894

$7.14

12

CLAMP,HOSE,12-17MM DIA

7080894

$7.14

13

HOSE,FILTER/MANIFOLD

5411803

$26.98

14

FILTER,FUEL

2530031

Unavailable

15

CLAMP-HOSE BAND,5/8"OD UMP

7080795

$3.81

15

CLAMP-HOSE BAND,5/8"OD UMP

7080795

$3.81

16

HOSE,TANK/QUICK DISC,RH

5411799

Unavailable

17

CLAMP,HOSE,DBL.BAND

7080790

Unavailable

17

CLAMP,HOSE,DBL.BAND

7080790

Unavailable

18

QUICKDISC,FUELFEED,MALE,TEE

2520131

Unavailable

18

O-Ring

1500199

$4.76

19

HOSE,TANK/QUIK DSC,MOD,LH Substituted by 5411929

5411914

Unavailable

20

QUICKDISC,,FUELPUMP,FEMALE

2520136

Unavailable

21

CLAMP,HOSE,16-22MM DIA

7080895

$2.54

21

CLAMP,HOSE,16-22MM DIA

7080895

$2.54

22

HOSE,QUICK-DISC/PUMP

5411801

Unavailable

23

NUT-HEX-M6X1.0 8 SPC

7547120

$4.79

24

BRKT,FUELPUMP TOP,BLK

5211889-067

Unavailable

25

PUMP,FUEL

2520128

Unavailable

26

NUT, HEXHD(10)

7547119

$0.90

27

Nut

7547118

Unavailable

28

HOSE,PUMP/FILTER

5411802

Unavailable

29

HOSE,FUEL,RAIL/TANK RETURN

5411762

$34.44

30

O-Ring

1500199

$4.76

30

FUELLINE,QUICK DISC,MALE

5131507

Unavailable

31

DISC-QUICK,FUELTANK,FEMALE

5131506

$49.21

32

FILTER,FUEL,HI-PRESSURE

2530028

$40.46

33

SCREW (10)

7517405

$10.39

33

SCREW (10)

7517405

$10.39

34

O-RING-BOSCH,EV-14,UPPER, BLUE

1500198

$11.99

34

Injector, Fuel

1253174

$177.13

35

RAIL,FUEL Substituted by 2520191

2520132

Unavailable
